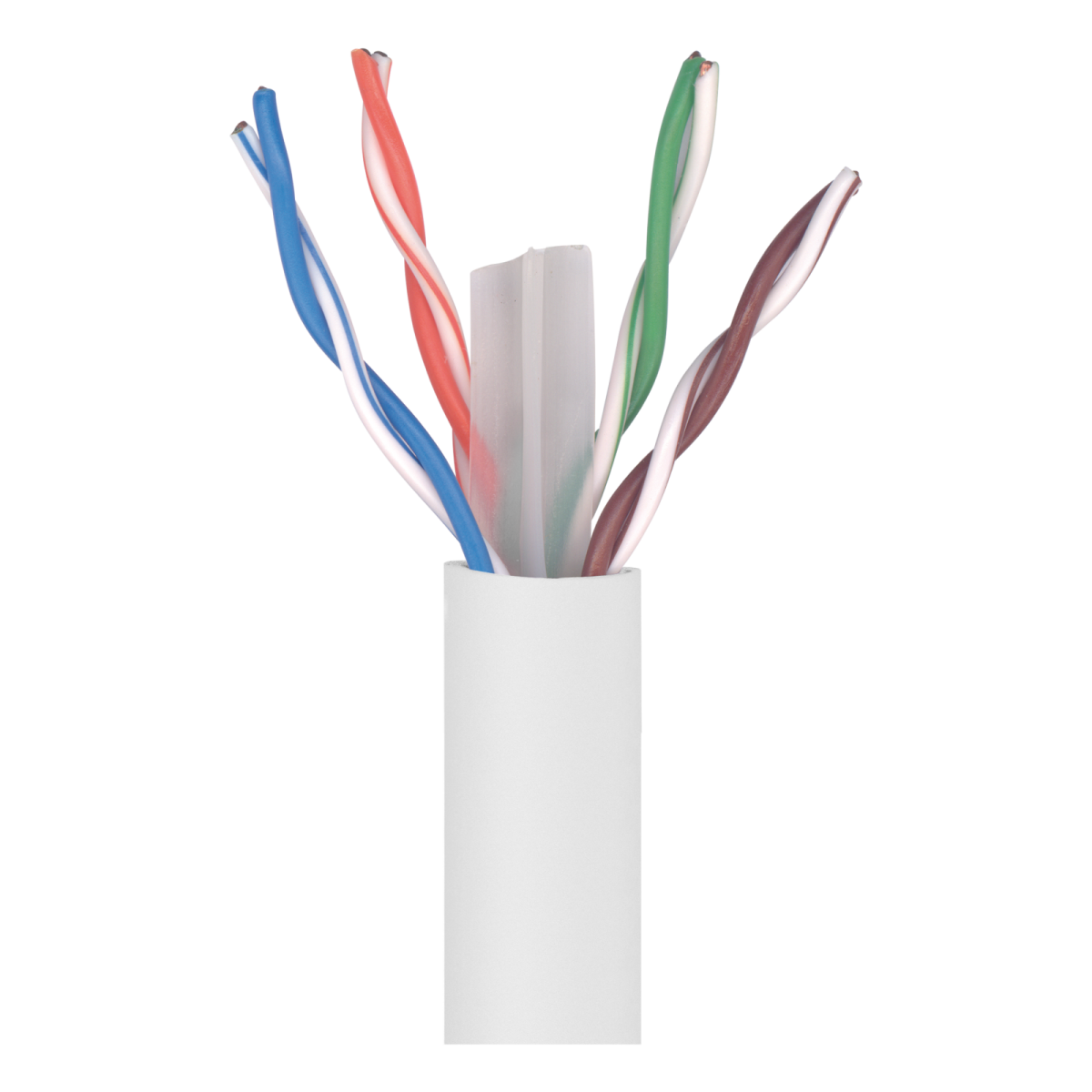

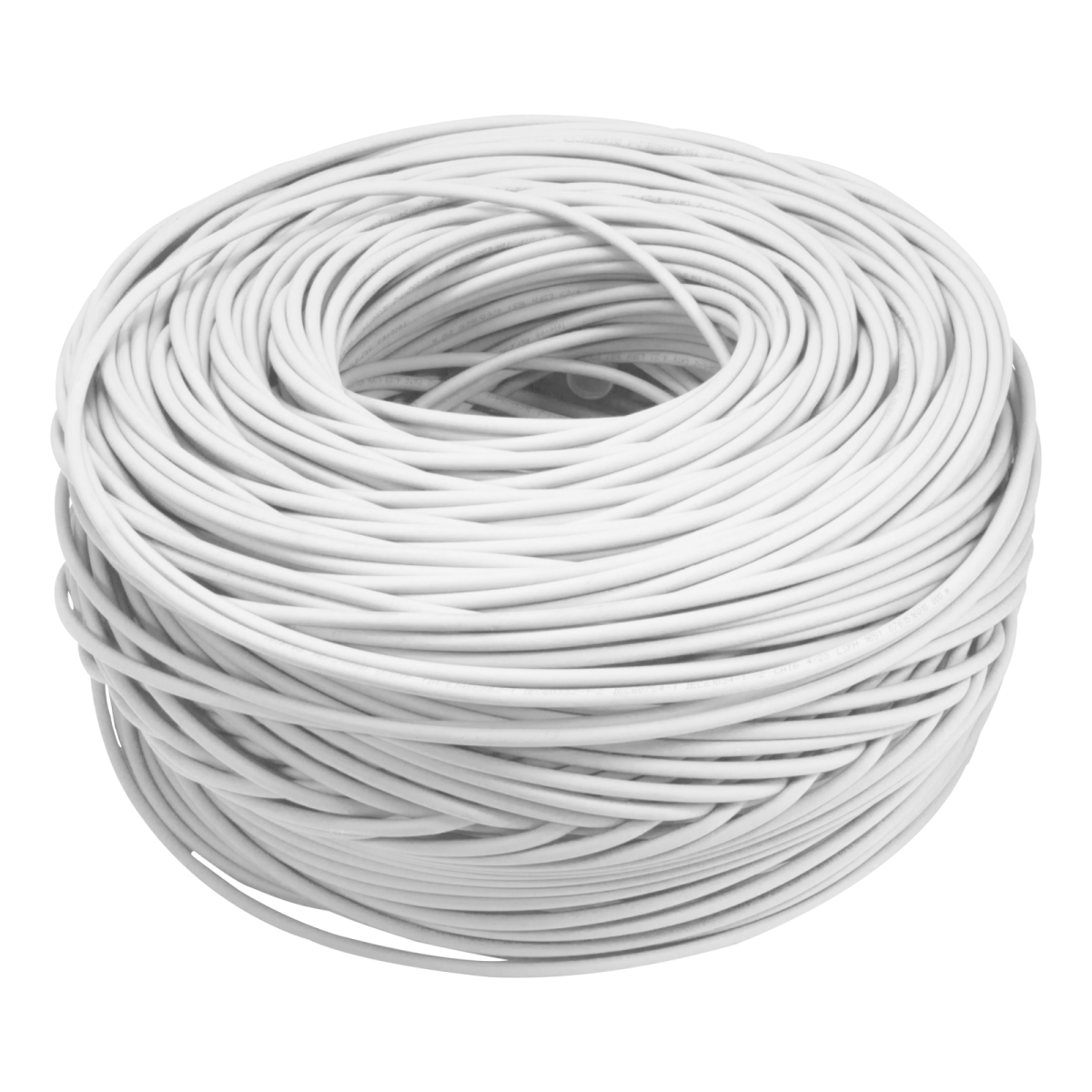

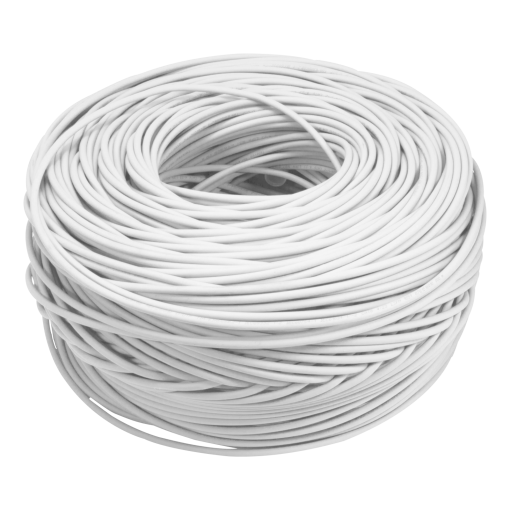

DK6000 data cable UUTP Cat 6 Fca LSFH 23AWG
Data and Communication Cable (Copper)
DK6000 data cable UUTP Cat 6 Fca LSFH 23AWG
Manufacturer Ref:
219910
Nortécnica Ref:
26219910
EAN:
8424450167915
Description
Technical Information
Attributes
EF000024
No
Nominal cross section conductor
-
Material core insulation
-
Core identification
Colour
Weight
-
Flame retardant
EV009948
Circuit integrity
-
Stranding element
Pairs
Colour outer sheath
White
Category
6
Diameter conductor
0.585
Conductor material
Copper
Screen over stranding element
None
Screen over stranding
None
Material outer sheath
Other
Conductor category
Class 1 = solid
Armouringreinforcement
-
Permitted cable outer temperature during assemblinghandling
-25
70
Permitted cable outer temperature after assembling without vibration
-25
70
Number of stranding elements
4
Protective sheath
-
Number of cores
8
Suitable for underground installation
-
Halogen free according to EN IEC 60754-2
Yes
EF003794
-
Low smoke according to EN IEC 61034-2
Yes
Stranding
-
Outer diameter approximate
-
EF008027
Yes
NVP value
72
EF009769
Yes
Oil resistant according to EN IEC 60811-404
-
EF009842
-
Conductor surface
Bare
Longitudinal water blocking cable
-
Radial water blocking cable
-
Reaction-to-fire according to EN 13501-6 Class
Fca
Reaction-to-fire according to EN 13501-6 Smoke production
-
Reaction-to-fire according to EN 13501-6 Flaming dropletsparticles
-
Reaction-to-fire according to EN 13501-6 Acidity
-
AWG size
23
Min. permitted bending radius, moving application with forced guidance
-
Min. permitted bending radius, moving applicationfree movement
-
Min. permitted bending radius, stationary applicationpermanent installation
-
Specification core insulation
Polyethylene (PE)
Specification material outer sheath
-
Material armouring
-
Cable geometry
Round
Core identification according to HD 308 S2
-
Suitable as telephone cable
Yes
Suitable as computer data cable
Yes
Suitable as signalling cable
-
Certified for shipboard application
-
Segregation class according to EN 50174-2
-
Approved type of underground installation
-
Compatible with Grade2TV according to XP-C 90-483
-
Compatible with Grade3TV according to XP-C 90-483
-
Brands
Televes
