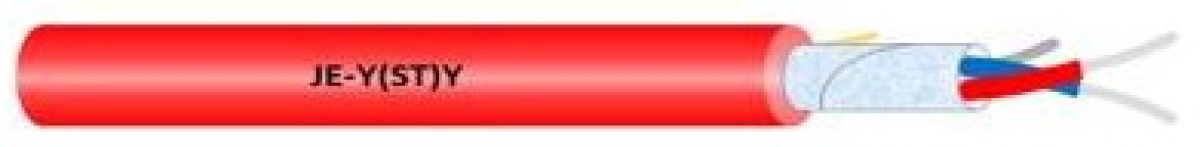

JEYSTY 2X2X08 Eca B1000 VM
Data and Communication Cable (Copper)
JEYSTY 2X2X08 Eca B1000 VM
Manufacturer Ref:
60081391
Nortécnica Ref:
EAN:
8427361623853
Description
Technical Information
Attributes
EF000024
-
Nominal cross section conductor
0,502654824574367
Material core insulation
Polyolefin
Core identification
Colour
Weight
40
Flame retardant
EV009948
Circuit integrity
EV000494
Stranding element
Other
Colour outer sheath
Red
Category
None
Diameter conductor
0,8
Conductor material
Copper
Screen over stranding element
Foil
Screen over stranding
-
Material outer sheath
Polyvinyl chloride PVC
Conductor category
Class 1 solid
Armouringreinforcement
None
Permitted cable outer temperature during assemblinghandling
-5
50
Permitted cable outer temperature after assembling without vibration
-5
50
Number of stranding elements
-
Protective sheath
None
Number of cores
2
Suitable for underground installation
-
Halogen free according to EN IEC 60754-2
No
EF003794
-
Low smoke according to EN IEC 61034-2
-
Stranding
Other
Outer diameter approximate
5,4
EF008027
-
NVP value
-
EF009769
No
Oil resistant according to EN IEC 60811-404
-
EF009842
-
Conductor surface
Bare
Longitudinal water blocking cable
-
Radial water blocking cable
-
Reaction-to-fire according to EN 13501-6 Class
Eca
Reaction-to-fire according to EN 13501-6 Smoke production
None
Reaction-to-fire according to EN 13501-6 Flaming dropletsparticles
None
Reaction-to-fire according to EN 13501-6 Acidity
None
AWG size
-
Min. permitted bending radius, moving application with forced guidance
-
Min. permitted bending radius, moving applicationfree movement
-
Min. permitted bending radius, stationary applicationpermanent installation
22
Specification core insulation
Polyethylene PE
Specification material outer sheath
Other
Material armouring
-
Cable geometry
Round
Core identification according to HD 308 S2
-
Suitable as telephone cable
Yes
Suitable as computer data cable
Yes
Suitable as signalling cable
Yes
Certified for shipboard application
No
Segregation class according to EN 50174-2
-
Approved type of underground installation
-
Compatible with Grade2TV according to XP-C 90-483
No
Compatible with Grade3TV according to XP-C 90-483
No
Brands
General Cable
Technical Sheet
