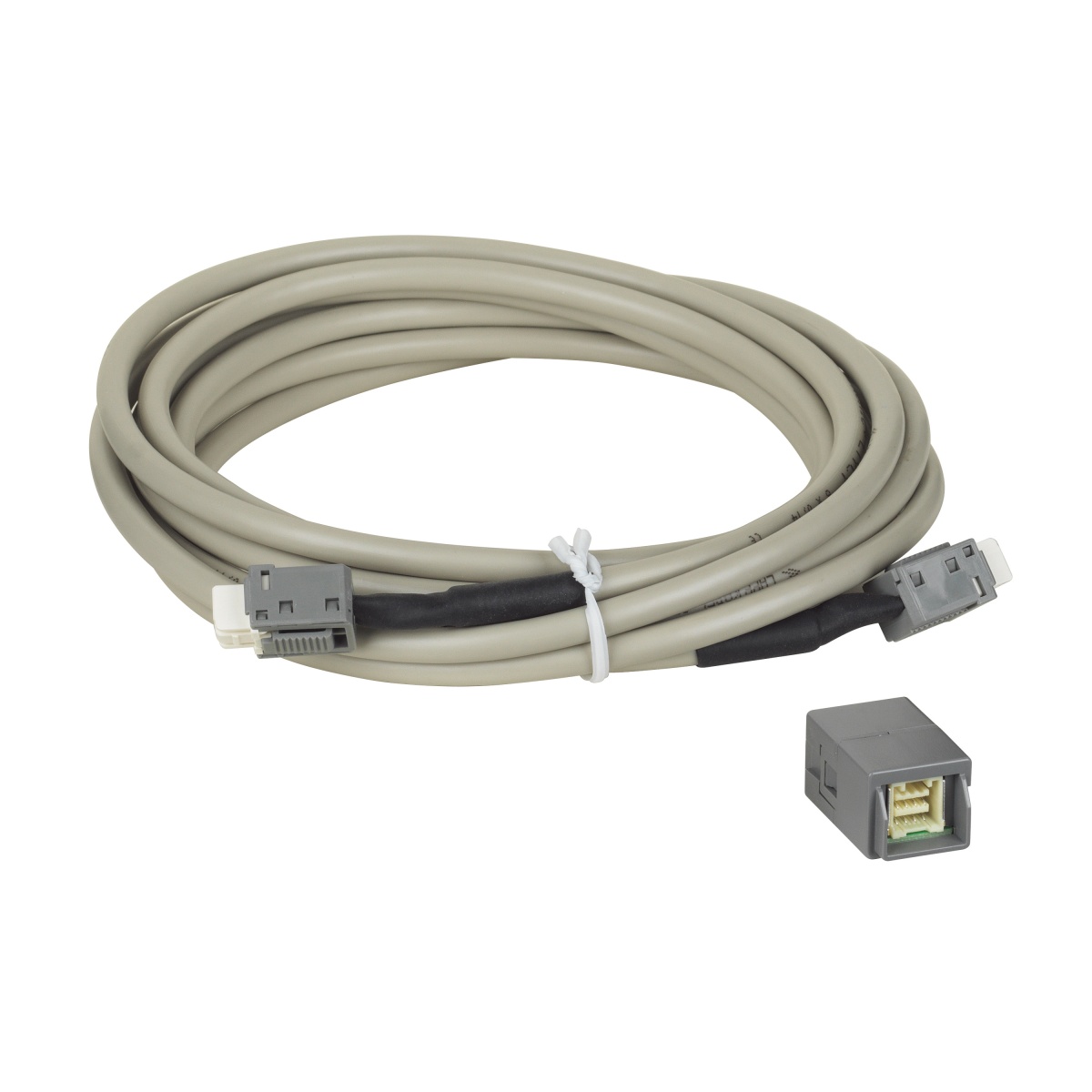

KIT EXTENSAO ROGOWSKI CT 1M
Data and Communication Cable (Copper)
KIT EXTENSAO ROGOWSKI CT 1M
Manufacturer Ref:
414916
Nortécnica Ref:
EAN:
3414971940550
Description
Technical Information
Attributes
EF000024
-
Nominal cross section conductor
0.14
Material core insulation
Rubber
Core identification
Colour
Cable type
Other
Weight
42
Drain wire
No
Nominal voltage U
-
Stranding element
No
Colour outer sheath
Grey
Category
-
Diameter conductor
0.422
Conductor material
Copper
Screen over stranding element
Braiding
Screen over stranding
Braiding
Material outer sheath
Rubber
Characteristic impedance
-
Conductor category
Class 5 = flexible
Armouringreinforcement
None
Permitted cable outer temperature during assemblinghandling
-5
70
Permitted cable outer temperature after assembling without vibration
-40
80
Number of stranding elements
7
Protective sheath
Other
Number of cores
6
Suitable for underground installation
No
Halogen free according to EN IEC 60754-2
Yes
Cable width approximate
5
Cable height approximate
5
Low smoke according to EN IEC 61034-2
-
Stranding
Bundle
Outer diameter approximate
5
With rodent protection
No
NVP value
-
Oil resistant according to EN IEC 60811-404
-
Conductor surface
Bare
Longitudinal water blocking cable
No
Radial water blocking cable
No
Reaction-to-fire according to EN 13501-6 Class
Eca
Reaction-to-fire according to EN 13501-6 Smoke production
-
Reaction-to-fire according to EN 13501-6 Flaming dropletsparticles
-
Reaction-to-fire according to EN 13501-6 Acidity
-
AWG size
Other
Min. permitted bending radius, moving application with forced guidance
-
Min. permitted bending radius, moving applicationfree movement
75
Min. permitted bending radius, stationary applicationpermanent installation
30
Specification core insulation
Other
Specification material outer sheath
Other
Material armouring
Other
Cable geometry
Round
Core identification according to HD 308 S2
No
Suitable as telephone cable
No
Suitable as computer data cable
No
Suitable as signalling cable
Yes
Certified for shipboard application
-
Max. tensile strength during installation
-
Segregation class according to EN 50174-2
-
Approved type of underground installation
Other
Flame retardant according to IEC 60332-1-2
Yes
Flame retardant according to IEC 60332-3-21 Cat A FR
-
Flame retardant according to IEC 60332-3-22 Cat A
-
Flame retardant according to IEC 60332-3-23 Cat B
-
Flame retardant according to IEC 60332-3-24 Cat C
-
Flame retardant according to IEC 60332-3-25 Cat D
-
Halogen free according to EN IEC 60754-1
Yes
Halogen free according to EN IEC 60754-3
-
Circuit integrity according to IEC 60331-23
-
Number of sheath layers
1
With rip cord
No
Suitable for use as security alarm cable
No
Duplex
No
Circuit integrity according to DIN 4102-12
-
Compatible with Grade2TV according to XP-C 90-483
No
Compatible with Grade3TV according to XP-C 90-483
No
Cable type according to BS 4737-3.30
-
Rip cord colour according to BS 4737-3.30
-
Compliant with BT British Telecom specification
-
Brands
Legrand
Technical Sheet
