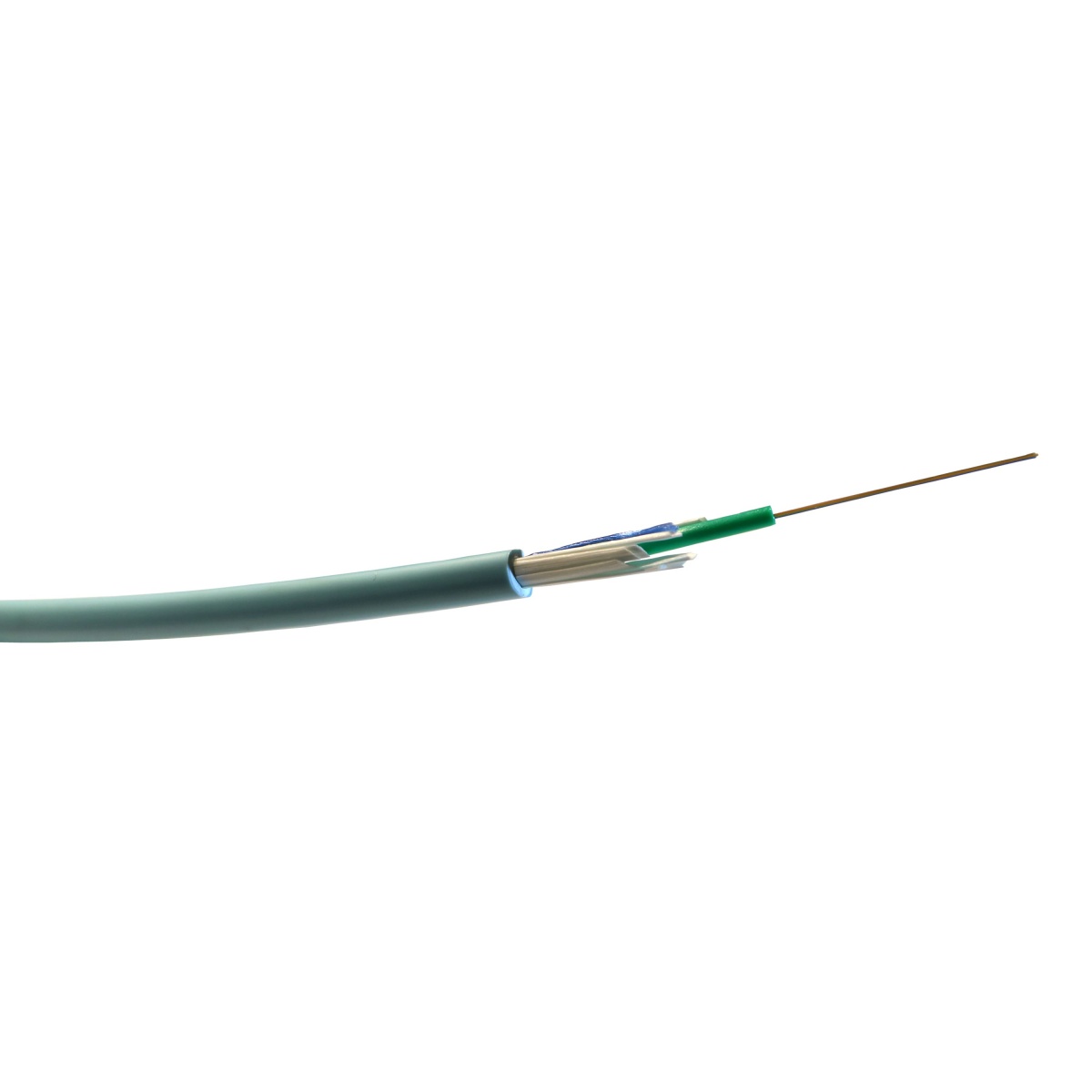

Cabos fibra ótica multímodo OM 3 interiorexterior 4 fibras proteção folgada
Fiber Optic Cable
Cabos fibra ótica multímodo OM 3 interiorexterior 4 fibras proteção folgada
Manufacturer Ref:
032537
Nortécnica Ref:
03032537
EAN:
3414970964984
Description
Technical Information
Attributes
EF000024
Yes
Fibre type
Multi mode 50/125
Weight
55
Number of fibres
4
With strain relief
No
Resistant to chemicals
No
Colour outer sheath
Turquoise
Category
OM3
Material outer sheath
Other
Type of tube
Loose tube
Number of fibres per tube
4
Cable metal free
Yes
Armouringreinforcement
-
Suitable for underground installation
No
Halogen free according to EN IEC 60754-2
Yes
Cable width approximate
7.3
Cable height approximate
7.3
Low smoke according to EN IEC 61034-2
Yes
Blow in
No
Outer diameter approximate
7.3
With rodent protection
No
Oil resistant according to EN IEC 60811-404
No
Longitudinal water blocking cable
Yes
Radial water blocking cable
Yes
Reaction-to-fire according to EN 13501-6 Class
Dca
Reaction-to-fire according to EN 13501-6 Smoke production
s2
Reaction-to-fire according to EN 13501-6 Flaming dropletsparticles
d2
Reaction-to-fire according to EN 13501-6 Acidity
a1
Min. permitted bending radius, stationary applicationpermanent installation
73
Specification material outer sheath
Other
Material armouring
-
Cable geometry
Round
Max. tensile strength during installation
3
Flame retardant according to IEC 60332-1-2
Yes
Flame retardant according to IEC 60332-3-21 Cat A FR
No
Flame retardant according to IEC 60332-3-22 Cat A
No
Flame retardant according to IEC 60332-3-23 Cat B
No
Flame retardant according to IEC 60332-3-24 Cat C
Yes
Flame retardant according to IEC 60332-3-25 Cat D
No
Halogen free according to EN IEC 60754-1
Yes
Halogen free according to EN IEC 60754-3
No
Circuit integrity according to IEC 60331-23
No
Circuit integrity according to IEC 60331-25
None
Circuit integrity according to EN 50200
None
Fibre optic cable colour coding according to S-12 Skanova standard
No
Brands
Legrand
