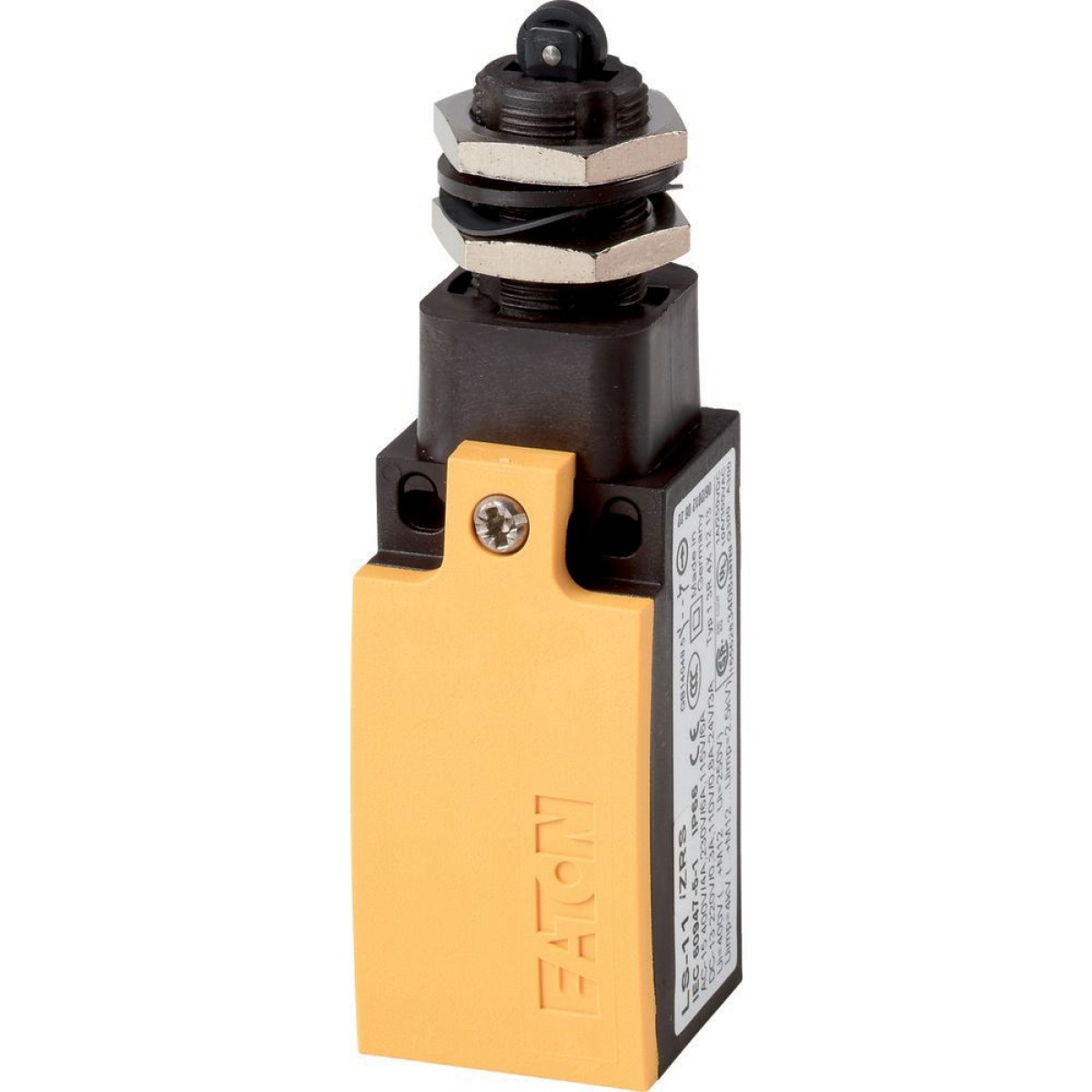

Position switch, Basic function: Operating heads, Part group reference: LS(M)-…, Product range: Roller plunger, Degree of Protection: IP66, IP67
Electromechanical and Electronic Sensors
Position switch, Roller plunger
Nortécnica Ref:
EAN:
4015081151509
Description
Technical Information
Attributes
Switching function
Quick-break switch
Corrente nominal de operação Ie em AC-15, 230 V
6
Corrente nominal de operação Ie em DC-13, 230 V
0.3
Housing material
Plastic
Suitable for safety functions
Yes
Coating housing
Other
With status indication
No
Type of interface for safety communication
None
Type of electric connection
Cable entry metrical
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Cuboid
Degree of protection IP
IP66/IP67
Forced opening
Yes
Número de contatos auxiliares de segurança
1
Type of control element
Roller cam
Type of interface
None
Output electronic
No
Corrente nominal de operação em AC-15, 125 V
6
Corrente nominal de operação em AC-15, 24 V
6
Corrente nominal de operação em DC-13, 125 V
0.8
Corrente nominal de operação em DC-13, 24 V
3
Sensor de largura
31
Sensor de diâmetro
-
Altura do sensor
61
Comprimento do sensor
33.5
Switching function latching
No
Ambient temperature during operating
-25
70
Número de contatos como contato normalmente fechado
1
Número de contatos como contato normalmente aberto
1
Número de contatos como inversores
0
Alignment of the control element
Roller cam straight
Degree of protection NEMA
Other
Brands
Manual
Descrição Longa
Position switch, Basic function: Operating heads, Part group reference: LS(M)-…, Product range: Roller plunger, Degree of Protection: IP66, IP67
