The window contact is used for monitoring windows and doors. The window surface mounting contact is attached to the window or door frame and the magnet on the moving part of the window (window - door leaf). The evaluation of the signal is only carried out via the binary input 2x signal contact (265627) in mode 2. The use with binary input 2x230VAC is NOT permitted!!! The fixing is carried out using adhesive strips and / or screw fixings (bot included as standard).
Alarm Systems, Emergency Calls and Signaling

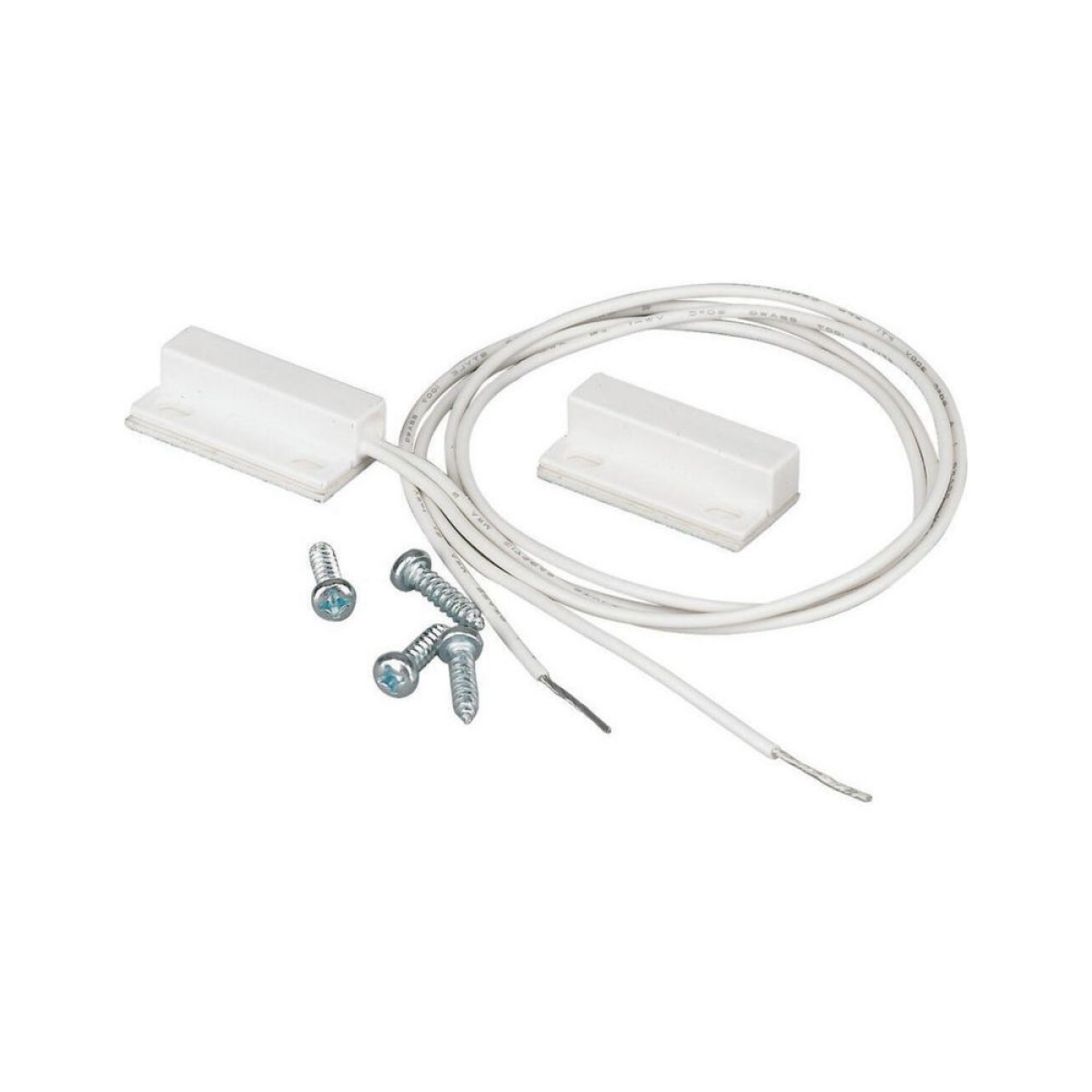

Window contact, surface mounting
Nortécnica Ref:
EAN:
4015081047291
Description
Technical Information
Attributes
Mounting method
Surface mounting
Colour
White
Contacts
1 make contact (NO)
Wireless
No
Ex-class
-
Housing material
Plastic
Suitable for outdoor use
No
Número RAL semelhante
9010
With connection cable
Yes
Degree of protection IP
IP20
For Exzone gas
-
Comprimento do cabo de ligação
0.45
Surface finishing
Matt
Sensor de largura
6.5
Sensor de diâmetro
6.5
Altura do sensor
6.5
For Exzone dust
-
IFTTT support available
No
Suitable for doors
Yes
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Suitable for gates
Yes
With tamper detection
No
Grade according to EN 50131
-
Comprimento do sensor
28
Suitable for floor mounting
No
VdS class
None
Alarm class according to SSF 1014
-
Brands
Manual
Descrição Longa
The window contact is used for monitoring windows and doors. The window surface mounting contact is attached to the window or door frame and the magnet on the moving part of the window (window - door leaf). The evaluation of the signal is only carried out via the binary input 2x signal contact (265627) in mode 2. The use with binary input 2x230VAC is NOT permitted!!! The fixing is carried out using adhesive strips and / or screw fixings (bot included as standard).
