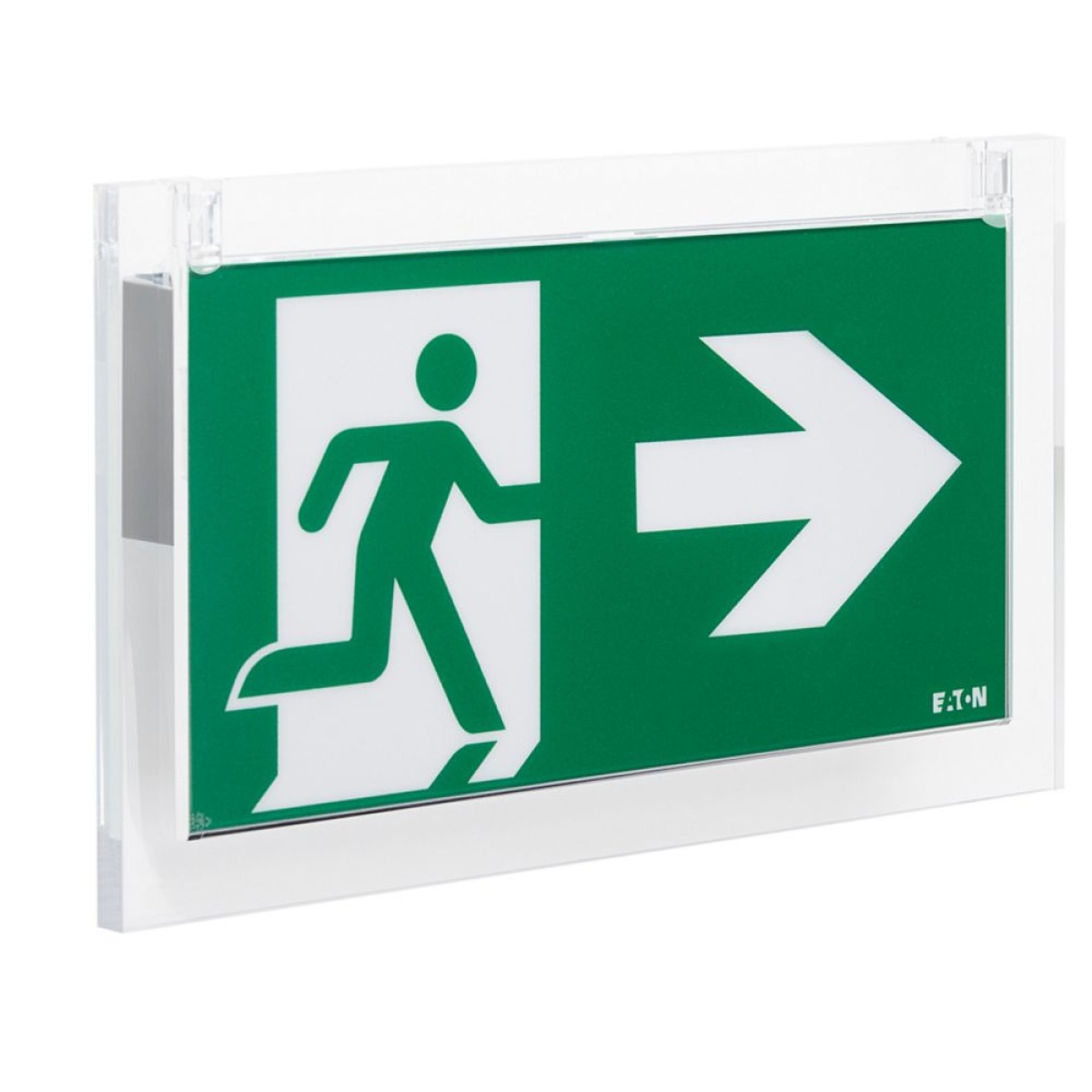

Eaton CrystalWay 19022 CG-S, Escape sign-disc luminaire 30 m, for wall and ceiling mounting, incl. set of pictograms (arrow right, left, down, up, blind)
Description
Technical Information
Attributes
Mounting method
-
Protection class according to IEC 61140
I
Largura
30
Diâmetro externo
-
Function
Escape route signage
Lamp holder
-
Secção transversal do condutor
2.5
Connection type
Plug-in connection
Housing colour
White
Voltage type
DC
EF000233
EV010184
Type of control gear
LED operating device current-controlled
With remote control
No
Largura para embutir
-
Diâmetro para embutir
-
Suitable for labelling type
Insert sheet/plate
Type of indicator
Single/double-sided
Número de polos
3
Comprimento
331
Alturaprofundidade
183
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
-
Comprimento para embutir
-
Material cover
Plastic, transparent
Impact strength
IK04
Battery technology
-
Nominal voltage
220
240
Degree of protection IP
IP42
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
-
With remote switch connection
Yes
EF008091
EV010144
Connectable conductor cross section
-
Fluxo luminoso em funcionamento de emergência
-
Recognition distance
30
Nominal current
-
Colour temperature
-
Potência máx. do sistema
3.7
EF009349
-
Constant light output CLO
No
With pictogram
No
Type of wiring
Suitable for loop-through wiring
Vida útil nominal L70B50 a 25 C
-
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-20
40
Light distributor
-
RAL-number housing
-
Nominal operation time
-
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
No
Suitable for continuous circuit
No
Rated luminous flux according to IEC 62722-2- 1
-
Emergency power supply system
-
Consumo de energia em modo de emergência
-
Emergency function monitoring system
-
With heating element for battery
-
Type of lithium-ion battery
-
EF023518
-
Fator de potência
0.6
