Eaton Outdoor Wall I.I, Safety lighting, Escape route, CGLine+ technology, LED, Maintained / Non-Maintained operation, IP65, up to 290 lm, 1h/2h/3h/8h selectable duration, Battery heater for low temperature down to -20°C
Emergency

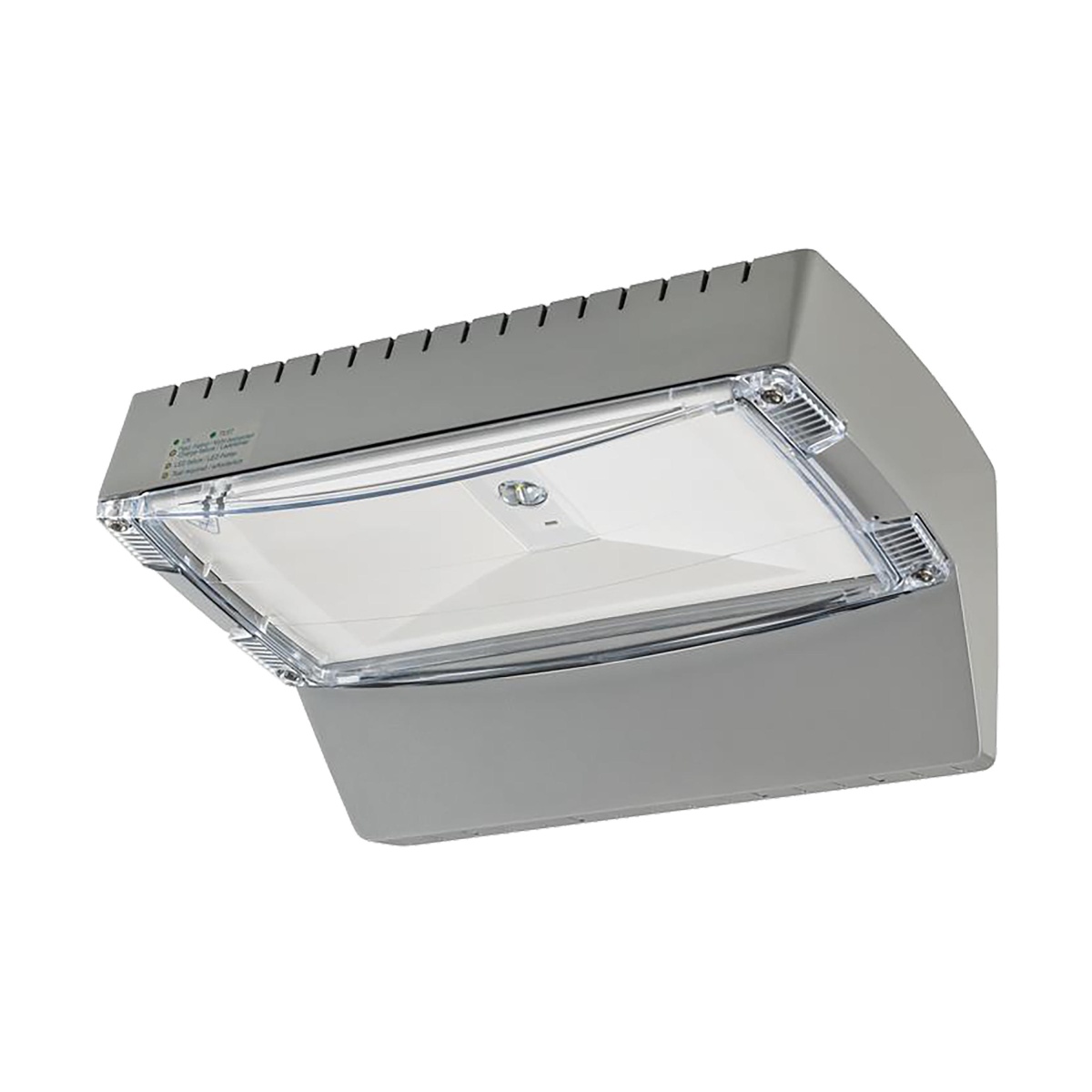

Eaton Outdoor Wall I.I R 1-8hD CGLine H
Nortécnica Ref:
EAN:
4012539370918
Description
Technical Information
Attributes
Mounting method
Wall surface mounted
Protection class according to IEC 61140
I
Largura
184
Outer diameter
-
Function
Escape route lighting
Lamp holder
None
Conductor cross section
2.5
Connection type
Plug-in connection
Housing colour
Grey
Voltage type
AC
Type of control gear
LED operating device current-controlled
With remote control
No
Built-in width
-
Built-in diameter
-
Suitable for labelling type
Other
Type of indicator
-
Número de polos
3
Comprimento
303
Heightdepth
160
Housing material
Aluminium
Lamp type
LED not exchangeable
Number of lighting heads
-
Built-in length
-
Material cover
Plastic, transparent
Impact strength
IK10
Battery technology
-
Nominal voltage
220
240
Degree of protection IP
IP65
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
Yes
Suitable for number of light sources
-
With remote switch connection
Yes
Connectable conductor cross section
-
Luminous flux in emergency mode
-
Recognition distance
-
Nominal current
-
Colour temperature
5700
5700
Max. system power
7.5
Constant light output CLO
No
With pictogram
No
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
-
Luminous flux in standby mode
265
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-20
45
Light distributor
Focal lens
RAL-number housing
7001
Nominal operation time
1
8
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Exchangeable control gear
Yes
Energy efficiency class of the light source according to EU regulation 20192015
A
Suitable for standby switching
Yes
Suitable for continuous circuit
Yes
Rated luminous flux according to IEC 62722-2- 1
-
Emergency power supply system
Peripheral (individual battery)
Power consumption in emergency mode
-
Emergency function monitoring system
Automatic self test
With heating element for battery
-
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Built-in heightdepth
-
Power factor
0.75
Brands
Manual
Descrição Longa
Eaton Outdoor Wall I.I, Safety lighting, Escape route, CGLine+ technology, LED, Maintained / Non-Maintained operation, IP65, up to 290 lm, 1h/2h/3h/8h selectable duration, Battery heater for low temperature down to -20°C
