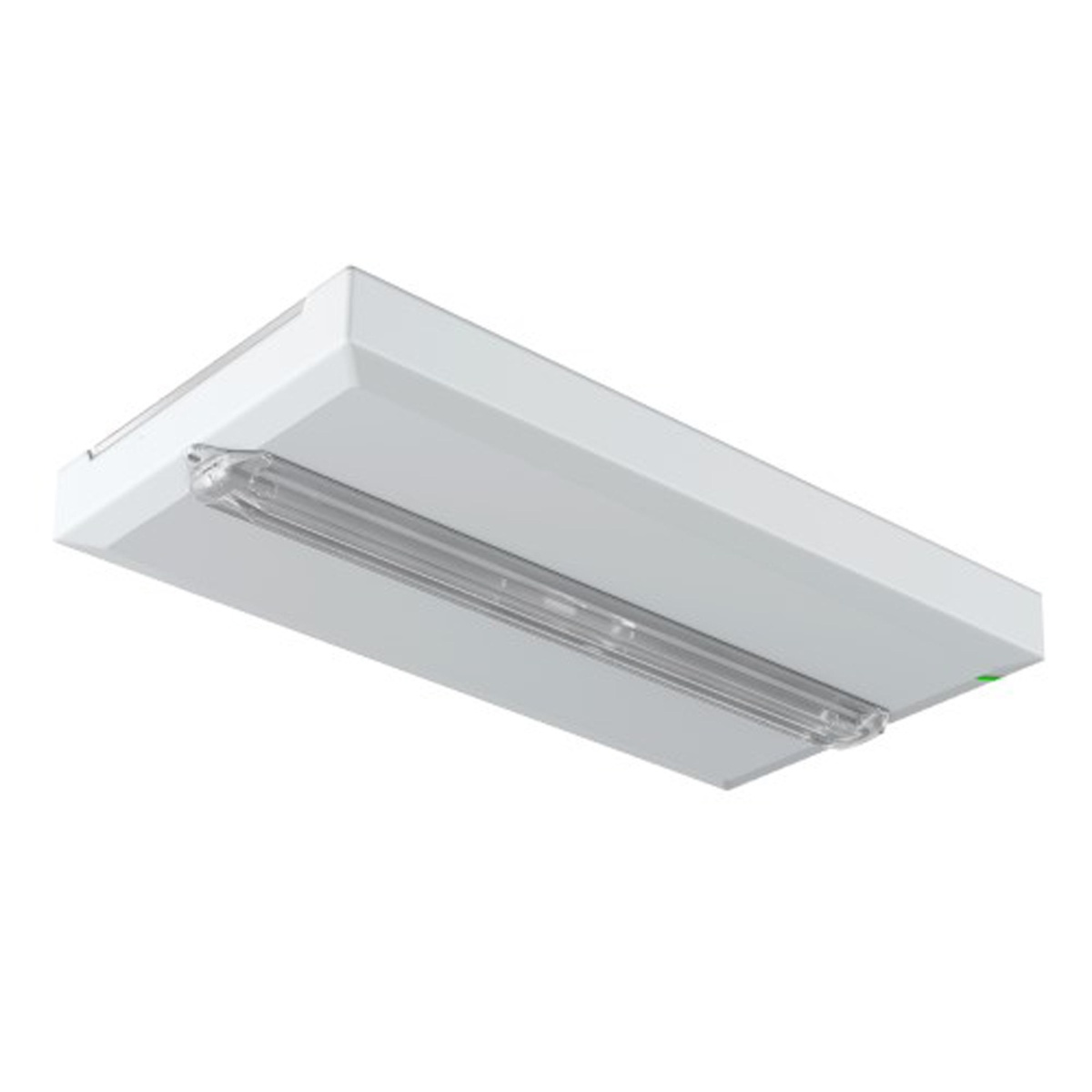

Eaton FlexiTech, Fluchtwegausleuchtung, 150 lm, AT, MNM, Tel, 1 bis 3 Stunden, IP65
Emergency
FT Escape 150lm AT MNM Tel, 1-3H, IP
Nortécnica Ref:
36FT2SE150ATT13IP
EAN:
3660191806989
Description
Technical Information
Attributes
Mounting method
Ceiling surface mounting
Protection class according to IEC 61140
II
Width
120
Outer diameter
-
Function
Escape route lighting
Lamp holder
None
Conductor cross section
2.5
Connection type
Plug-in connection
Housing colour
White
Voltage type
AC
EF000233
EV009693
Type of control gear
LED operating device current-controlled
With remote control
No
Built-in width
130
Built-in diameter
-
Suitable for labelling type
Other
Type of indicator
-
Number of poles
2
Length
228
Heightdepth
31
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
1
Built-in length
245
Material cover
Plastic, transparent
Impact strength
IK07
Battery technology
Lithium-ion
Nominal voltage
230
230
Degree of protection IP
IP65
With light source
No
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Suitable for number of light sources
1
With remote switch connection
No
EF008091
EV009635
Connectable conductor cross section
0.5
2.5
Luminous flux in emergency mode
150
Recognition distance
-
Nominal current
-
-
Colour temperature
6500
6500
Max. system power
2
EF009349
150
Constant light output CLO
No
With pictogram
No
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
100000
Luminous flux in standby mode
100
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
0
45
Light distributor
Focal lens
RAL-number housing
9003
Nominal operation time
1
3
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
A
Suitable for standby switching
No
Suitable for continuous circuit
No
Rated luminous flux according to IEC 62722-2- 1
-
-
Emergency power supply system
Peripheral (individual battery)
Power consumption in emergency mode
2
Emergency function monitoring system
Automatic self test
With heating element for battery
-
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
EF023518
50
Power factor
0.4
Brands
Eaton Electric GmbH
Long Description
Eaton FlexiTech, Fluchtwegausleuchtung, 150 lm, AT, MNM, Tel, 1 bis 3 Stunden, IP65
