Eaton GuideLed SL 13821.2, Safety lighting, Open area, CGLine + technology, LED, Maintained / Non-Maintained operation, IP41, 320lm, 1h/3h/8h selectable duration, recessed
Emergency

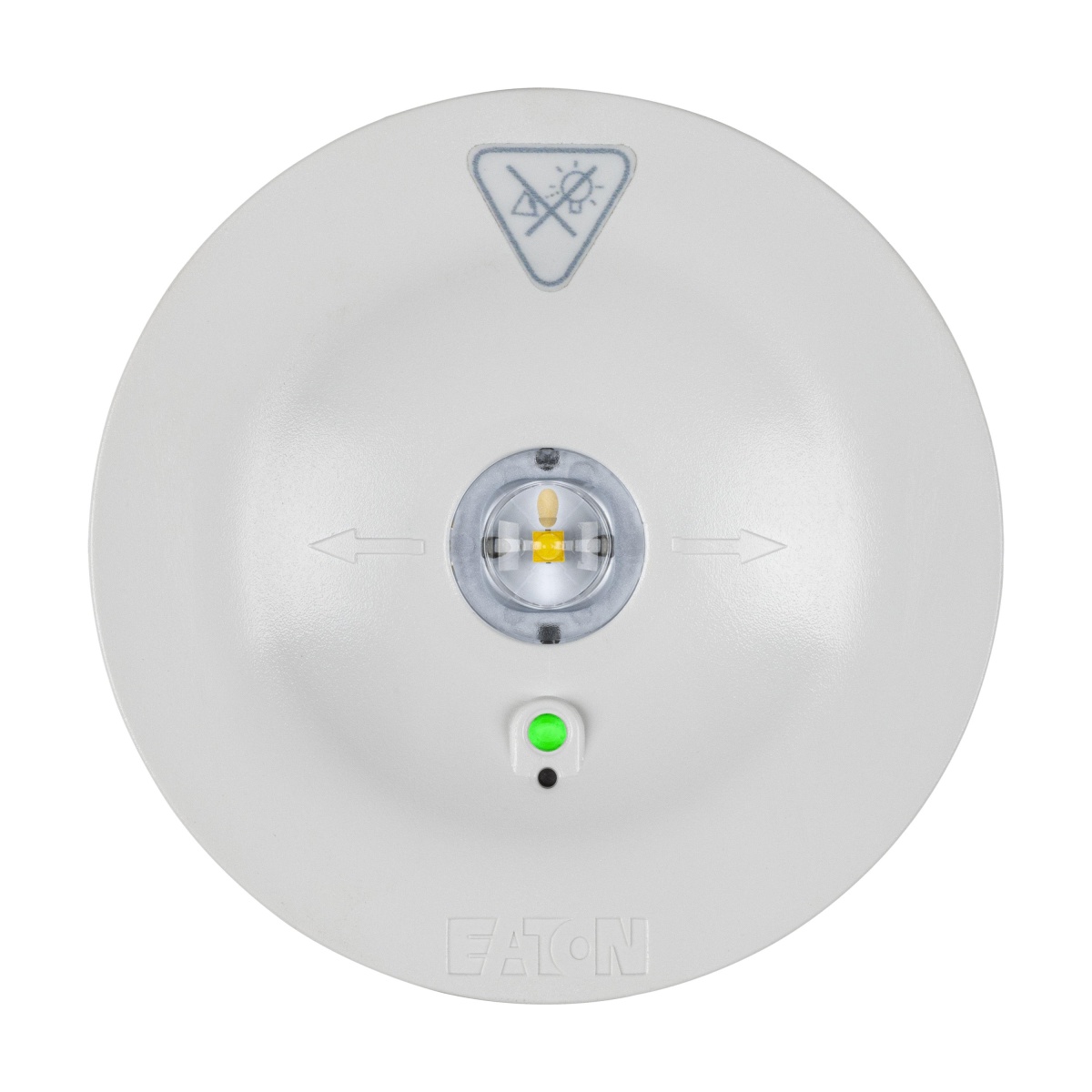

GuideLed SL 13821.2 1-8hD CGL rec sym
Nortécnica Ref:
EAN:
4012539370543
Description
Technical Information
Attributes
Mounting method
Built-in
Protection class according to IEC 61140
II
Largura
80
Outer diameter
80
Function
Escape route lighting
Lamp holder
-
Conductor cross section
2.5
Connection type
Plug-in connection
Housing colour
White
Voltage type
AC
EF000233
EV009693
Type of control gear
LED operating device current-controlled
With remote control
No
Built-in width
-
Built-in diameter
64
Suitable for labelling type
-
Type of indicator
-
Número de polos
-
Comprimento
80
Heightdepth
44
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
-
Built-in length
-
Material cover
-
Impact strength
IK03
Battery technology
-
Nominal voltage
230
230
Degree of protection IP
IP41
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Suitable for number of light sources
-
With remote switch connection
Yes
EF008091
EV010144
Connectable conductor cross section
-
Luminous flux in emergency mode
-
Recognition distance
-
Nominal current
-
Colour temperature
4000
4000
Max. system power
4.1
EF009349
320
Constant light output CLO
No
With pictogram
No
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
-
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
5
45
Light distributor
Focal lens
RAL-number housing
-
Nominal operation time
1
8
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
A
Suitable for standby switching
No
Suitable for continuous circuit
No
Rated luminous flux according to IEC 62722-2- 1
-
Emergency power supply system
-
Power consumption in emergency mode
-
Emergency function monitoring system
-
With heating element for battery
-
Type of lithium-ion battery
-
Built-in heightdepth
40
Power factor
0.47
Brands
Manual
Descrição Longa
Eaton GuideLed SL 13821.2, Safety lighting, Open area, CGLine + technology, LED, Maintained / Non-Maintained operation, IP41, 320lm, 1h/3h/8h selectable duration, recessed
