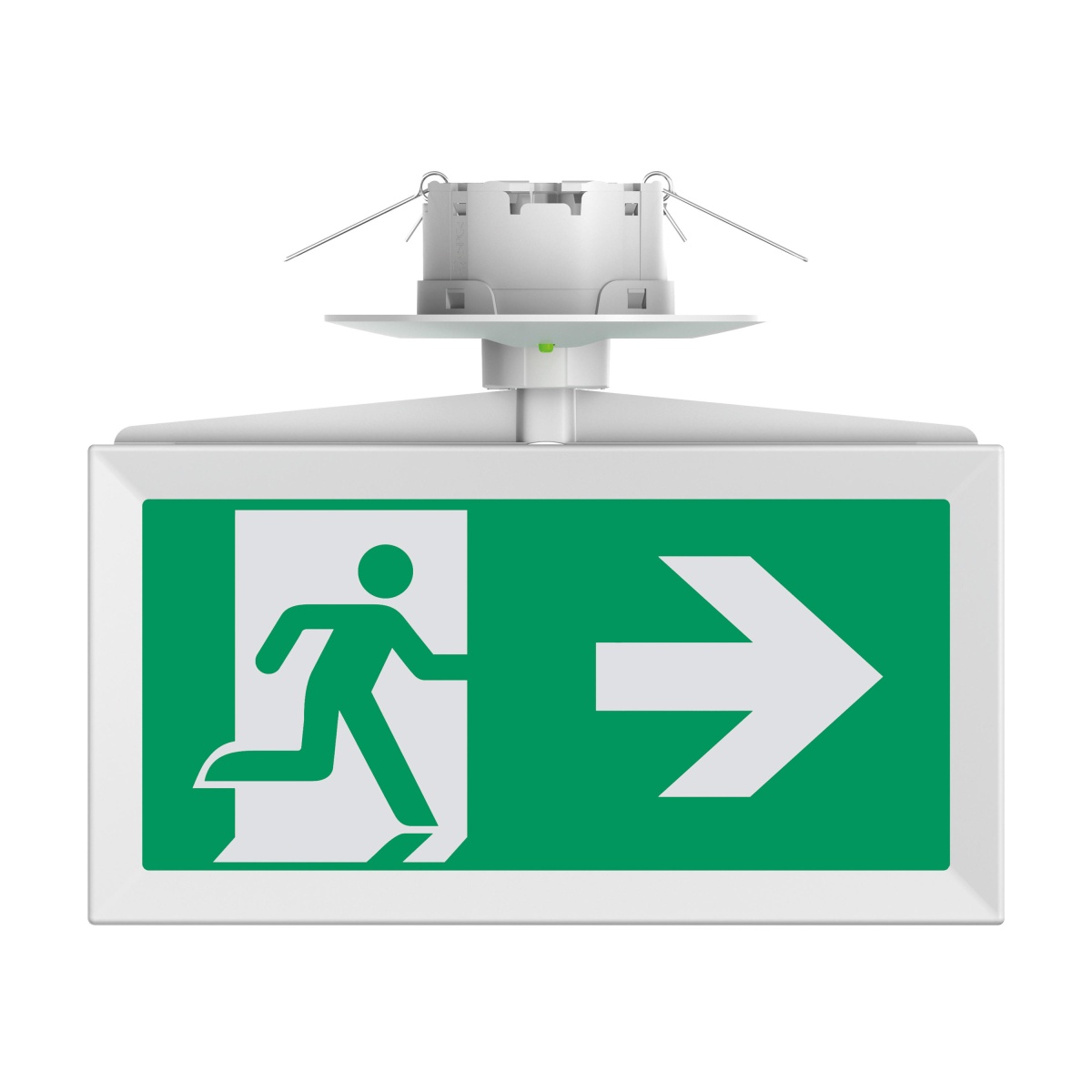

JSB RoundTech Medium Recessed Exit 20M Ceiling WLS 4I M 3H IP43
Emergency
JSB_RTECH MR EC 20M WLS 4I M 3H IP43
Nortécnica Ref:
EAN:
3660191822675
Description
Technical Information
Attributes
Mounting method
Built-in
Protection class according to IEC 61140
II
Width
187
Outer diameter
-
Function
Escape route signage
Lamp holder
None
Conductor cross section
-
Connection type
Plug-in connection
Housing colour
White
Voltage type
AC
Type of control gear
LED operating device current-controlled
With remote control
No
Built-in width
-
Built-in diameter
64
Suitable for labelling type
Insert sheet/plate
Type of indicator
Single/double-sided
Number of poles
3
Length
233
Heightdepth
110
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
1
Built-in length
-
Material cover
Plastic, transparent
Impact strength
IK04
Battery technology
-
Nominal voltage
230
230
Degree of protection IP
IP43
With light source
No
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Suitable for number of light sources
-
With remote switch connection
No
Connectable conductor cross section
-
Luminous flux in emergency mode
-
Recognition distance
20
Nominal current
-
Colour temperature
6500
6500
Max. system power
2
Constant light output CLO
No
With pictogram
No
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
-
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-
Light distributor
Diffuser lens/optic/panel
RAL-number housing
9003
Nominal operation time
3
3
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
A
Suitable for standby switching
No
Suitable for continuous circuit
No
Rated luminous flux according to IEC 62722-2- 1
-
Emergency power supply system
-
Power consumption in emergency mode
-
Emergency function monitoring system
-
With heating element for battery
-
Type of lithium-ion battery
-
Built-in heightdepth
200
Power factor
0.63
Brands
Eaton
Long Description
JSB RoundTech Medium Recessed Exit 20M Ceiling WLS 4I M 3H IP43
