Eaton NexiTech LED, Safety lighting, Escape route, Open area, LED, IP65, IK10, 1000lm, 24/48Vdc
Emergency

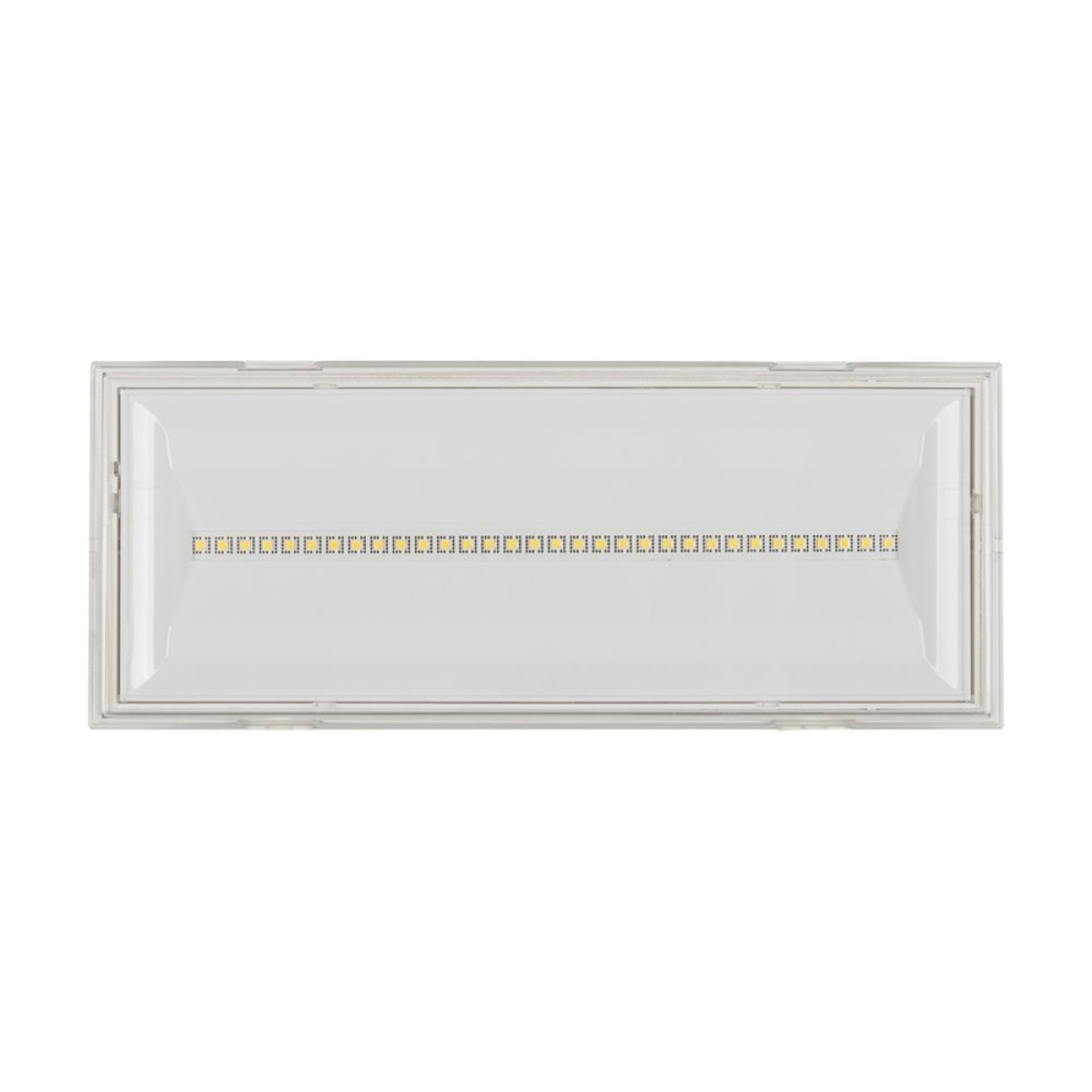

NexiTech LED 1000lm 48VDC, IK10, IP65
Nortécnica Ref:
EAN:
4012539361022
Description
Technical Information
Attributes
Mounting method
-
Protection class according to IEC 61140
III
Largura
125
Diâmetro externo
-
Function
Escape route lighting/signage
Lamp holder
-
Secção transversal do condutor
2.5
Connection type
Plug-in connection
Housing colour
White
Voltage type
AC/DC
EF000233
EV010184
Type of control gear
Not required
With remote control
No
Largura para embutir
102
Diâmetro para embutir
-
Suitable for labelling type
-
Type of indicator
-
Número de polos
2
Comprimento
308
Alturaprofundidade
53
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
32
Comprimento para embutir
284
Material cover
Plastic, transparent
Impact strength
IK10
Battery technology
Other
Nominal voltage
20
56
Degree of protection IP
IP65
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
-
With remote switch connection
No
EF008091
EV000494
Connectable conductor cross section
-
Fluxo luminoso em funcionamento de emergência
-
Recognition distance
-
Nominal current
-
Colour temperature
5053
5053
Potência máx. do sistema
8.6
EF009349
1000
Constant light output CLO
No
With pictogram
No
Type of wiring
Suitable for loop-through wiring
Vida útil nominal L70B50 a 25 C
-
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-
Light distributor
Diffuser lens/optic/panel
RAL-number housing
-
Nominal operation time
-
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
No
Suitable for continuous circuit
No
Rated luminous flux according to IEC 62722-2- 1
-
Emergency power supply system
-
Consumo de energia em modo de emergência
-
Emergency function monitoring system
-
With heating element for battery
-
Type of lithium-ion battery
-
EF023518
39
Fator de potência
-
