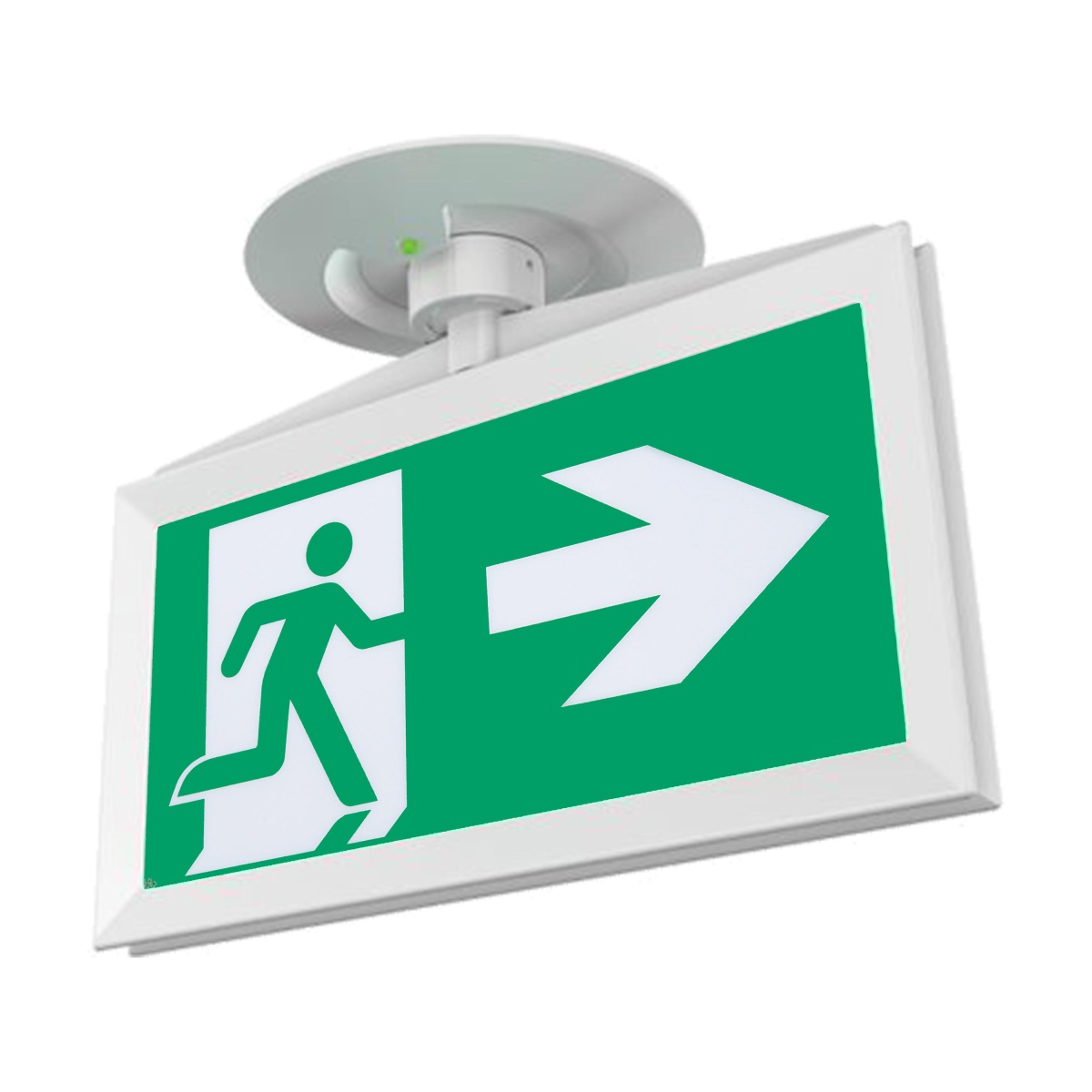

Eaton PLANETE 2-45 Exit 20M Ceiling CGA 4I M 1H IP43
Emergency
PLANETE 2-45 SPOT ADR CGLINE
Nortécnica Ref:
EAN:
3660191813895
Description
Technical Information
Attributes
Mounting method
Surface mounting/recessed mounting
Protection class according to IEC 61140
II
Largura
187
Diâmetro externo
110
Function
Escape route signage
Lamp holder
None
Secção transversal do condutor
2.5
Connection type
Plug-in connection
Housing colour
White
Voltage type
AC
EF000233
EV009693
Type of control gear
Not required
With remote control
No
Largura para embutir
110
Diâmetro para embutir
64
Suitable for labelling type
Insert sheet/plate
Type of indicator
-
Número de polos
2
Comprimento
233
Alturaprofundidade
110
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
1
Comprimento para embutir
200
Material cover
Plastic, transparent
Impact strength
IK05
Battery technology
-
Nominal voltage
230
230
Degree of protection IP
IP43
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
1
With remote switch connection
Yes
EF008091
EV010144
Connectable conductor cross section
-
Fluxo luminoso em funcionamento de emergência
-
Recognition distance
20
Nominal current
-
Colour temperature
-
Potência máx. do sistema
0.6
EF009349
45
Constant light output CLO
No
With pictogram
Yes
Type of wiring
-
Vida útil nominal L70B50 a 25 C
-
Luminous flux in standby mode
3
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-
Light distributor
Diffuser lens/optic/panel
RAL-number housing
-
Nominal operation time
1
1
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
No
Suitable for continuous circuit
No
Rated luminous flux according to IEC 62722-2- 1
-
Emergency power supply system
-
Consumo de energia em modo de emergência
-
Emergency function monitoring system
-
With heating element for battery
-
Type of lithium-ion battery
-
EF023518
200
Fator de potência
0.5
