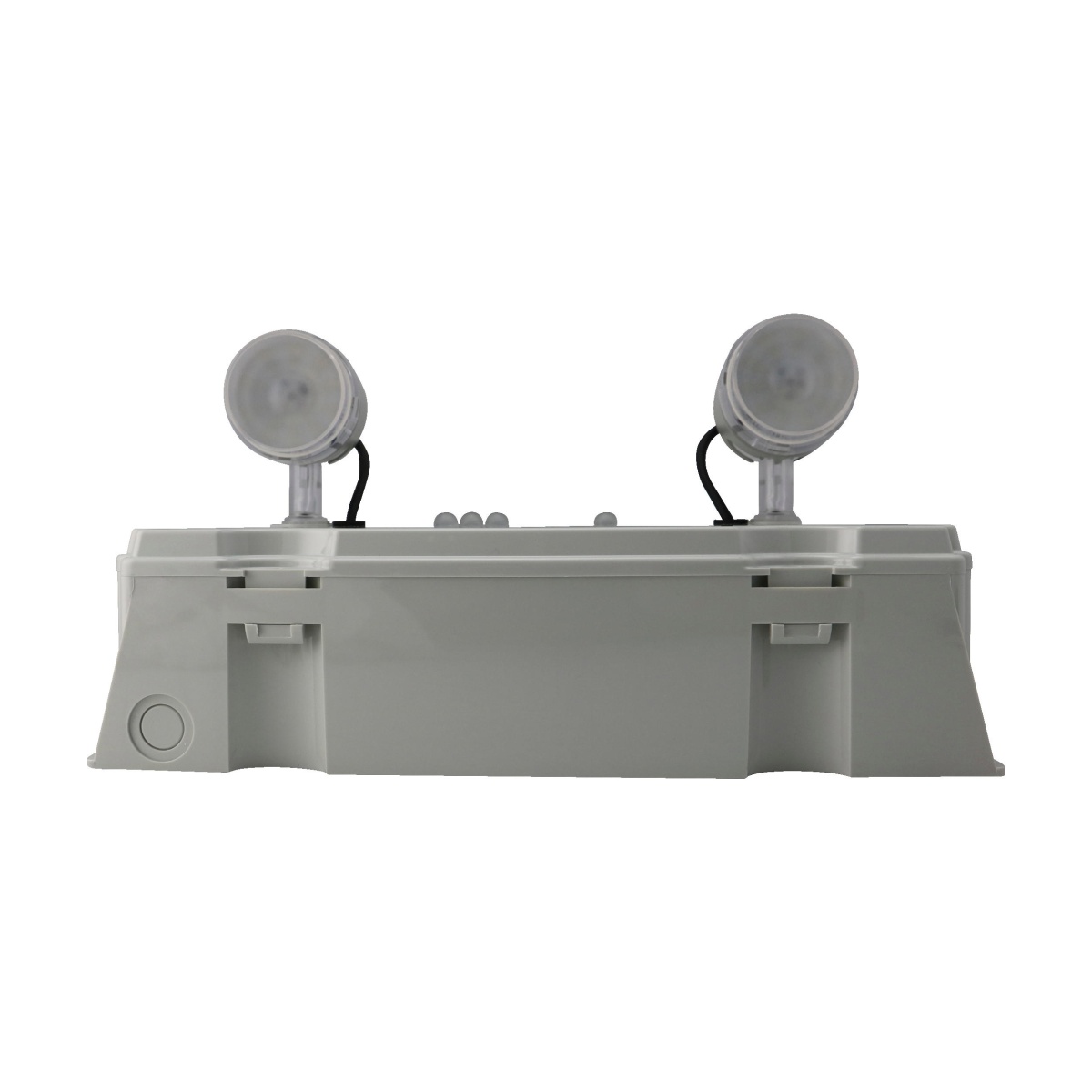

Eaton Planete 2000, éclairage de sécurité, chemin d’évacuation et anti-panique, technologie CGLine+, LED, Mode non permanent, IP42, 2000 lm, autonomie 1 heure
Emergency
PLANETE 2000 ADR CGLine
Nortécnica Ref:
36LUM17110
EAN:
3660191171100
Description
Technical Information
Attributes
Mounting method
Surface mounting/recessed mounting
Protection class according to IEC 61140
II
Largura
235
Diâmetro externo
-
Function
Escape route lighting
Lamp holder
None
Secção transversal do condutor
2.5
Connection type
Plug-in connection
Housing colour
Grey
Voltage type
AC
EF000233
EV009693
Type of control gear
Electronic transformer
With remote control
No
Largura para embutir
275
Diâmetro para embutir
-
Suitable for labelling type
-
Type of indicator
-
Número de polos
2
Comprimento
400
Alturaprofundidade
220
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
20
Comprimento para embutir
415
Material cover
Plastic, transparent
Impact strength
IK07
Battery technology
NiCd
Nominal voltage
230
230
Degree of protection IP
IP42
With light source
No
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
2
With remote switch connection
No
EF008091
EV010144
Connectable conductor cross section
0.5
2.5
Fluxo luminoso em funcionamento de emergência
2000
Recognition distance
-
Nominal current
20
20
Colour temperature
5053
5700
Potência máx. do sistema
4.5
EF009349
2000
Constant light output CLO
No
With pictogram
No
Type of wiring
Suitable for loop-through wiring
Vida útil nominal L70B50 a 25 C
-
Luminous flux in standby mode
3
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
5
40
Light distributor
Diffuser lens/optic/panel
RAL-number housing
7035
Nominal operation time
1
1
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
A
Suitable for standby switching
No
Suitable for continuous circuit
No
Rated luminous flux according to IEC 62722-2- 1
-
-
Emergency power supply system
Peripheral (individual battery)
Consumo de energia em modo de emergência
4.5
Emergency function monitoring system
Automatic self test
With heating element for battery
-
Type of lithium-ion battery
-
EF023518
120
Fator de potência
0.55
Brands
Eaton Electric GmbH
