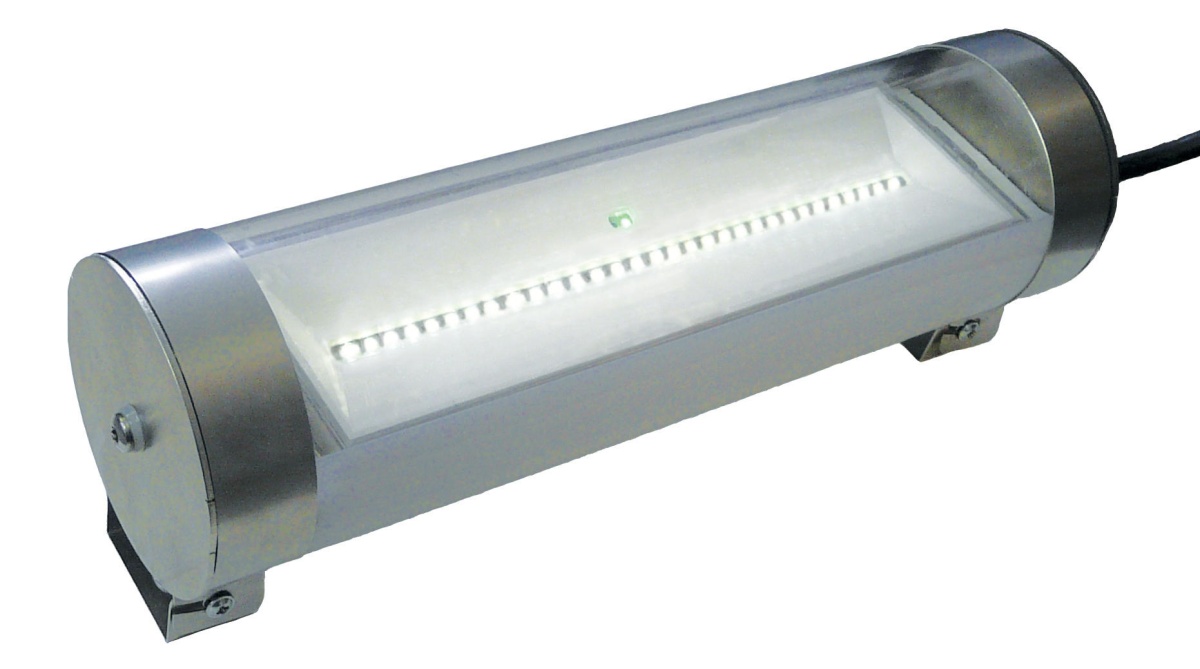

Eaton Planète 220/400 Tube CG-S, Safety luminaire incl. LED supply and CG-S technology (20 addresses)
Emergency
PLANETE 220400 TUBE CG-S
Nortécnica Ref:
EAN:
3660191222512
Description
Technical Information
Attributes
Mounting method
-
Protection class according to IEC 61140
II
Largura
100
Outer diameter
100
Function
Escape route lighting
Lamp holder
-
Conductor cross section
2.5
Connection type
Plug-in connection
Housing colour
Stainless steel
Voltage type
AC
EF000233
EV010184
Type of control gear
LED operating device voltage-controlled
With remote control
No
Built-in width
-
Built-in diameter
-
Suitable for labelling type
-
Type of indicator
-
Número de polos
2
Comprimento
360
Heightdepth
125
Housing material
Stainless steel
Lamp type
LED not exchangeable
Number of lighting heads
-
Built-in length
-
Material cover
Plastic, transparent
Impact strength
IK10
Battery technology
-
Nominal voltage
-
Degree of protection IP
IP66
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Suitable for number of light sources
-
With remote switch connection
No
EF008091
EV010144
Connectable conductor cross section
-
Luminous flux in emergency mode
-
Recognition distance
-
Nominal current
-
Colour temperature
-
Max. system power
6.8
EF009349
-
Constant light output CLO
No
With pictogram
No
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
13.8888888888885
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-
Light distributor
Diffuser lens/optic/panel
RAL-number housing
-
Nominal operation time
-
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
No
Suitable for continuous circuit
No
Rated luminous flux according to IEC 62722-2- 1
-
Emergency power supply system
-
Power consumption in emergency mode
-
Emergency function monitoring system
-
With heating element for battery
-
Type of lithium-ion battery
-
Built-in heightdepth
-
Power factor
0.523
Brands
Manual
Descrição Longa
Eaton Planète 220/400 Tube CG-S, Safety luminaire incl. LED supply and CG-S technology (20 addresses)
