Eaton Planete 400 AD ADR CGLine+, Auto Test, IP65, Autonomie 1H
Emergency

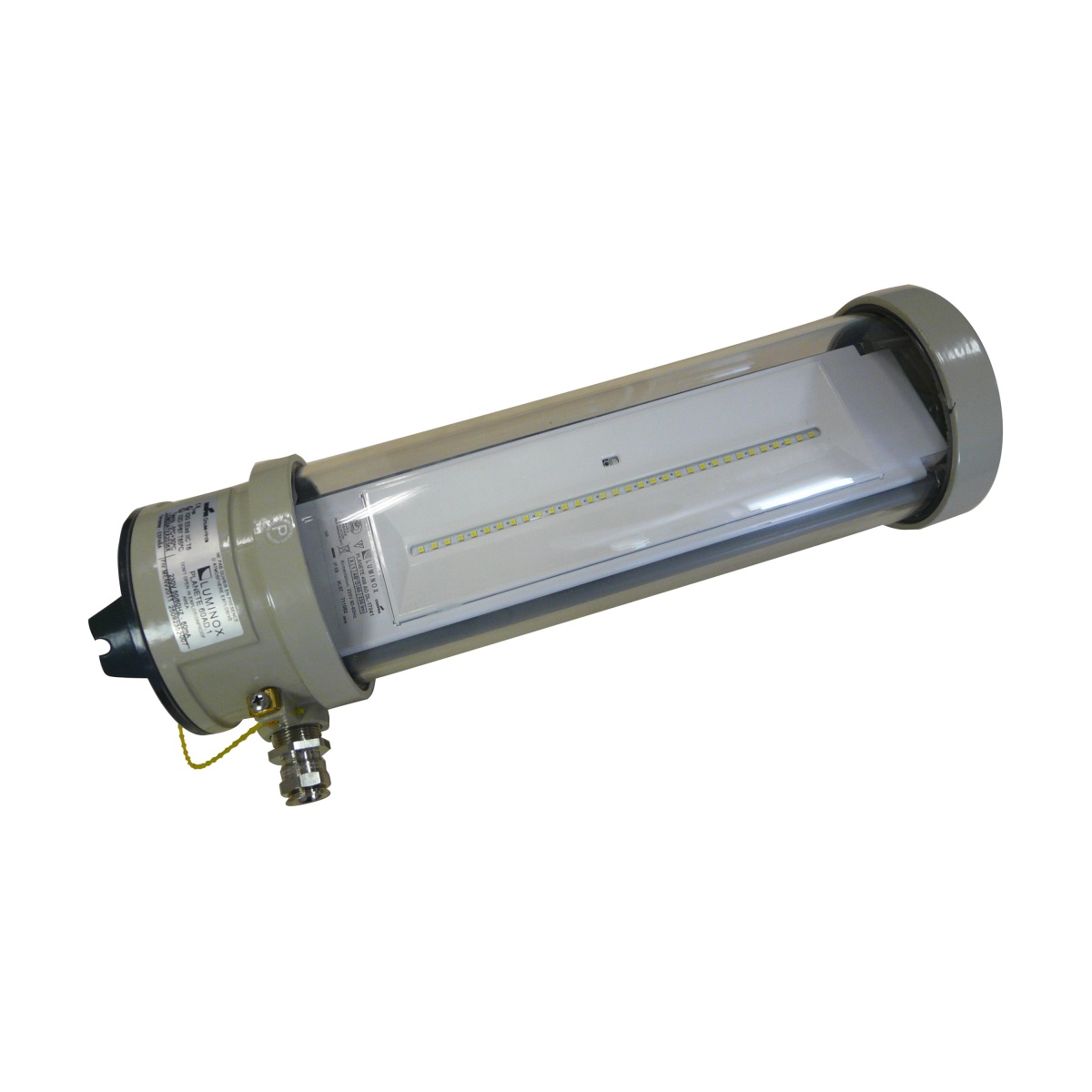

PLANETE 400 AD ADR CGLine
Nortécnica Ref:
36LUM17141
EAN:
3660191171414
Description
Technical Information
Attributes
Mounting method
Surface mounting/recessed mounting
Protection class according to IEC 61140
II
Largura
190
Diâmetro externo
-
Function
Escape route lighting
Lamp holder
Other
Secção transversal do condutor
2.5
Connection type
Plug-in connection
Housing colour
Grey
Voltage type
AC
Type of control gear
Electronic transformer
With remote control
No
Largura para embutir
-
Diâmetro para embutir
-
Suitable for labelling type
Other
Type of indicator
-
Número de polos
2
Comprimento
470
Alturaprofundidade
165
Housing material
Aluminium
Lamp type
LED not exchangeable
Number of lighting heads
24
Comprimento para embutir
-
Material cover
Glass transparent
Impact strength
IK07
Battery technology
NiCd
Nominal voltage
230
230
Degree of protection IP
IP65
With light source
No
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
1
With remote switch connection
No
Connectable conductor cross section
0.5
2.5
Fluxo luminoso em funcionamento de emergência
330
Recognition distance
-
Nominal current
7
7
Colour temperature
5053
5053
Potência máx. do sistema
1.6
Constant light output CLO
No
With pictogram
No
Type of wiring
Suitable for loop-through wiring
Vida útil nominal L70B50 a 25 C
-
Luminous flux in standby mode
3
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
5
30
Light distributor
Reflector
RAL-number housing
7032
Nominal operation time
1
1
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
A
Suitable for standby switching
No
Suitable for continuous circuit
No
Rated luminous flux according to IEC 62722-2- 1
-
-
Emergency power supply system
Peripheral (individual battery)
Consumo de energia em modo de emergência
1.6
Emergency function monitoring system
Automatic self test
With heating element for battery
-
Type of lithium-ion battery
-
EF023518
-
Fator de potência
-
Brands
Eaton Electric GmbH
