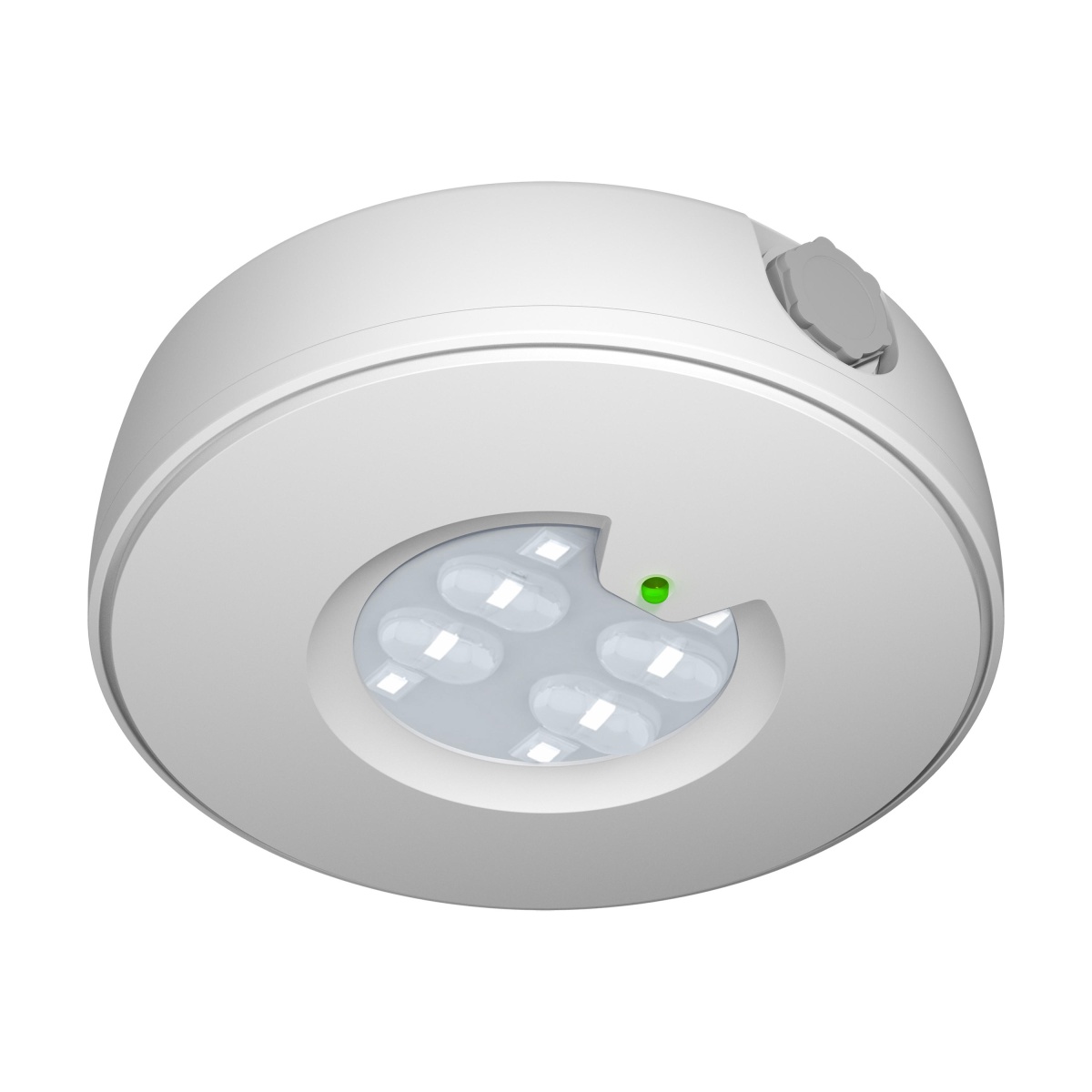

Eaton Roundtech Medium Surface Safety eFocus ATF 200 MNM 3H IP65 JSB
Emergency
RTECH MS SEO ATF 200 MNM 3H IP65 JSB
Nortécnica Ref:
EAN:
3660191814908
Description
Technical Information
Attributes
Mounting method
Ceiling surface mounting
Protection class according to IEC 61140
II
Largura
138
Diâmetro externo
-
Function
Escape route lighting
Lamp holder
None
Secção transversal do condutor
2.5
Connection type
Plug-in connection
Housing colour
White
Voltage type
AC
EF000233
EV009693
Type of control gear
Not required
Remote control included
No
Largura para embutir
-
Built-in diameter
-
Suitable for labelling type
-
Type of indicator
-
Número de polos
3
Comprimento
138
Alturaprofundidade
48
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
1
Built-in length
-
Cover material
Plastic, transparent
Impact strength
IK04
Battery technology
-
Nominal voltage
230
230
Degree of protection IP
IP65
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
1
With remote switch connection
Yes
EF008091
EV000494
Connectable conductor cross section
-
Fluxo luminoso em funcionamento de emergência
-
Recognition distance
-
Nominal current
-
Colour temperature
5700
5700
Potência máx. do sistema
1.1
EF009349
200
Constant light output CLO
No
With pictogram
No
Type of wiring
-
Vida útil nominal L70B50 a 25 C
-
Luminous flux in standby mode
60
Degree of protection NEMA
-
EF012090
-
Light distributor
Focal lens
RAL-number housing
-
Nominal operation time
3
3
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to 20192015EU
-
Suitable for standby switching
No
Suitable for continuous circuit
No
Rated luminous flux according to IEC 62722-2- 1
-
Emergency power supply system
-
Consumo de energia em modo de emergência
-
Emergency function monitoring system
-
With heating element for battery
-
Type of lithium-ion battery
-
Built-in heightdepth
-
Fator de potência
0.58
