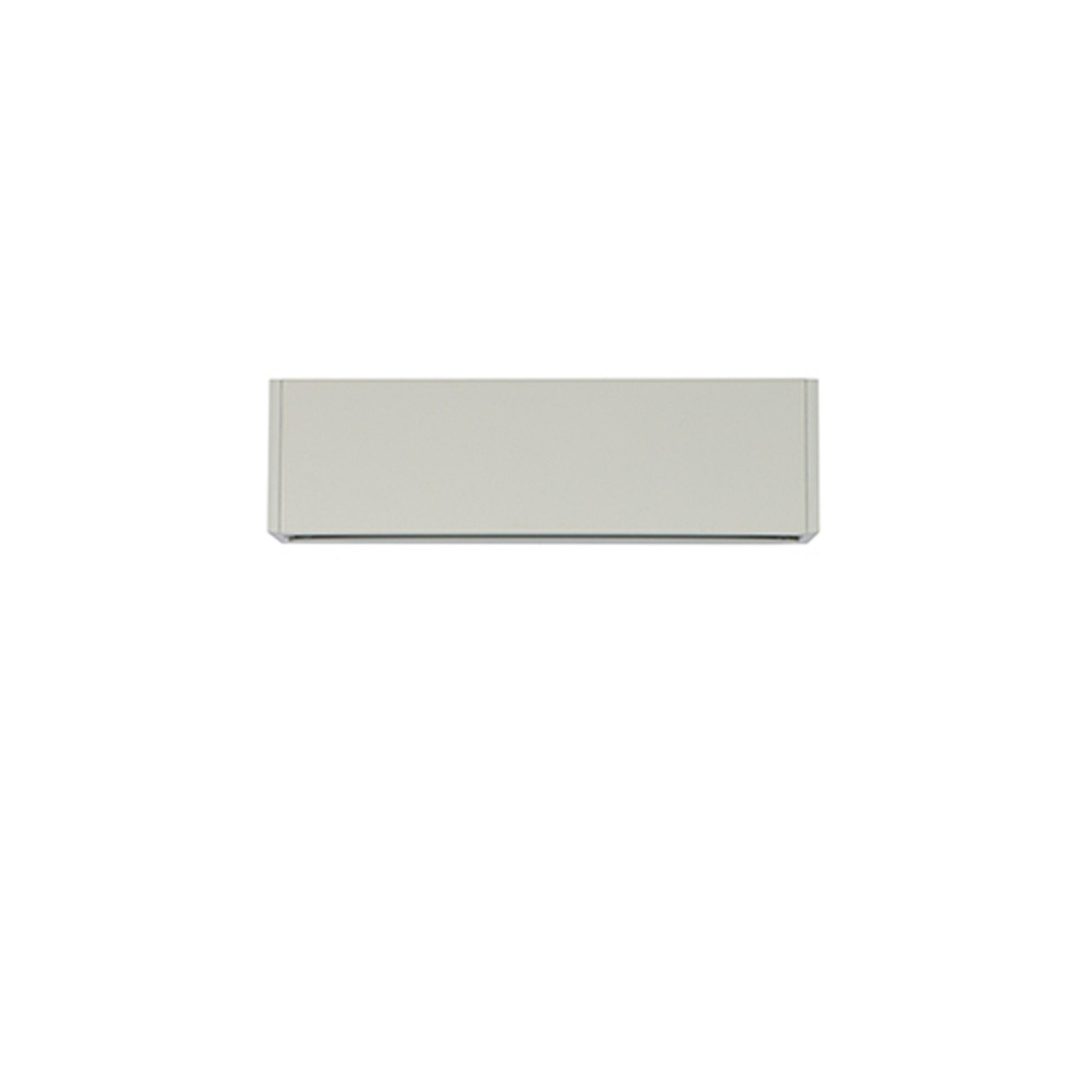

Eaton Brillant 1704 LED CG-S
Description
Technical Information
Attributes
Mounting method
Wall surface mounted
Protection class according to IEC 61140
I
Largura
95
Diâmetro externo
-
Function
Escape route signage
Lamp holder
None
Secção transversal do condutor
2.5
Connection type
Plug-in connection
Housing colour
White
Voltage type
DC
EF000233
-
Type of control gear
LED operating device voltage-controlled
With remote control
No
Largura para embutir
-
Diâmetro para embutir
-
Suitable for labelling type
Acrylic plate
Type of indicator
Single/double-sided
Número de polos
3
Comprimento
340
Alturaprofundidade
75
Housing material
Aluminium
Lamp type
LED not exchangeable
Number of lighting heads
-
Comprimento para embutir
-
Material cover
Without cover
Impact strength
IK03
Battery technology
-
Nominal voltage
220
220
Degree of protection IP
IP20
With light source
No
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
-
With remote switch connection
No
EF008091
-
Connectable conductor cross section
-
Fluxo luminoso em funcionamento de emergência
-
Recognition distance
-
Nominal current
-
Colour temperature
-
Potência máx. do sistema
4.1
EF009349
-
Constant light output CLO
No
With pictogram
No
Type of wiring
Ending
Vida útil nominal L70B50 a 25 C
-
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-10
40
Light distributor
Diffuser lens/optic/panel
RAL-number housing
9010
Nominal operation time
-
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
A
Suitable for standby switching
No
Suitable for continuous circuit
No
Rated luminous flux according to IEC 62722-2- 1
-
Emergency power supply system
-
Consumo de energia em modo de emergência
-
Emergency function monitoring system
-
With heating element for battery
-
Type of lithium-ion battery
-
EF023518
-
Fator de potência
0.58
