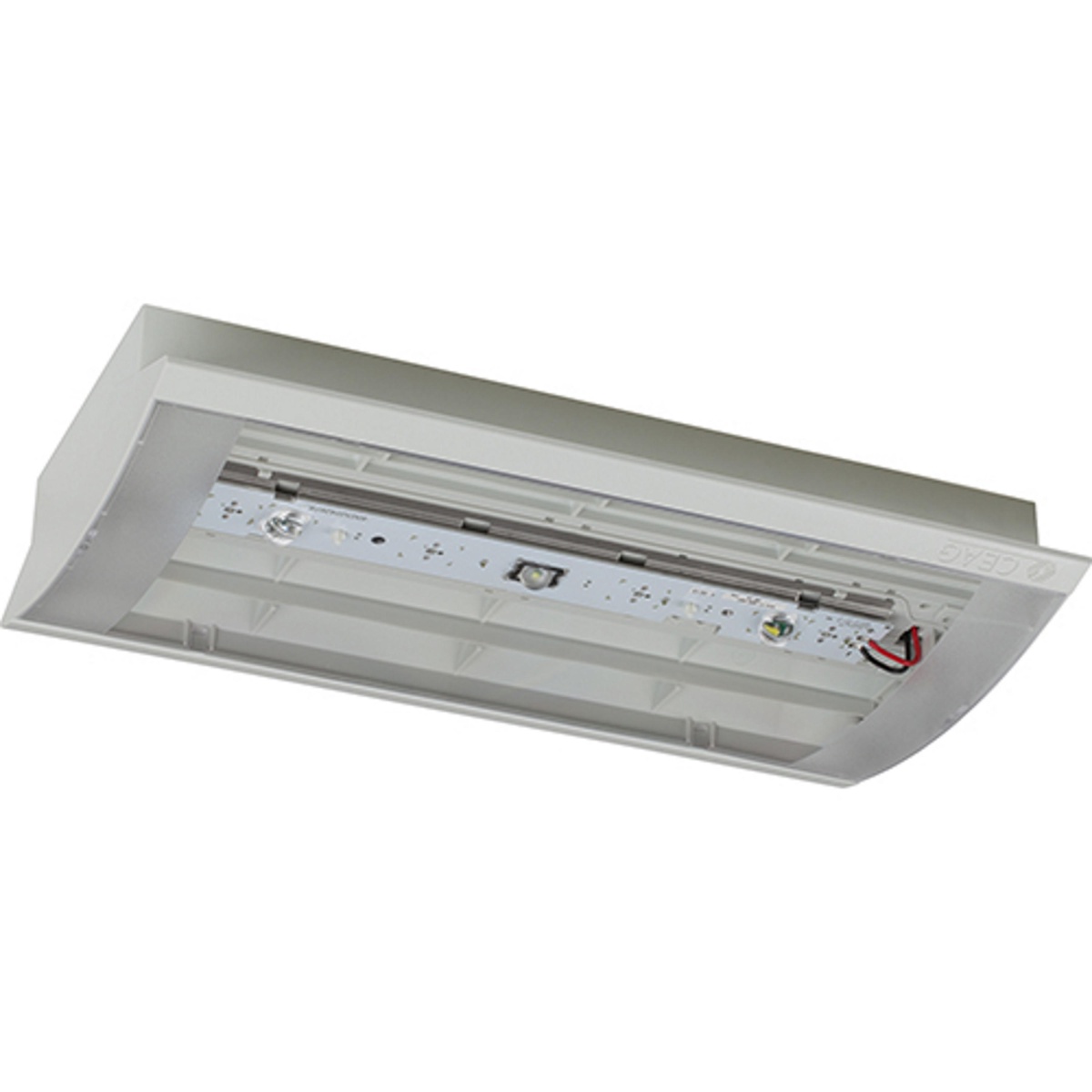

Eaton Style 22011 SL LED CG-S (SET)
Description
Technical Information
Attributes
Mounting method
Ceiling surface mounting
Protection class according to IEC 61140
II
Largura
197
Diâmetro externo
-
Function
Escape route lighting
Lamp holder
None
Secção transversal do condutor
2.5
Connection type
Screw connection
Housing colour
Grey
Voltage type
DC
EF000233
EV010184
Type of control gear
LED operating device current-controlled
With remote control
No
Largura para embutir
-
Diâmetro para embutir
-
Suitable for labelling type
-
Type of indicator
-
Número de polos
3
Comprimento
340
Alturaprofundidade
60
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
-
Comprimento para embutir
-
Material cover
Plastic, transparent
Impact strength
IK03
Battery technology
-
Nominal voltage
220
240
Degree of protection IP
IP41
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
Yes
Adequado para número de lâmpadas
-
With remote switch connection
Yes
EF008091
EV010144
Connectable conductor cross section
-
Fluxo luminoso em funcionamento de emergência
-
Recognition distance
32
Nominal current
-
Colour temperature
6500
6500
Potência máx. do sistema
4.4
EF009349
320
Constant light output CLO
No
With pictogram
Yes
Type of wiring
Loop-through wiring included
Vida útil nominal L70B50 a 25 C
-
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-20
40
Light distributor
Diffuser lens/optic/panel
RAL-number housing
-
Nominal operation time
-
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
No
Suitable for continuous circuit
No
Rated luminous flux according to IEC 62722-2- 1
-
Emergency power supply system
-
Consumo de energia em modo de emergência
-
Emergency function monitoring system
-
With heating element for battery
-
Type of lithium-ion battery
-
EF023518
-
Fator de potência
0.579
