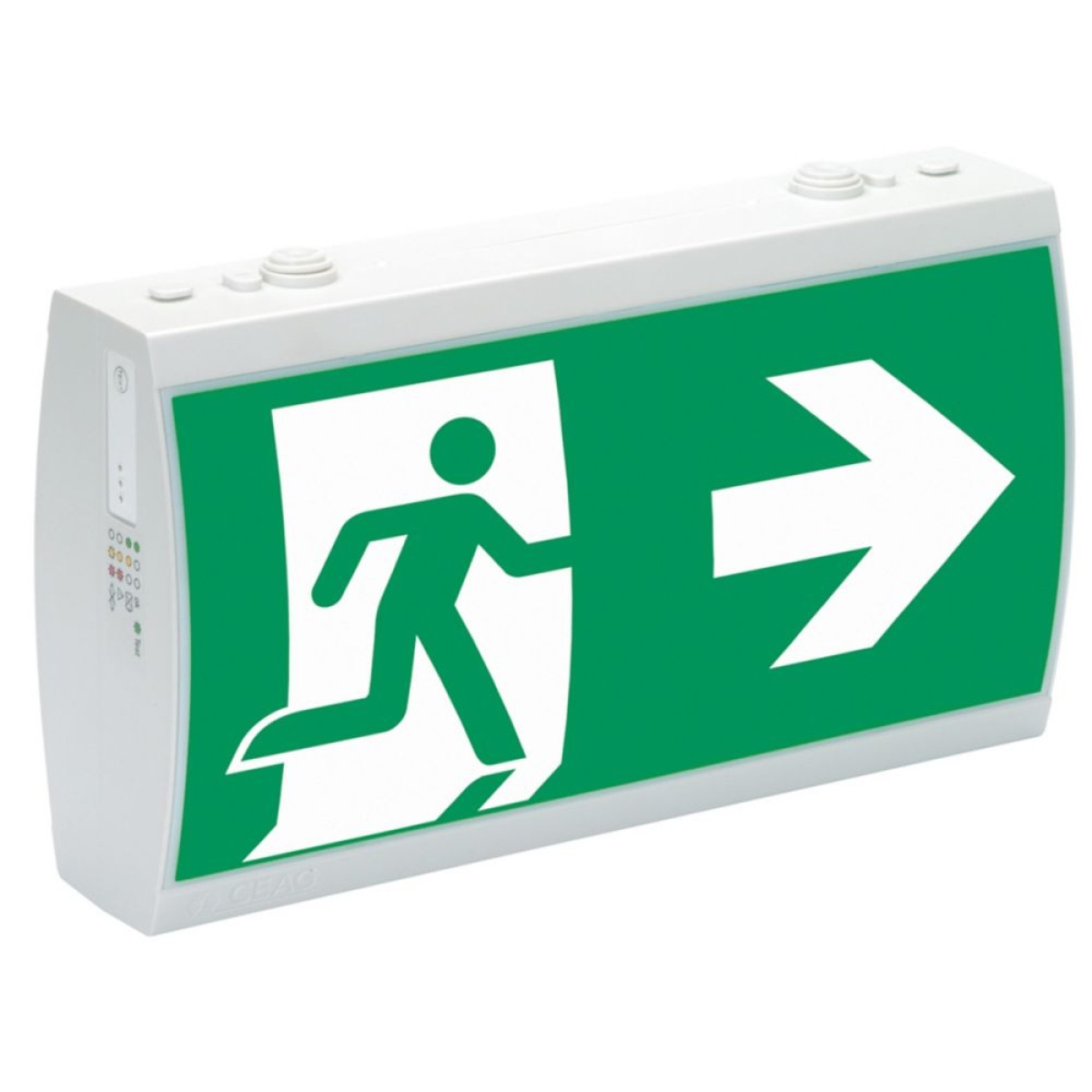

Eaton SV EURO 2-3/D LED (SET) 3H Autonomy
Description
Technical Information
Attributes
Mounting method
Surface mounting/recessed mounting
Protection class according to IEC 61140
II
Largura
92
Outer diameter
-
Function
Escape route signage
Lamp holder
Other
Conductor cross section
2.5
Connection type
Plug-in connection
Housing colour
White
Voltage type
AC
EF000233
EV009693
Type of control gear
LED operating device current-controlled
With remote control
No
Built-in width
-
Built-in diameter
-
Suitable for labelling type
Sticker
Type of indicator
Single/double-sided
Número de polos
2
Comprimento
341
Heightdepth
202
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
32
Built-in length
-
Material cover
Plastic, transparent
Impact strength
IK03
Battery technology
NiCd
Nominal voltage
230
240
Degree of protection IP
IP41
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Suitable for number of light sources
1
With remote switch connection
No
EF008091
EV008889
Connectable conductor cross section
-
Luminous flux in emergency mode
-
Recognition distance
32
Nominal current
73.5
73.5
Colour temperature
6500
6500
Max. system power
3.8
EF009349
180
Constant light output CLO
No
With pictogram
Yes
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
50000
Luminous flux in standby mode
250
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
5
35
Light distributor
Reflector
RAL-number housing
7025
Nominal operation time
3
3
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
A
Suitable for standby switching
Yes
Suitable for continuous circuit
Yes
Rated luminous flux according to IEC 62722-2- 1
-
Emergency power supply system
-
Power consumption in emergency mode
-
Emergency function monitoring system
-
With heating element for battery
-
Type of lithium-ion battery
-
Built-in heightdepth
-
Power factor
0.5
Brands
Manual
Descrição Longa
Eaton SV EURO 2-3/D LED (SET) 3H Autonomy
