Multifunction step/monostable relays Nr.contacts: 1 Contacts configuration: NO Contact Material: AgSnO2 Nominal voltage: 250 V. Mounting method: DRA (DIN-rail adapter) Assembly arrangement: Control element Colour: White Model: Relay Rated current: 16 A. Frequency: from 50 to 60 Hz. Material quality: Thermoplastic Type of load: Universal Material: Plastic Type of fastening: Clamp mounting Light value memory: no RAL-number (similar): 7035 Switch capacity HVAC: 3000 W. Applicable with movement sensor: yes Applicable with transmission button: no Applicable with presence indicator: yes Applicable with button: yes Applicable with time switch/timer: yes Switch capacity: 3000 W. Transparent: no Surface finishing: Matt Protection Category: IP20 Accessories: Adaptor for panel mounting Note: AC ; feature for centralized off command
Switches, Dimmers, and Buttons

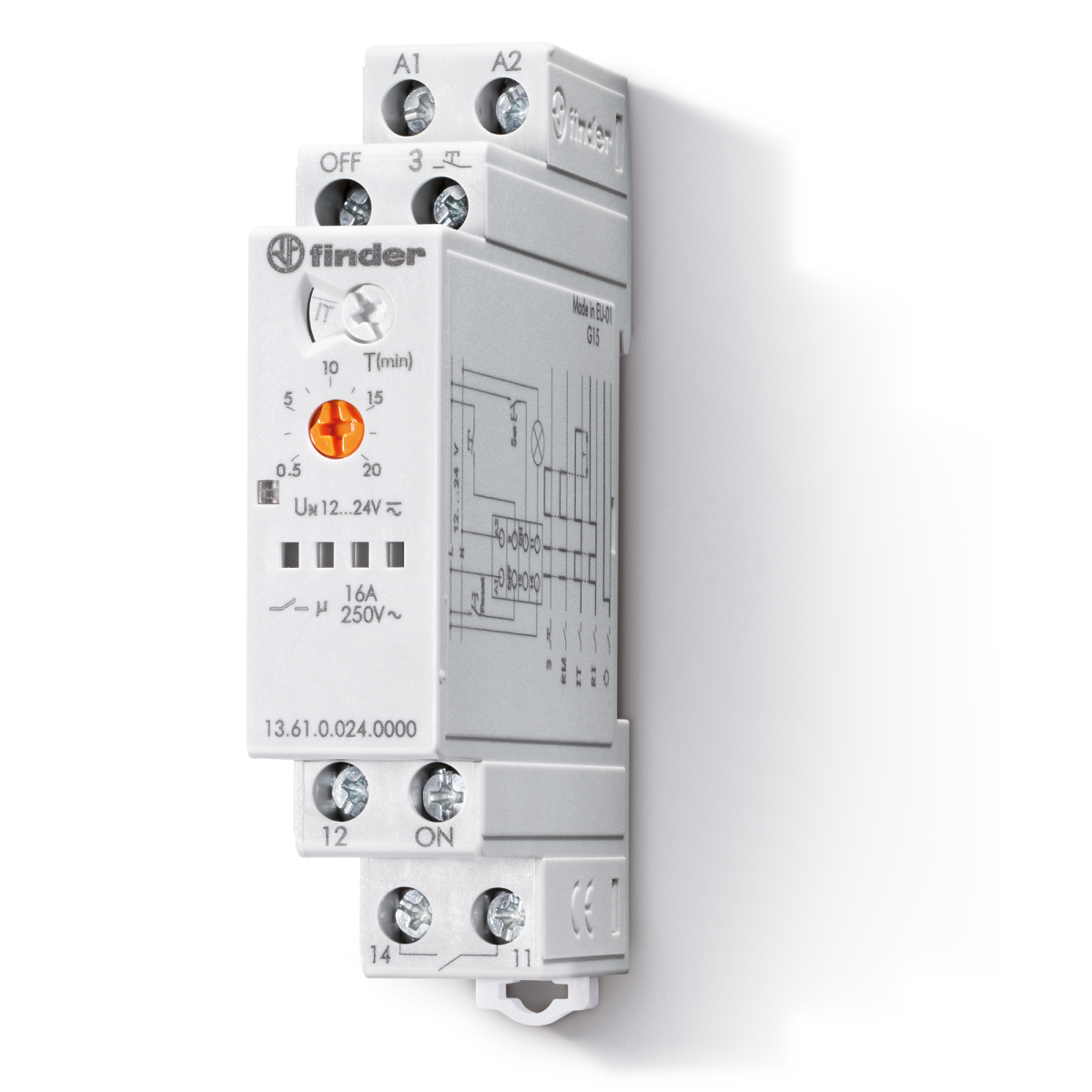

ELECTRONIC STEP RELAY OFF
Nortécnica Ref:
EAN:
8012823377117
Description
Technical Information
Attributes
Nominal voltage
250
Mounting method
DRA (DIN-rail adaptor)
Assembly arrangement
Control element
Colour
White
Model
Relay
Surface protection
Rated current
16
Number of channels
1
Frequency
50
60
Material quality
Thermoplastic
Type of load
Universal
Material
Plastic
Type of fastening
Clamp mounting
Light value memory
No
Substation input
No
RAL-number similar
7035
Switch capacity HVAC
3000
3000
Applicable with movement sensor
Yes
Applicable with transmission button
No
Applicable with infrared button
No
Applicable with presence indicator
Yes
Applicable with button
Yes
Applicable with time switchtimer
Yes
Switch capacity
3000
3000
Power loss
Transparent
No
Surface finishing
Matt
IFTTT support available
No
Min. depth of built-in installation box
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Brands
80127
Descrição Longa
Multifunction step/monostable relays Nr.contacts: 1 Contacts configuration: NO Contact Material: AgSnO2 Nominal voltage: 250 V. Mounting method: DRA (DIN-rail adapter) Assembly arrangement: Control element Colour: White Model: Relay Rated current: 16 A. Frequency: from 50 to 60 Hz. Material quality: Thermoplastic Type of load: Universal Material: Plastic Type of fastening: Clamp mounting Light value memory: no RAL-number (similar): 7035 Switch capacity HVAC: 3000 W. Applicable with movement sensor: yes Applicable with transmission button: no Applicable with presence indicator: yes Applicable with button: yes Applicable with time switch/timer: yes Switch capacity: 3000 W. Transparent: no Surface finishing: Matt Protection Category: IP20 Accessories: Adaptor for panel mounting Note: AC ; feature for centralized off command
