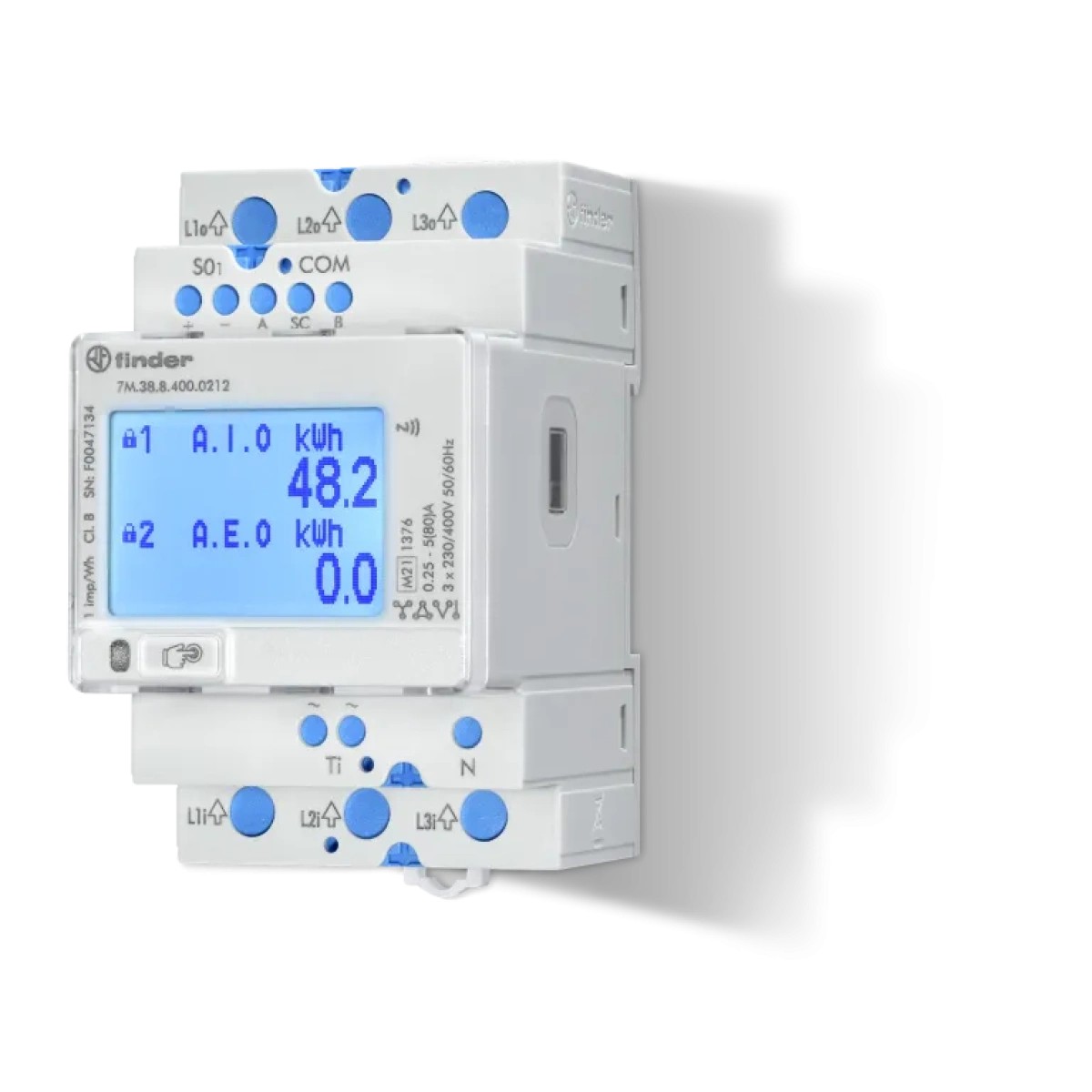

3-PH ENERGY METER 80A DIR MID RS485

Energy meters Model: Direct measurement Suitable for: Purchase/supply Type of indication: Digital Frequency: from 50 to 60 Hz. Max. current (Imax): 80 A. Width in number of modular spacings: 3 Number of positions total (counter): 7 Type of meter: Electronic Protection category: IP50 Type of interface: RS-485 Energy type: Effective power and blind power Tariff type: Multi-tariff Tariff control: Internal/external Escapement mechanism: yes Calibrated: yes Approval: Measuring Instruments Directive Pulse output: Electrical Pulse type: S0 Pulse rate: 500 Imp/kWh (kvarh). Accuracy class: B Pole type: Three conductor/four conductor With lock code: yes Nominal voltage (Un) N-L: from 184 to 265 V. Nominal current (In): 5 A.
