Time switches Nr.contacts: 1 Contacts configuration: CO Contact Material: AgCdO Mounting method: Panel mounting 72x72 mm Number of channels: 1 Weekly program: no Annual program: no Width in number of modular spacings: 4 60 min program: no 24 h program: yes Mains synchronous: no Quartz controlled: no Automatic switching summer-/winter time: no Suitable for manual operation: yes Voltage type of supply voltage: AC Potential free switch contact: yes Supply voltage: from 120 to 230 V. Frequency supply voltage: from 50 to 60 Hz. Autonomy in hours: 100 Shortest switching time channel 1: 15 min. Nominal switching current at 250 V AC: 16 A. Program shift divide 1: 96 min. Protection category: IP20 Accuracy per day: 1.5 s.
Management and Measuring Devices

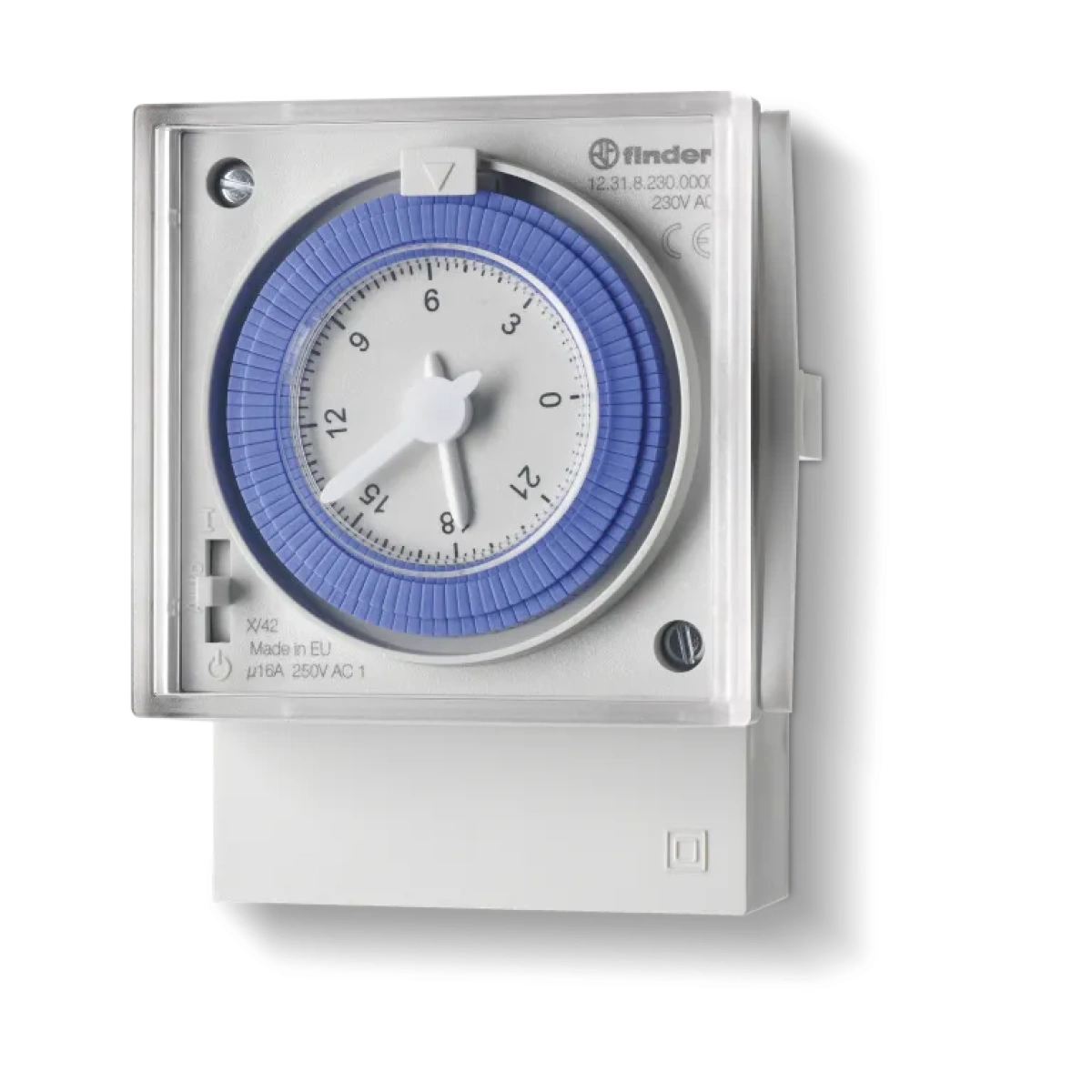

DAILY TIME SWITCH 72X72
Nortécnica Ref:
EAN:
8012823329970
Description
Technical Information
Attributes
Mounting method
Panel mounting 72x72 mm
Largura
72
Altura
91.5
Profundidade
51.4
Número de canais
1
Weekly program
No
Annual program
No
Contact type
Largura em número de módulos
4
60 min program
No
24 h program
Yes
Mains synchronous
No
Quartz controlled
No
Automatic switching summerwinter time
No
Suitable for manual operation
Yes
Switching preselection
No
Voltage type supply voltage
AC
Potential free switch contact
Yes
Supply voltage
120
230
Frequency supply voltage
50
60
Autonomia em anos
-
Autonomia em horas
100
EF004855
15
EF004856
-
Corrente nominal de comutação a 250 V CA
16
Divisão por segmento de programa 1
96
Divisão por segmento de programa 2
-
Degree of protection IP
IP20
Precisão diária
1.5
Potência máxima do LED
-
Canal de tempo de comutação mais curto 1
Canal de tempo de comutação mais curto 2
Brands
80127
Descrição Longa
Time switches Nr.contacts: 1 Contacts configuration: CO Contact Material: AgCdO Mounting method: Panel mounting 72x72 mm Number of channels: 1 Weekly program: no Annual program: no Width in number of modular spacings: 4 60 min program: no 24 h program: yes Mains synchronous: no Quartz controlled: no Automatic switching summer-/winter time: no Suitable for manual operation: yes Voltage type of supply voltage: AC Potential free switch contact: yes Supply voltage: from 120 to 230 V. Frequency supply voltage: from 50 to 60 Hz. Autonomy in hours: 100 Shortest switching time channel 1: 15 min. Nominal switching current at 250 V AC: 16 A. Program shift divide 1: 96 min. Protection category: IP20 Accuracy per day: 1.5 s.
