Electronic staircase timers Nr.contacts: 1 Contacts configuration: NO Contact Material: AgSnO2 Mounting method: DIN rail Function: Electronic with multi function Release-delay: from 0.5 to 20 min. Width in number of modular spacings: 1 Control voltage 1: 230 V. Type of control voltage 1: AC Wiring system: 3 and 4 wire configuration Pre-warning of switching-off: Flickering Repetitive: Repetitive + continuous light + time extension Voltage type of supply voltage: AC Supply voltage: 230 V. Max. incandescent lamp load: 3000 W. Max. load fluorescent lamp: 1000 VA. Rated switch current: 16 A. Protection Category: IP20
Management and Measuring Devices

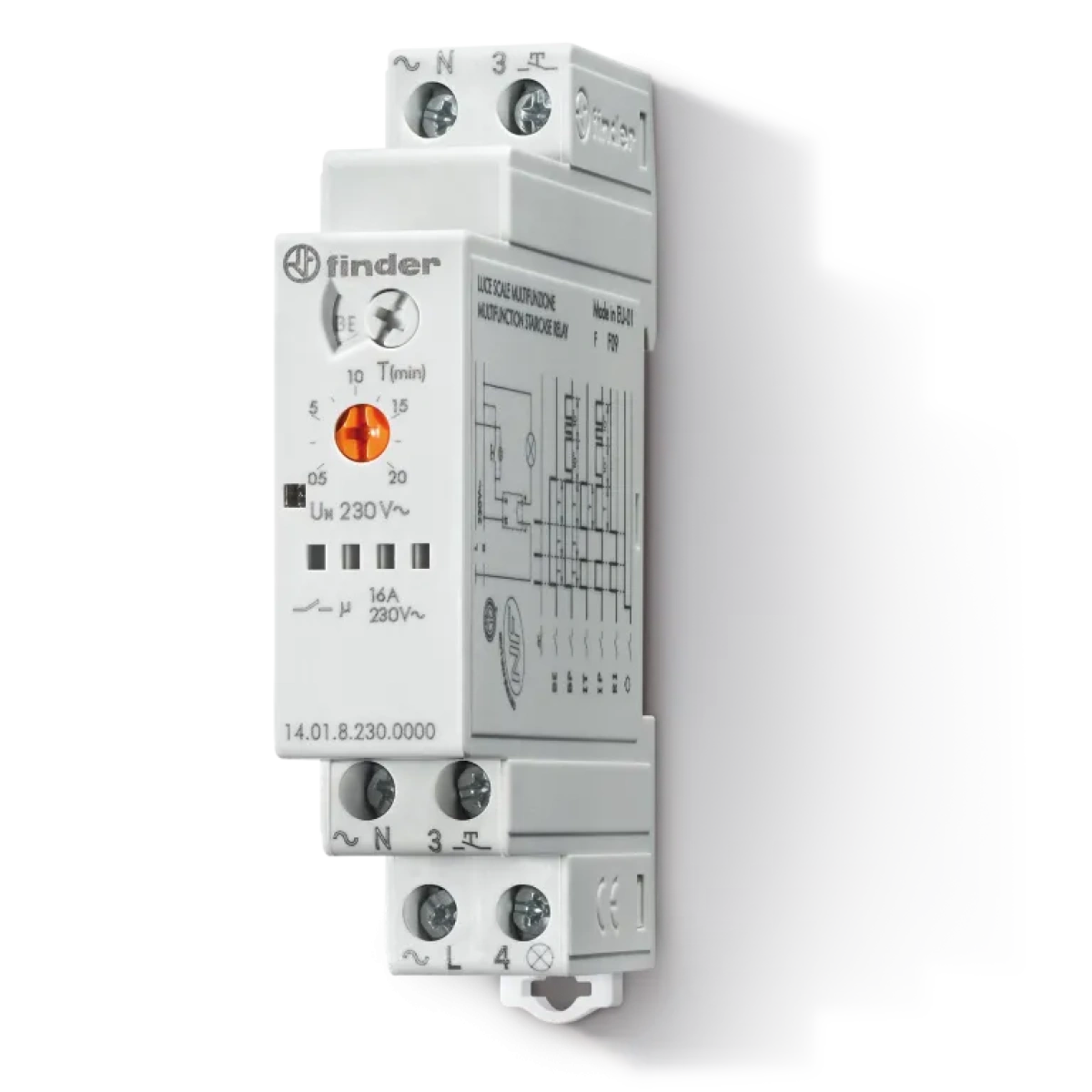

ELECTRONIC STAIRCASE TIMER
Nortécnica Ref:
EAN:
8012823236742
Description
Technical Information
Attributes
Mounting method
DIN rail
Function
Electronic with multi function
Profundidade incorporada
-
Power consumption
Release-delay
0.5
20
Largura em número de módulos
1
Control voltage 1
230
230
Control voltage 2
-
-
Type of control voltage 1
AC
Type of control voltage 2
Frequency control voltage 1
-
-
Frequency control voltage 2
-
-
Wiring system
3 and 4 wire configuration
Prewarning of switchingoff
Flickering
Repetitive
Repetitive + continuous light + time extension
Voltage type supply voltage
AC
Supply voltage
230
230
Máx. corrente de comutação cos phi 0,6
-
Carga máxima lâmpada incandescente
3000
Carga máxima lâmpada fluorescente
1000
Carga máxima lâmpada fluorescente circuito Duo
-
Carga máxima lâmpada fluorescente compensada em paralelo
-
Corrente estipulada do interruptor
16
Corrente do botão de pressão da lâmpada incandescente
-
Current surge function selectable
No
Número de contatos como contato normalmente fechado
0
Número de contatos como contato normalmente aberto
1
Número de contatos como inversores
0
Potência máxima do LED
-
Brands
80127
Descrição Longa
Electronic staircase timers Nr.contacts: 1 Contacts configuration: NO Contact Material: AgSnO2 Mounting method: DIN rail Function: Electronic with multi function Release-delay: from 0.5 to 20 min. Width in number of modular spacings: 1 Control voltage 1: 230 V. Type of control voltage 1: AC Wiring system: 3 and 4 wire configuration Pre-warning of switching-off: Flickering Repetitive: Repetitive + continuous light + time extension Voltage type of supply voltage: AC Supply voltage: 230 V. Max. incandescent lamp load: 3000 W. Max. load fluorescent lamp: 1000 VA. Rated switch current: 16 A. Protection Category: IP20
