Electronic staircase timers Nr.contacts: 1 Contacts configuration: NO Contact Material: AgSnO2 Mounting method: DIN rail Function: Electronic Release-delay: from 0.5 to 20 min. Width in number of modular spacings: 1 Control voltage 1: 230 V. Type of control voltage 1: AC Wiring system: 3 and 4 wire configuration Pre-warning of switching-off: Flickering Repetitive: Repetitive + continuous light + time extension Voltage type of supply voltage: AC Supply voltage: 230 V. Max. incandescent lamp load: 1000 W. Max. load fluorescent lamp: 500 VA. Rated switch current: 10 A. Protection Category: IP20
Management and Measuring Devices

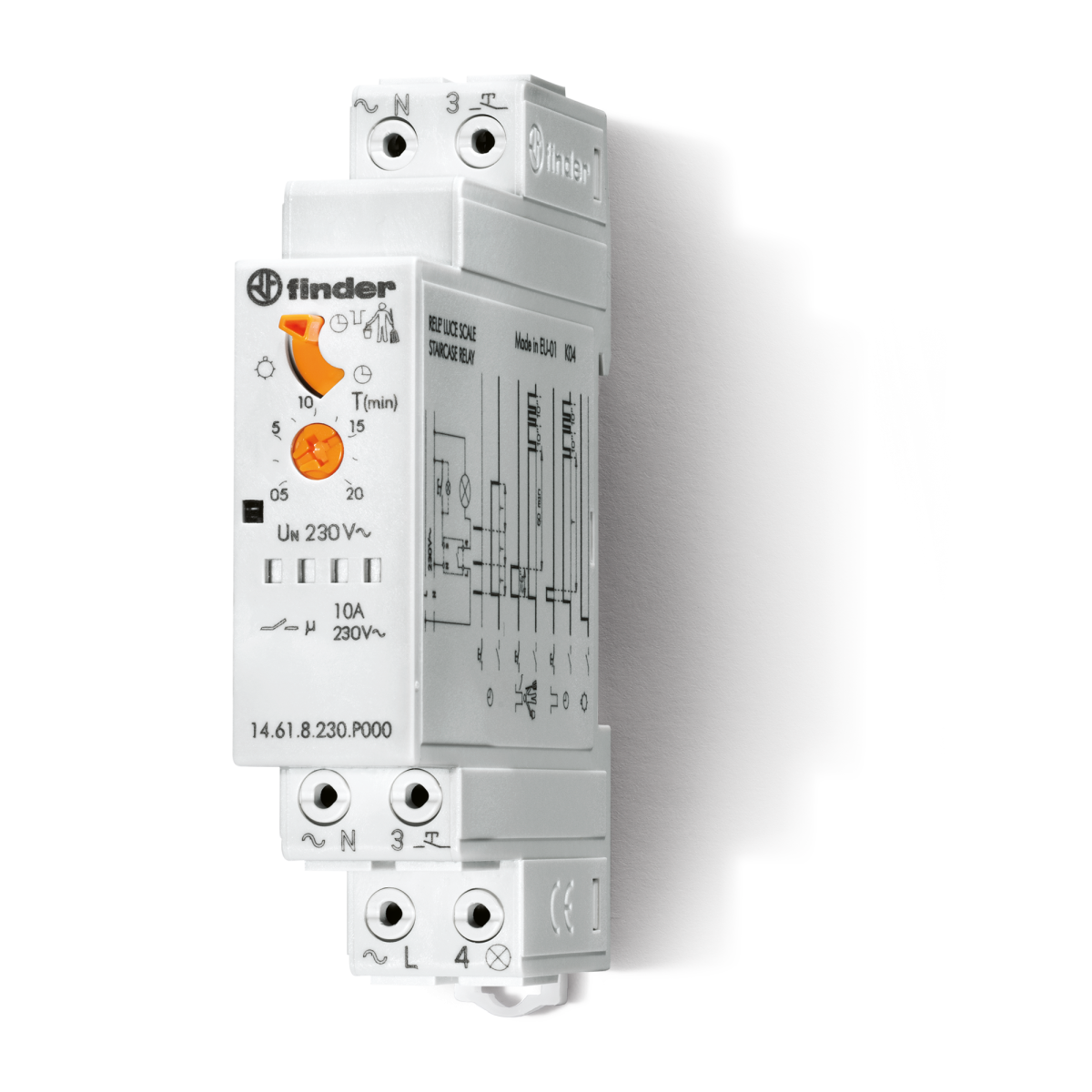

ELECTRONIC STAIRCASE TIMER PUSH-IN
Nortécnica Ref:
EAN:
8012823421261
Description
Technical Information
Attributes
Mounting method
DIN rail
Function
Electronic
Built-in depth
-
Power consumption
Release-delay
0.5
20
Width in number of modular spacings
1
Control voltage 1
230
230
Control voltage 2
-
-
Type of control voltage 1
AC
Type of control voltage 2
Frequency control voltage 1
-
-
Frequency control voltage 2
-
-
Wiring system
3 and 4 wire configuration
Pre-warning of switching-off
Flickering
Repetitive
Repetitive + continuous light + time extension
Voltage type supply voltage
AC
Supply voltage
230
230
Max. switching current cos phi 0.6
-
Max. incandescent lamp load
1000
Max. load fluorescent lamp
500
Max. load fluorescent lamp Duo circuit
-
Max. load fluorescent lamp parallel compensated
-
Rated switch current
10
Push button glow-lamp current
-
Current surge function selectable
No
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Max. switching power LED
-
