Energy meters Model: Direct measurement Suitable for: Purchase Type of indication: Analogue Frequency: 50 Hz. Max. current (Imax): 25 A. Width in number of modular spacings: 2 Number of positions total (counter): 6 Type of meter: Electromechanical Protection category: IP50 Type of interface: None Energy type: Effective power Tariff type: One-tariff Tariff control: External Escapement mechanism: yes Calibrated: no Approval: Domestic Pulse output: Electrical Pulse type: S0 Pulse rate: 1000 Imp/kWh (kvarh). Accuracy class: B Pole type: Single phase With lock code: no Nominal voltage (Un) N-L: from 184 to 264 V. Nominal current (In): 10 A. Accessories: Tamper-proof cover with lead seal facility availabes Note: Montaggio su barra 35 mm (EN 60715)
Management and Measuring Devices

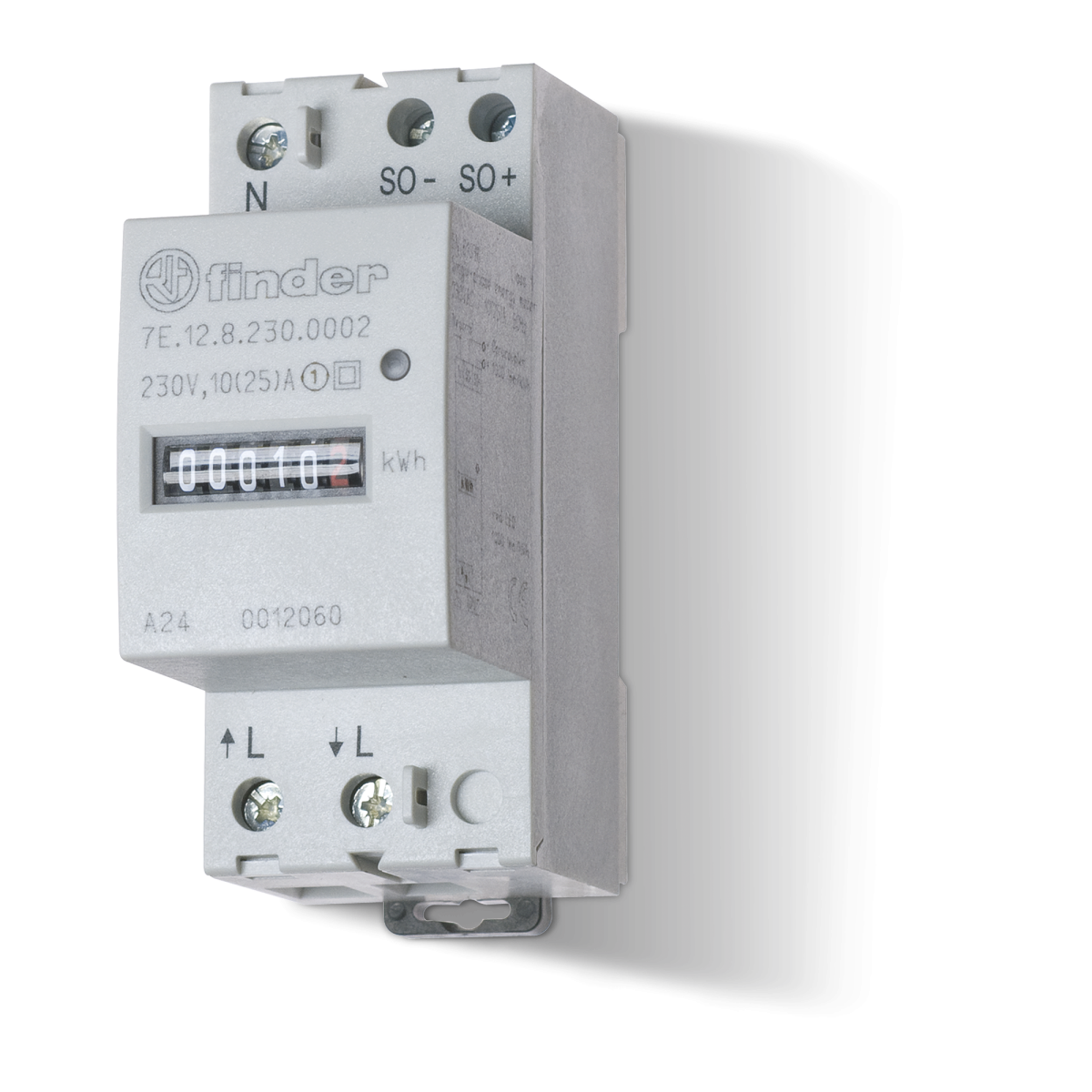

ENERGY METER
Nortécnica Ref:
EAN:
8012823323558
Description
Technical Information
Attributes
Mounting method
Largura
35
Model
Direct measurement
Altura
85.5
Profundidade
56.5
Suitable for
Purchase
Type of indication
Analogue
Power consumption
Frequency
50
50
Max. current Imax
25
Width in number of modular spacings
2
Número total de posições contador
6
Type of meter
Electromechanical
Degree of protection IP
IP50
Type of interface
None
Energy type
Effective power
Tariff type
One-tariff
Tariff control
External
Escapement mechanism
Yes
Calibrated
No
Approval
Domestic
Pulse output
Electrical
Pulse type
S0
Pulse rate
1000
1000
Accuracy class
B
Pole type
Single phase
Measurement type load profile
No
EEC40 signature
No
With lock code
No
Nominal voltage Un N-L
184
264
Nominal voltage Un L-L
-
-
Nominal current In
10
Degree of protection NEMA
Brands
