Energy meters Model: Measurement transformer Suitable for: Purchase/supply Type of indication: Digital Frequency: from 50 to 60 Hz. Max. current (Imax): 6 A. Width in number of modular spacings: 4 Number of positions total (counter): 8 Type of meter: Electronic Protection category: IP50 Type of interface: Other Energy type: Effective power and blind power Tariff type: Two-tariff Tariff control: External Escapement mechanism: yes Calibrated: yes Approval: Measuring Instruments Directive Pulse output: Electrical Pulse type: S0 Pulse rate: 1000 Imp/kWh (kvarh). Accuracy class: B Pole type: Three conductor/four conductor With lock code: no Nominal voltage (Un) N-L: from 184 to 276 V. Nominal current (In): 1 A. Accessories: Tamper-proof cover with lead seal facility availabes Note: Montaggio su barra 35 mm (EN 60715)
Management and Measuring Devices

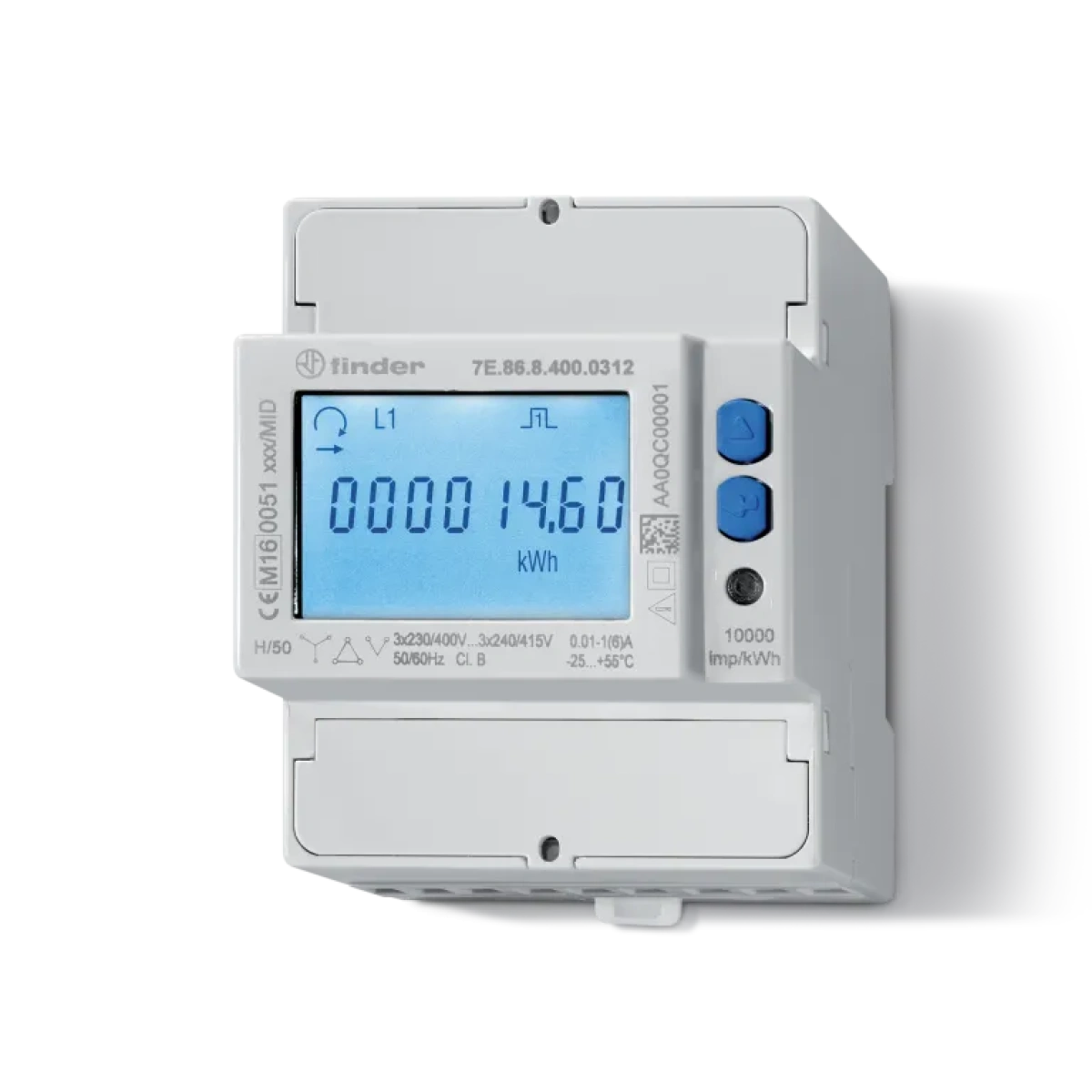

ENERGY METER FOR C.T., ELECTRONIC
Nortécnica Ref:
EAN:
8012823412672
Description
Technical Information
Attributes
Mounting method
Largura
72
Model
Measurement transformer
Altura
91
Profundidade
63.5
Suitable for
Purchase/supply
Type of indication
Digital
Power consumption
Frequency
50
60
Max. current Imax
6
Width in number of modular spacings
4
Número total de posições contador
8
Type of meter
Electronic
Degree of protection IP
IP50
Type of interface
Other
Energy type
Effective power and reactive power
Tariff type
Two-tariff
Tariff control
External
Escapement mechanism
Yes
Calibrated
Yes
Approval
Measuring Instruments Directive
Pulse output
Electrical
Pulse type
S0
Pulse rate
1000
1000
Accuracy class
B
Pole type
Three conductor/four conductor
Measurement type load profile
No
EEC40 signature
No
With lock code
No
Nominal voltage Un N-L
184
276
Nominal voltage Un L-L
320
498
Nominal current In
1
Degree of protection NEMA
