Light dependent relay Nr.contacts: 2 Contacts configuration: NO Contact Material: AgSnO2 Nominal voltage: 120 V. Mounting method: Surface mounted (plaster) Colour: White Halogen free: yes Surface protection: Untreated Switching-on delay: 15 s. Switch-off delay: 30 s. Swivelling: no Material quality: Thermoplastic Max. switching current (resistive load): 16 A. Max. switching power: 3700 W. Material: Plastic Operating temperature: from -30 to 70 °C. Switching-off brightness: from 1 to 80 lx. Suitable for C-load: yes Engaging brightness: from 1 to 80 lx. RAL-number (similar): 7035 Type of sensor: Built-in light sensor Transparent: yes Surface finishing: Matt Suitable for degree of protection (IP): IP54 Accessories: Staffa e piastrina monta palo
Management and Measuring Devices

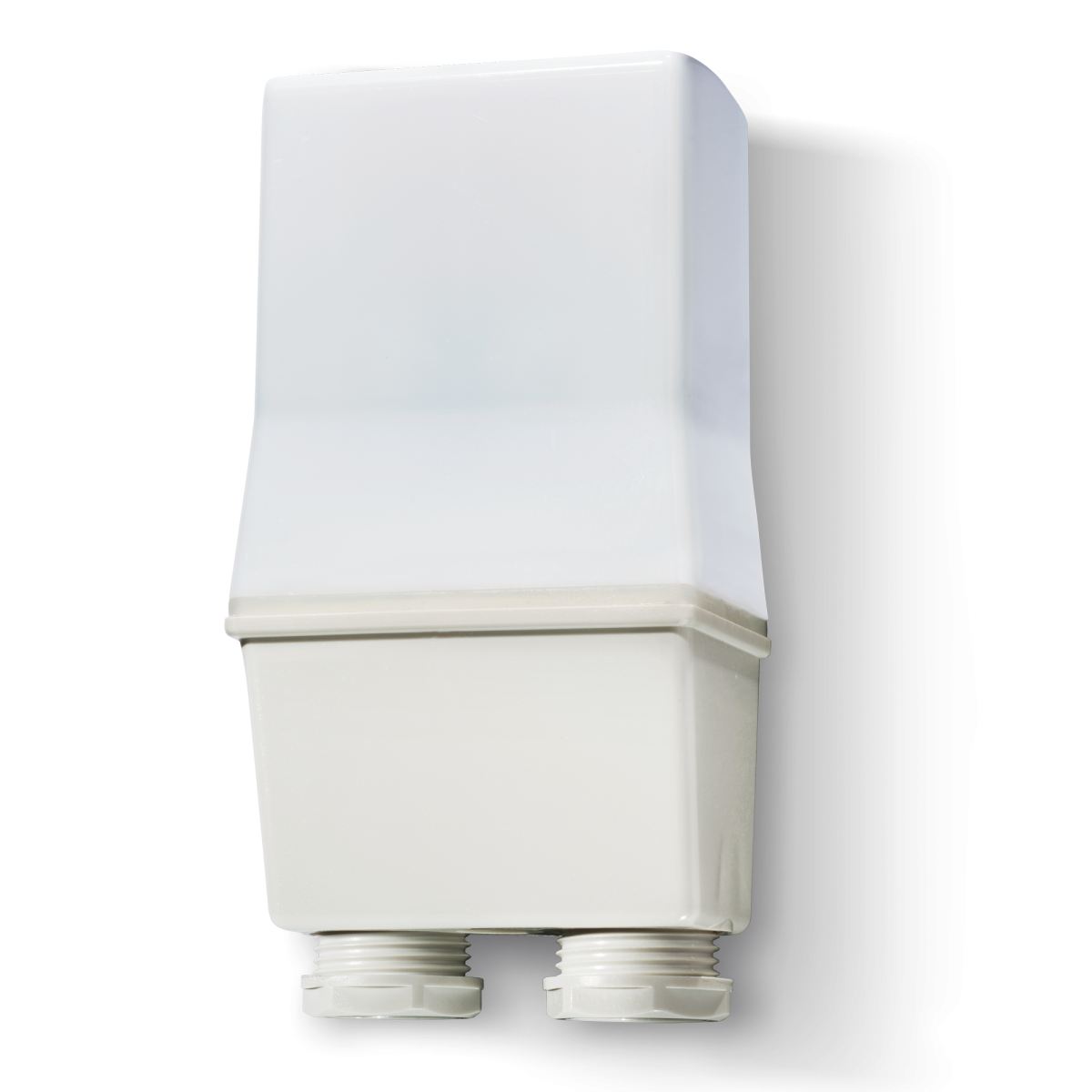

LIGHT DEPENDENT RELAY
Nortécnica Ref:
EAN:
8012823335278
Description
Technical Information
Attributes
Tensão nominal
120
Mounting method
Surface mounted
Colour
White
Largura
58.6
Halogen free
Yes
Contacts
Other
Altura
110.6
Profundidade
36.8
Surface protection
Untreated
Switch-on delay
15
Switch-off delay
30
Swivelling
No
Diâmetro
-
Material quality
Thermoplastic
Max. switching current resistive load
16
Max. switching power
3700
Material
Plastic
Operating temperature
Array
Switching-off brightness
1
80
Suitable for C-load
Yes
Engaging brightness
1
80
RAL-number similar
7035
Type of sensor
Built-in light sensor
Transparent
Yes
Surface finishing
Matt
Suitable for degree of protection IP
IP54
With automatic night switch-off
No
With DALI interface
No
IFTTT support available
No
Min. depth of built-in installation box
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. switching power LED
-
