Light dependent relays Nr.contacts: 1 Contacts configuration: 1 CO + 1 aux output Contact Material: AgSnO2 Nominal voltage: 230 V. Mounting method: Other Colour: White Halogen free: yes Surface protection: Untreated Switching-on delay: 25 s. Switch-off delay: 50 s. Swivelling: no Material quality: Thermoplastic Max. switching current (resistive load): 16 A. Max. switching power: 4000 W. Material: Plastic Operating temperature: from -20 to 50 °C. Switching-off brightness: from 1 to 150 lx. Suitable for C-load: yes Engaging brightness: from 1 to 150 lx. RAL-number (similar): 7035 Type of sensor: Separate light sensor Transparent: no Surface finishing: Matt Suitable for degree of protection (IP): IP20 With automatic night switch-off: yes Accessories: Light sensor and adaptor for panel mounting (supplied with light dependent relay);2-pole connector;power module 19.91
Management and Measuring Devices

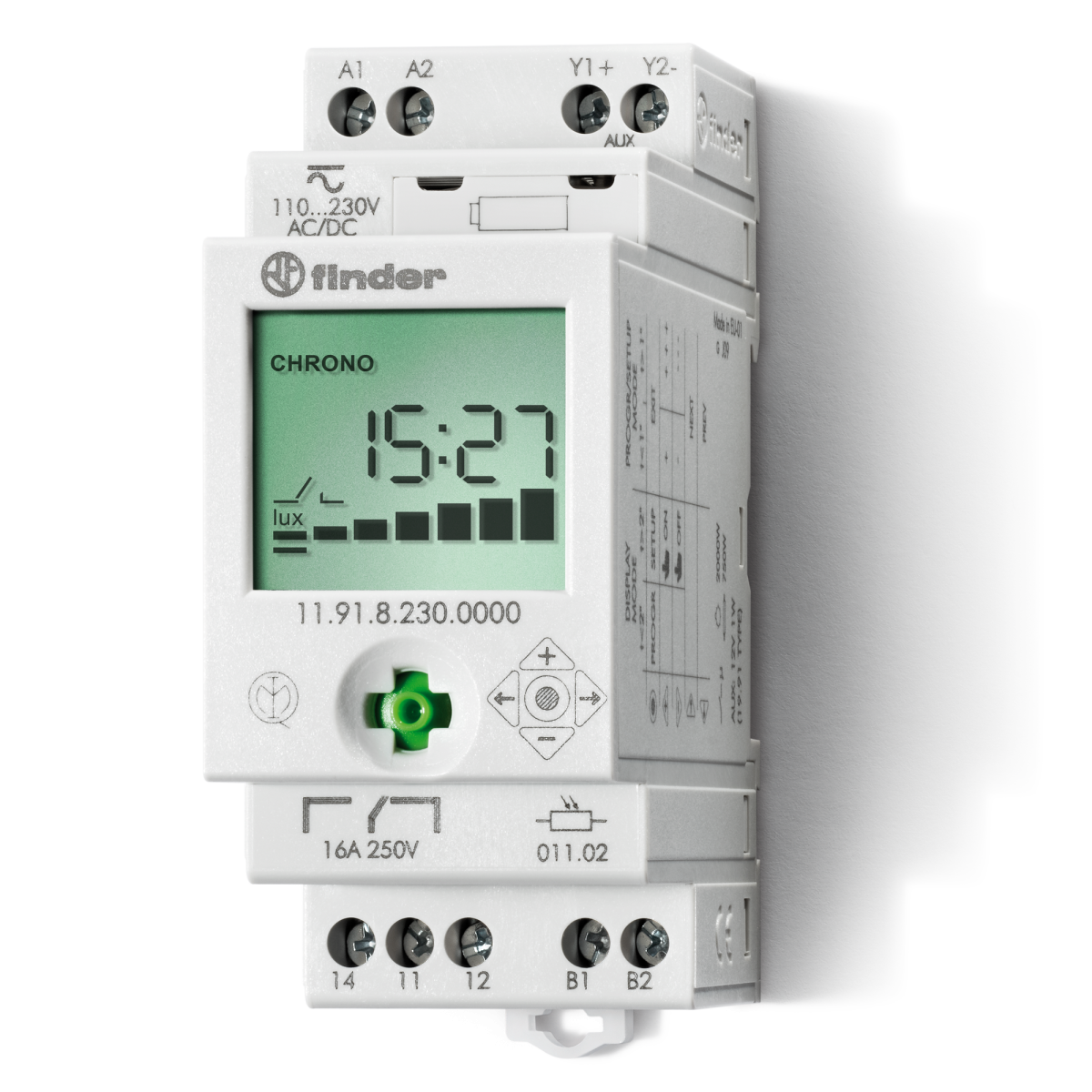

LIGHT DEPENDENT RELAY TIME SWITCH
Nortécnica Ref:
EAN:
8012823347431
Description
Technical Information
Attributes
Tensão nominal
230
Mounting method
Other
Colour
White
Largura
35
Halogen free
Yes
Contacts
1 change-over contact
Altura
84
Profundidade
56.5
Surface protection
Untreated
Atraso na ligação
25
Atraso de desligamento
50
Swivelling
No
Diameter
-
Material quality
Thermoplastic
Corrente máxima de interrupção carga resistiva
16
Potência de comutação máxima
4000
Material
Plastic
Operating temperature
Array
Switching-off brightness
1
150
Suitable for C-load
Yes
Engaging brightness
1
150
Número RAL semelhante
7035
Type of sensor
Separate light sensor
Transparent
No
Surface finishing
Matt
Suitable for degree of protection IP
IP20
With automatic night switch-off
Yes
EF009569
No
IFTTT support available
No
Min. profundidade da caixa de instalação embutida
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Potência máxima do LED
400
Brands
80127
Descrição Longa
Light dependent relays Nr.contacts: 1 Contacts configuration: 1 CO + 1 aux output Contact Material: AgSnO2 Nominal voltage: 230 V. Mounting method: Other Colour: White Halogen free: yes Surface protection: Untreated Switching-on delay: 25 s. Switch-off delay: 50 s. Swivelling: no Material quality: Thermoplastic Max. switching current (resistive load): 16 A. Max. switching power: 4000 W. Material: Plastic Operating temperature: from -20 to 50 °C. Switching-off brightness: from 1 to 150 lx. Suitable for C-load: yes Engaging brightness: from 1 to 150 lx. RAL-number (similar): 7035 Type of sensor: Separate light sensor Transparent: no Surface finishing: Matt Suitable for degree of protection (IP): IP20 With automatic night switch-off: yes Accessories: Light sensor and adaptor for panel mounting (supplied with light dependent relay);2-pole connector;power module 19.91
