Light dependent relays Nr.contacts: 2 Contacts configuration: 1 CO + 1 NO Contact Material: AgSnO2 Nominal voltage: 230 V. Mounting method: Other Colour: White Halogen free: yes Surface protection: Untreated Switching-on delay: 15 s. Switch-off delay: 30 s. Swivelling: no Material quality: Thermoplastic Max. switching current (resistive load): 12 A. Max. switching power: 3000 W. Material: Plastic Operating temperature: from -20 to 50 °C. Switching-off brightness: from 1 to 80 lx. Suitable for C-load: yes Engaging brightness: from 1 to 80 lx. RAL-number (similar): 7035 Type of sensor: Separate light sensor Transparent: no Surface finishing: Matt Suitable for degree of protection (IP): IP20 With automatic night switch-off: no Accessories: Light sensor and adaptor for panel mounting (supplied with light dependent relay)
Management and Measuring Devices

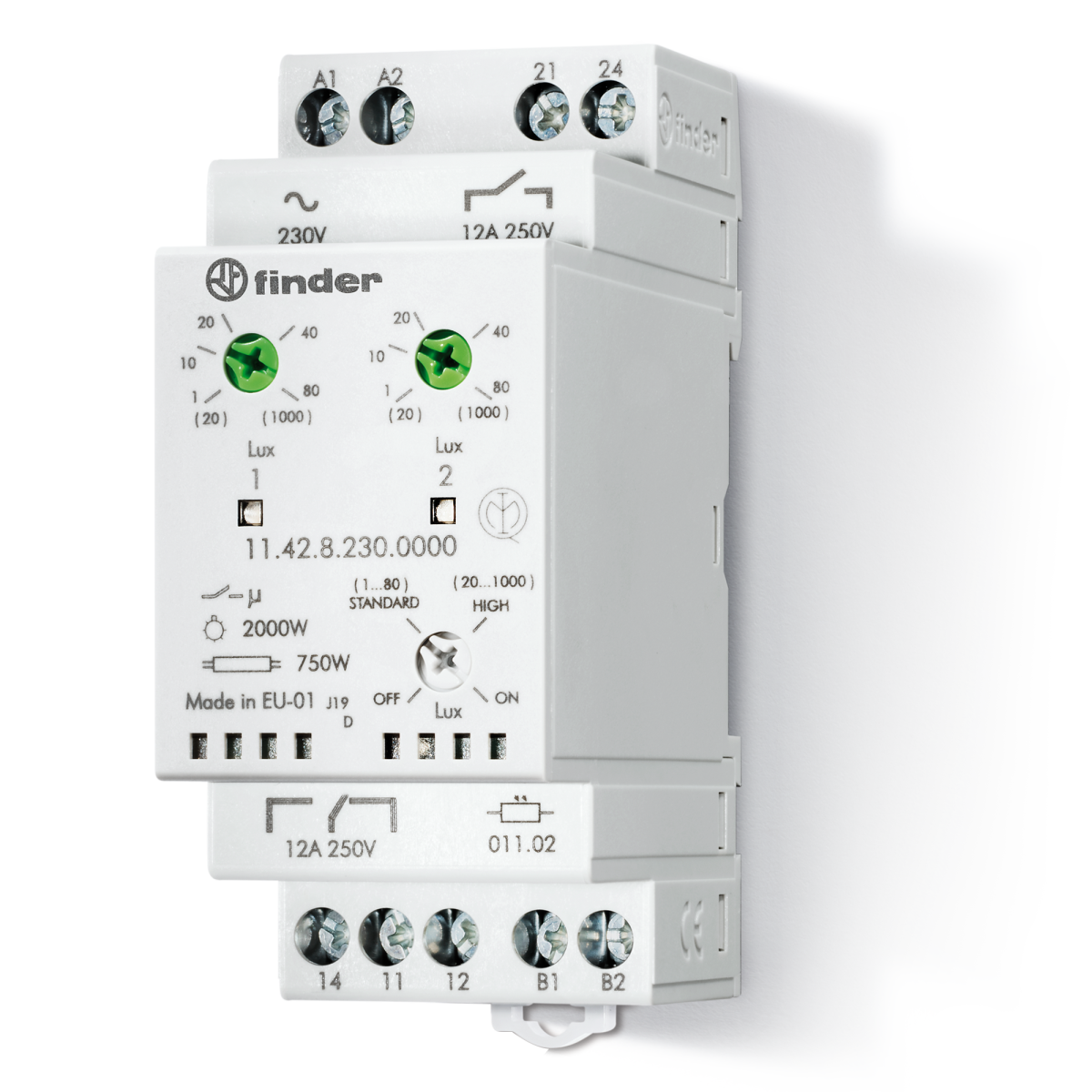

MODULAR LIGHT DEPENDENT RELAY
Nortécnica Ref:
EAN:
8012823347813
Description
Technical Information
Attributes
Tensão nominal
230
Mounting method
Other
Colour
White
Largura
35
Halogen free
Yes
Contacts
Other
Altura
84
Profundidade
56.5
Surface protection
Untreated
Switch-on delay
15
Switch-off delay
30
Swivelling
No
Diâmetro
-
Material quality
Thermoplastic
Max. switching current resistive load
12
Max. switching power
3000
Material
Plastic
Operating temperature
Array
Switching-off brightness
1
80
Suitable for C-load
Yes
Engaging brightness
1
80
RAL-number similar
7035
Type of sensor
Separate light sensor
Transparent
No
Surface finishing
Matt
Suitable for degree of protection IP
IP20
With automatic night switch-off
No
With DALI interface
No
IFTTT support available
No
Min. depth of built-in installation box
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. switching power LED
400
