"kit witty solar 1x22kW 3P RFID com cabo de referência XEV1K22T2SEMCC. O witty solar deve ser instalado em habitações equipadas com painéis fotovoltaicos. Compatível com todos os veículos elétricos, é adequado para carregamentos (solar ou rede) de 2,3kW a 22kW. A gestão do carregamento pode ser definida pelo utilizador, via o gestor de carga flow, de modo a maximizar as poupanças de energia"
Electric Vehicle Chargers

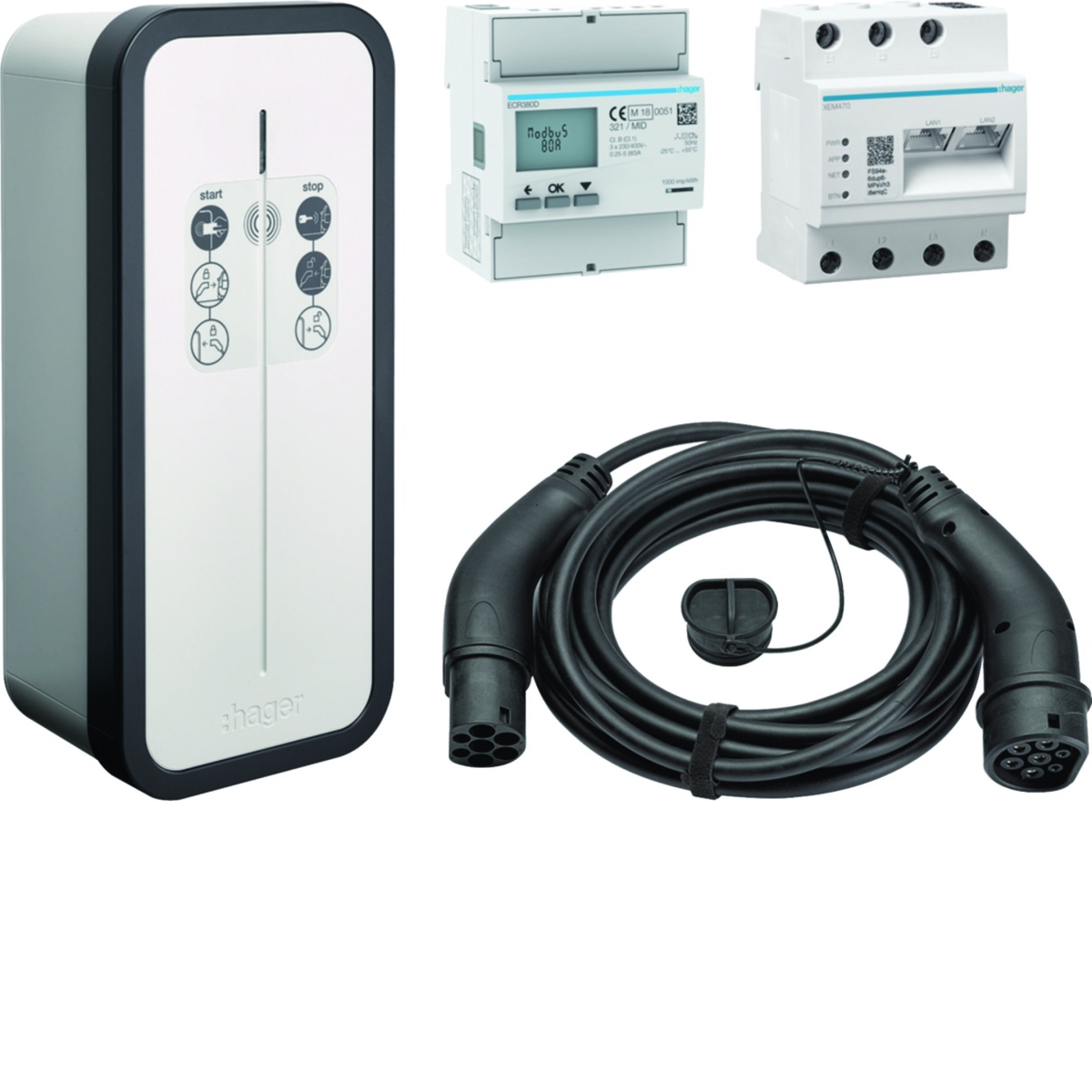

kit witty solar 1x22kW 3P RFID com cabo
Nortécnica Ref:
EAN:
3250610010266
Description
Technical Information
Attributes
Mounting method
EV000868
Largura
250.5
Altura
549
Profundidade
173
With display
No
Suitable for wall mounting
-
Housing material
Plastic
Suitable for tube mounting
-
Nominal connection power
22.08
Voltage type supply voltage
-
Input voltage
230
400
Impact strength
IK10
Frequency
50 Hz
Degree of protection IP
IP55
Número de tomadas CEE
0
Output voltage AC 50 Hz
-
Output voltage AC 60 Hz
-
Output voltage DC
-
Máx. corrente de saída AC 50 Hz
-
Máx. corrente de saída AC 60 Hz
-
Máx. corrente de saída DC
-
Connectable conductor cross section
10
12
Number of charging units
1
With house connection box
No
Number of earth leakage circuit breakers type A
-
Number of earth leakage circuit breakers type B
-
Max. power per charging point
22
Number of vehicle connectors Type 1
0
Number of vehicle connectors Type 1 CCS
0
Number of vehicle connectors Type 2
0
Number of vehicle connectors Type 2 CCS
0
Number of socket outlets Type 2
1
Number of vehicle connectors GB AC
0
Number of vehicle connectors GB DC
0
Number of socket outlets GB
0
Number of socket outlets Type 3
0
Number of vehicle connectors CHAdeMO
0
Number of household socket outlets
0
With energy meter
No
With miniature circuit breaker MCB
No
EF009547
Yes
Portable
-
IFTTT support available
No
With built-in RFID card reader
No
NFC Near Field Communication
No
Networkable via Wi-Fi
-
Length of charging cable
7.5
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Mobile communication standard 5G
No
Mobile communication standard 4G LTE
-
With surge protection module
-
Network-enabled as a master
-
DC residual current detection
Yes
Contactor welding detection
Yes
With key switch
Yes
Export of charging logs
Yes
OpenChargePointProtocoll OCPP version
-
Plug and charge ISO 15118
No
Network-enabled as an extender
No
Charging cable permanently lockable at charging device
Yes
Networkable via LAN
No
With MID compliant energy meter
No
Static load management integrated
Yes
Suitable for dynamic load management
Yes
Backend included
No
Operation and configuration by app
-
Installation side connection model
3-phase
Suitable for floor mounting
-
Compliant with calibration law
No
Brands
Hager
