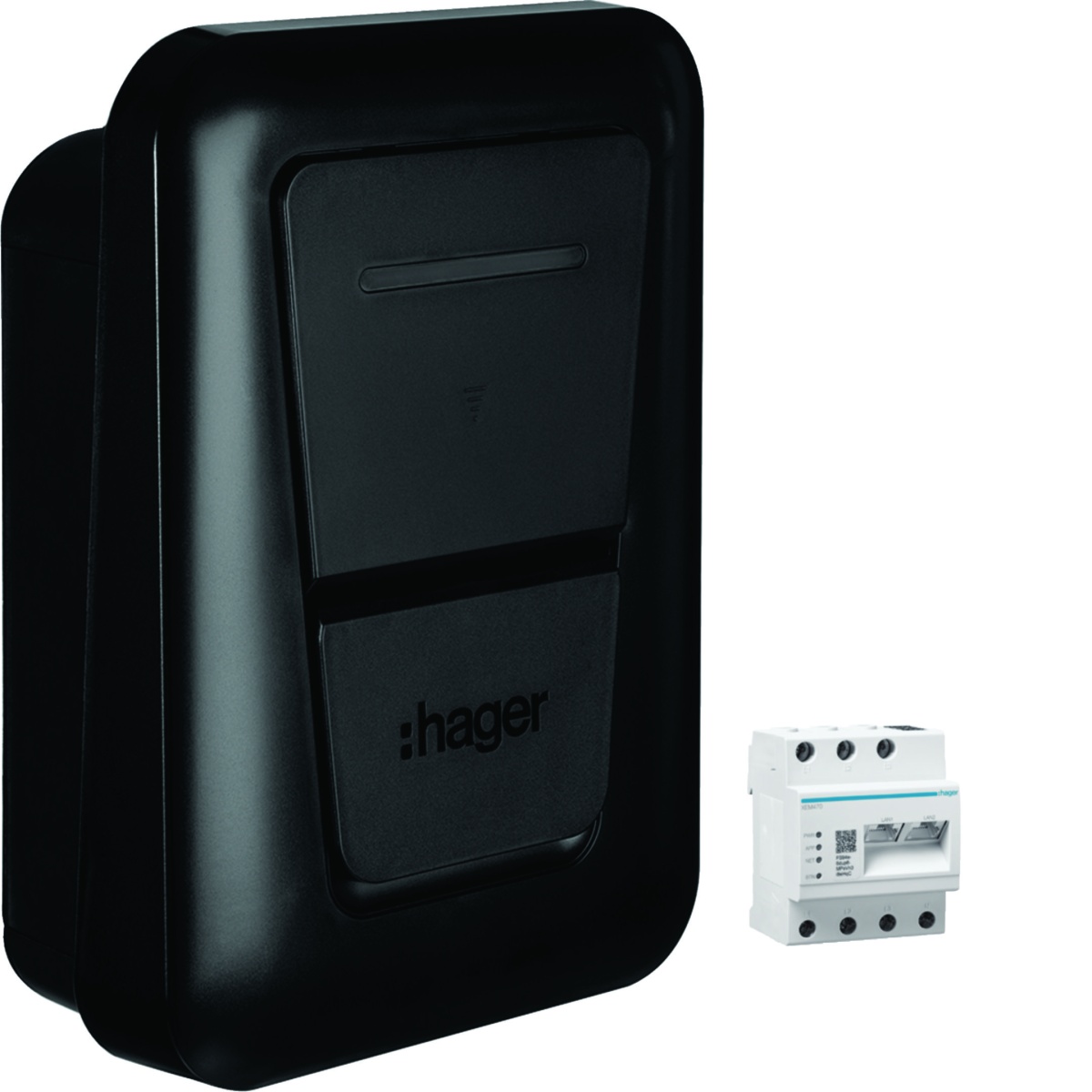

witty plus 1x22kW 3P com tomada de carregamento T2S e flow-GCE
Electric Vehicle Chargers
witty plus 1x22kW 3P T2S cflow-GCE
Nortécnica Ref:
71XVL122SFL
EAN:
3250610094792
Description
Technical Information
Attributes
Mounting method
EV000868
Largura
250
Altura
370
Profundidade
150
With display
No
Suitable for wall mounting
-
Housing material
Plastic
Suitable for tube mounting
-
Nominal connection power
22
Voltage type supply voltage
-
Input voltage
400
440
Impact strength
IK10
Frequency
50/60 Hz
Degree of protection IP
IP55
Número de tomadas CEE
0
Output voltage AC 50 Hz
-
Output voltage AC 60 Hz
-
Output voltage DC
-
Máx. corrente de saída AC 50 Hz
-
Máx. corrente de saída AC 60 Hz
-
Máx. corrente de saída DC
-
Connectable conductor cross section
-
Number of charging units
1
With house connection box
No
Number of earth leakage circuit breakers type A
0
Number of earth leakage circuit breakers type B
0
Max. power per charging point
22
Number of vehicle connectors Type 1
0
Number of vehicle connectors Type 1 CCS
0
Number of vehicle connectors Type 2
0
Number of vehicle connectors Type 2 CCS
0
Number of socket outlets Type 2
1
Number of vehicle connectors GB AC
0
Number of vehicle connectors GB DC
0
Number of socket outlets GB
0
Number of socket outlets Type 3
0
Number of vehicle connectors CHAdeMO
0
Number of household socket outlets
0
With energy meter
Yes
With miniature circuit breaker MCB
No
EF009547
No
Portable
-
IFTTT support available
No
With built-in RFID card reader
Yes
NFC Near Field Communication
-
Networkable via Wi-Fi
Yes
Length of charging cable
0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Mobile communication standard 5G
No
Mobile communication standard 4G LTE
-
With surge protection module
-
Network-enabled as a master
-
DC residual current detection
-
Contactor welding detection
-
With key switch
No
Export of charging logs
Yes
OpenChargePointProtocoll OCPP version
1.6
Plug and charge ISO 15118
No
Network-enabled as an extender
-
Charging cable permanently lockable at charging device
-
Networkable via LAN
Yes
With MID compliant energy meter
Yes
Static load management integrated
Yes
Suitable for dynamic load management
Yes
Backend included
-
Operation and configuration by app
Yes
Installation side connection model
3-phase
Suitable for floor mounting
-
Compliant with calibration law
-
Brands
Hager
