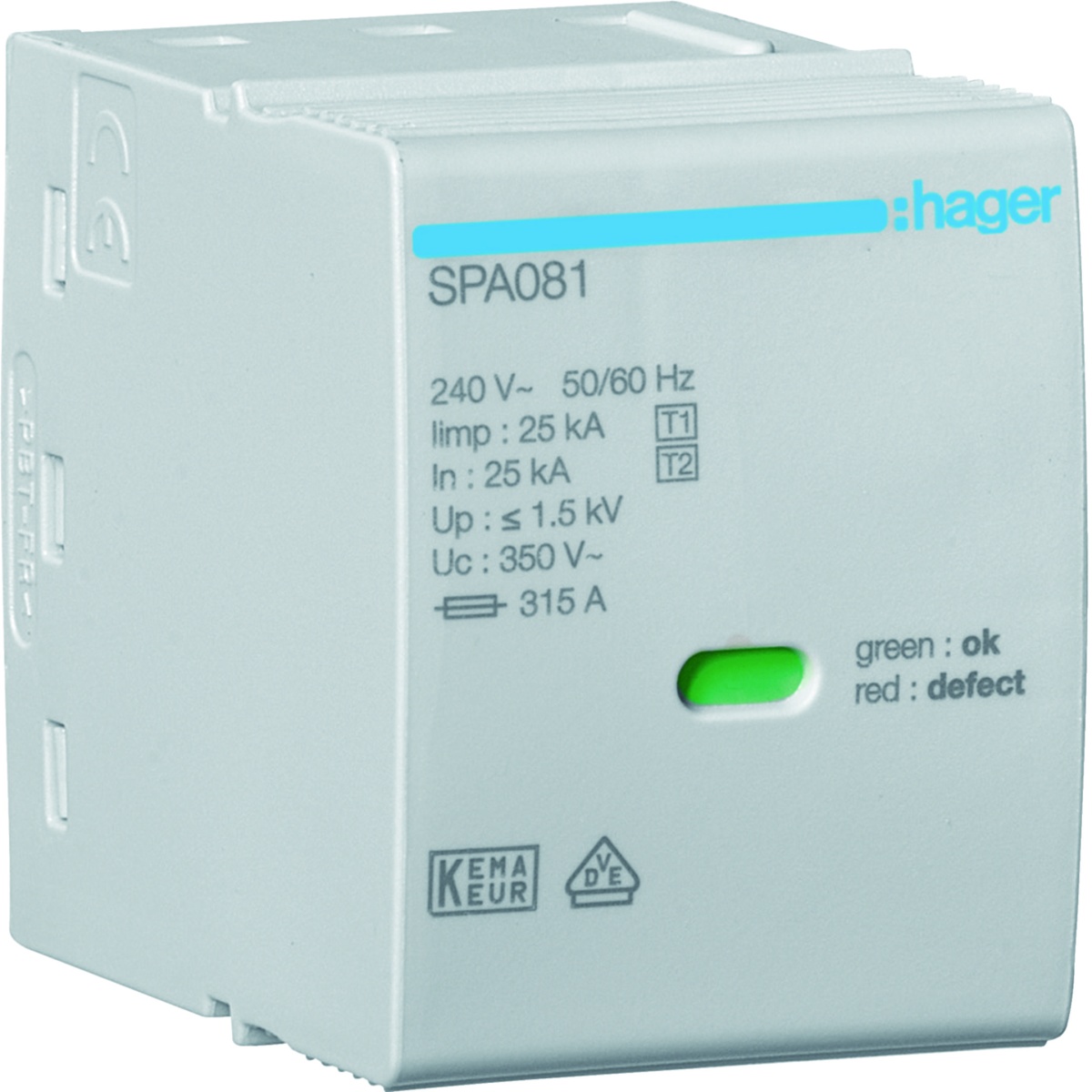

Cart. recarga L-N/PEN 350V 25kA
Surge Arresters
Cart. recarga L-NPEN 350V 25kA
Nortécnica Ref:
EAN:
3250615514820
Description
Technical Information
Attributes
Mounting method
On basic element
Lightning impulse current 10350 µs
25
Number of poles
1
Construction size
2 modular spacing
Nível de proteção de tensão
1.5
Remote signalling
Yes
Follow current extinguishing capability
25
Tensão máxima contínua AC
350
Tensão nominal CA
240
Tensão nominal DC
-
Test class
Type 1 + 2
Nível de proteção L-N
1.5
Signalling at the device
Optical
Máxima tensão DC contínua
-
Degree of protection IP
IP20
Tensão fotovoltaica máx.
0
Nível de proteção de tensão N-PE
-
Integrated backup fuse
No
Secção do condutor rígido máx. monomulti filamento
-
Secção flexível do condutor máx. fio fino
-
Voltage protection level DC - DC-
-
Voltage protection level DCDC- - PE
-
Specific energy WR
160
Energy-coordinated protection effect with regard to the terminal equipment
-
System configuration DC
No
System configuration IT
No
System configuration TN
Yes
System configuration TN-C
No
System configuration TN-S
No
System configuration TT
Yes
System configuration other
No
System configuration TN-C-S
No
Voltage protection level L-PE
-
Proteção de sobreintensidade máx. Ligação em paralelo fusível
-
Proteção de sobreintensidade máx. Ligação em série fusível
-
Voltage switching spark gap technology
-
Overcurrent protected voltage tapping
-
Brands
Hager
Long Description
Cart. recarga L-N/PEN 350V 25kA
