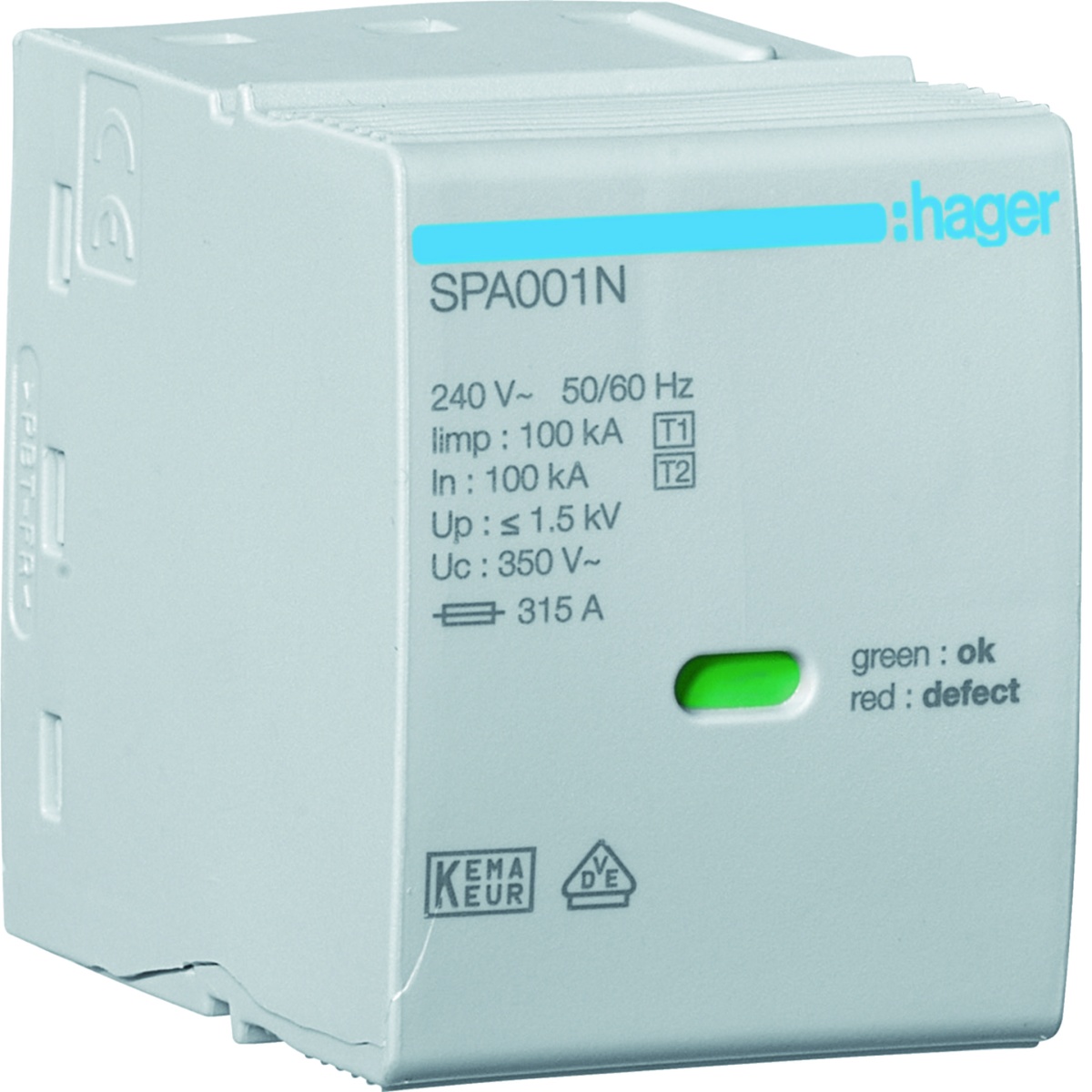

Cart. recarga N-PE 350V 100kA 1.5kV
Surge Arresters
Cart. recarga N-PE 350V 100kA 1.5kV
Nortécnica Ref:
EAN:
3250615514813
Description
Technical Information
Attributes
Mounting method
DIN rail (top hat rail) 35 mm
Lightning impulse current 10350 µs
100
Number of poles
1
Construction size
2 modular spacing
Nível de proteção de tensão
1.5
Remote signalling
No
Follow current extinguishing capability
25
Tensão máxima contínua AC
350
Tensão nominal CA
240
Tensão nominal DC
-
Test class
Type 1 + 2
Nível de proteção L-N
-
Signalling at the device
Optical
Máxima tensão DC contínua
-
Degree of protection IP
IP20
Tensão fotovoltaica máx.
-
Nível de proteção de tensão N-PE
1.5
Integrated backup fuse
No
Secção do condutor rígido máx. monomulti filamento
-
Secção flexível do condutor máx. fio fino
-
Voltage protection level DC - DC-
-
Voltage protection level DCDC- - PE
-
Specific energy WR
2500
Energy-coordinated protection effect with regard to the terminal equipment
-
System configuration DC
No
System configuration IT
No
System configuration TN
Yes
System configuration TN-C
No
System configuration TN-S
No
System configuration TT
Yes
System configuration other
No
System configuration TN-C-S
No
Voltage protection level L-PE
-
Proteção de sobreintensidade máx. Ligação em paralelo fusível
-
Proteção de sobreintensidade máx. Ligação em série fusível
-
Voltage switching spark gap technology
-
Overcurrent protected voltage tapping
-
Brands
Hager
Long Description
Cart. recarga N-PE 350V 100kA 1.5kV
