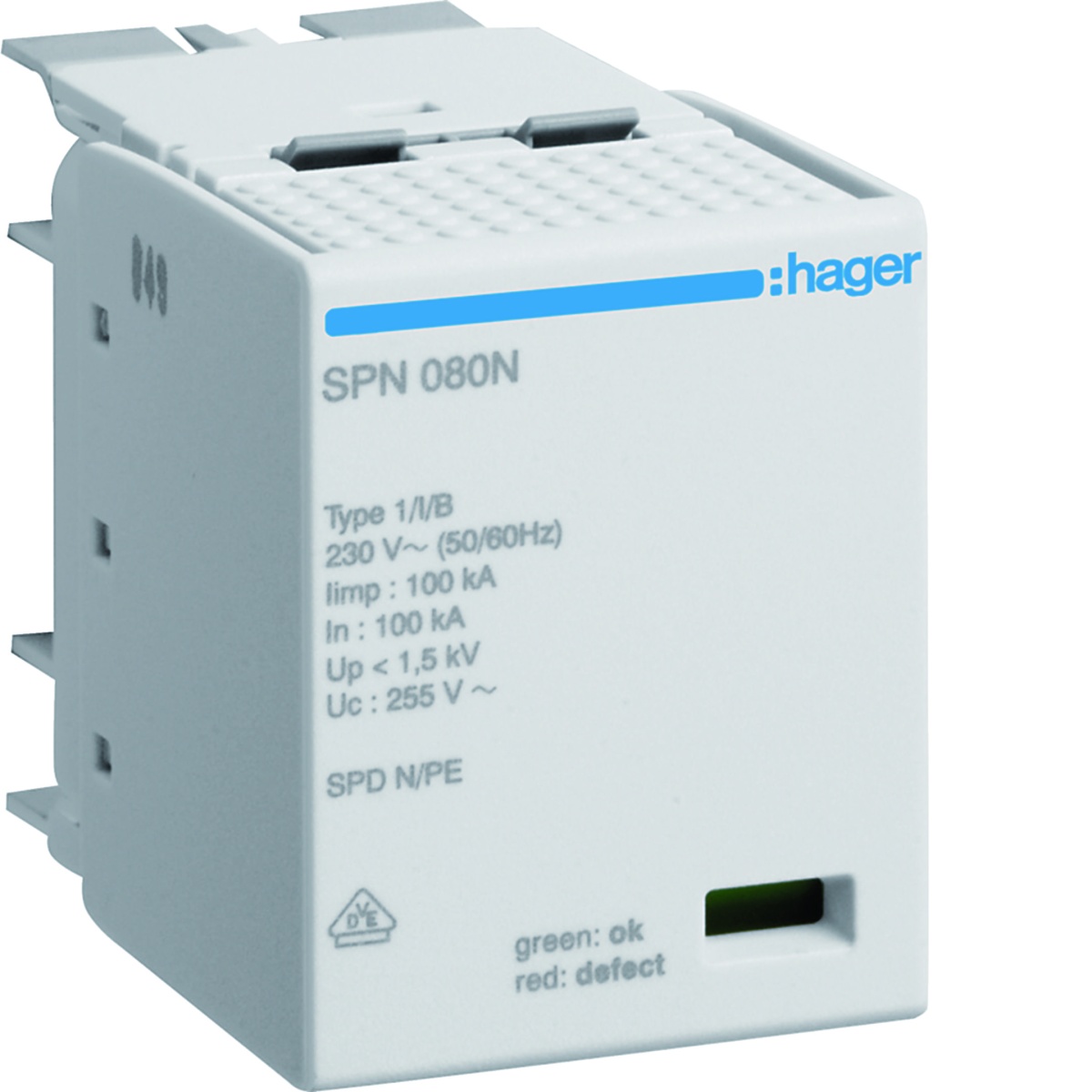

Cartucho de recarga Neutro pSPN802
Surge Arresters
Cartucho de recarga Neutro pSPN802
Nortécnica Ref:
EAN:
3250615660978
Description
Technical Information
Attributes
Mounting method
DIN rail top hat rail 35 mm
Lightning impulse current 10350 µs
25
With remote signalling contact
No
Number of conductors without earthing
-
Construction size
1 modular spacing
Voltage protection level
1.5
Suitable for outdoor use
No
Exhausting
No
Follow current extinguishing capability
-
Max. continuous voltage AC
255
Nominal discharge surge current 820
-
Nominal voltage AC
230
Nominal voltage DC
-
Category type 1
Yes
Voltage protection level L-N
-
Signalling at the device
Optical
Max. continuous voltage DC
-
Degree of protection IP
IP20
Voltage protection level N-PE
-
Integrated backup fuse
-
Max. conductor cross section solid solid, stranded
-
Max. conductor cross section flexible fine-strand
-
Voltage protection level DC - DC-
-
Voltage protection level DCDC- - PE
-
Specific energy WR
-
System configuration DC
No
System configuration IT
No
System configuration TN
Yes
System configuration TN-C
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
System configuration TN-C-S
No
Brands
Hager Sistemas Eléctricos Modulares SA
