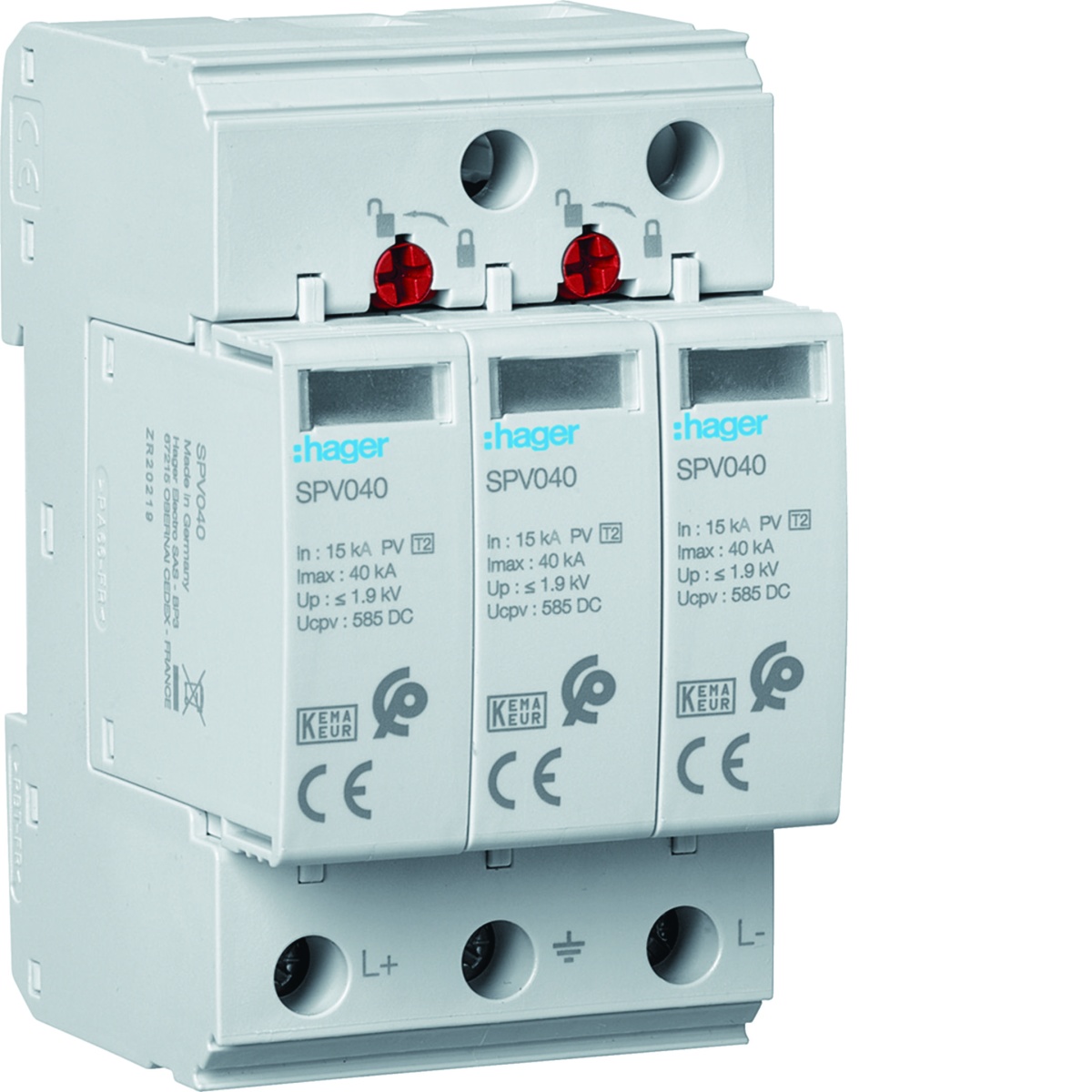

Limit. sobret. T2 2P 40kA fotovoltaico
Surge Arresters
Limit. sobret. T2 2P 40kA fotovoltaico
Nortécnica Ref:
71SPV340
EAN:
3250615514967
Description
Technical Information
Attributes
Mounting method
DIN rail (top hat rail) 35 mm
With remote signalling contact
No
Número de condutores Sem aterramento
2
Construction size
3 modular spacing
Nível de proteção de tensão
3.7
Tensão máxima contínua AC
-
Corrente de descarga nominal 820
15
Tensão nominal CA
-
Tensão nominal DC
1000
Category type 2
Yes
Nível de proteção L-N
3.7
Signalling at the device
Optical
Máxima tensão DC contínua
1170
Degree of protection IP
IP20
Tensão fotovoltaica máx.
0
Nível de proteção de tensão N-PE
3.7
Integrated backup fuse
No
Secção do condutor rígido máx. monomulti filamento
35
Secção flexível do condutor máx. fio fino
25
System configuration DC
Yes
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-S
No
System configuration TT
No
System configuration other
Yes
System configuration TN-C-S
Yes
Corrente de choque de descarga máxima 820
40
Resistência a curto-circuito Isccr
2
Proteção de sobreintensidade máx. Ligação em paralelo fusível
-
Proteção de sobreintensidade máx. Ligação em série fusível
-
Integrated short-circuit protection
No
Proteção contra curto-circuitos seletiva integrada - por fusível gG
-
Leakage-current free
No
Brands
Hager
Descrição Longa
Limit. sobret. T2 2P 40kA fotovoltaico
