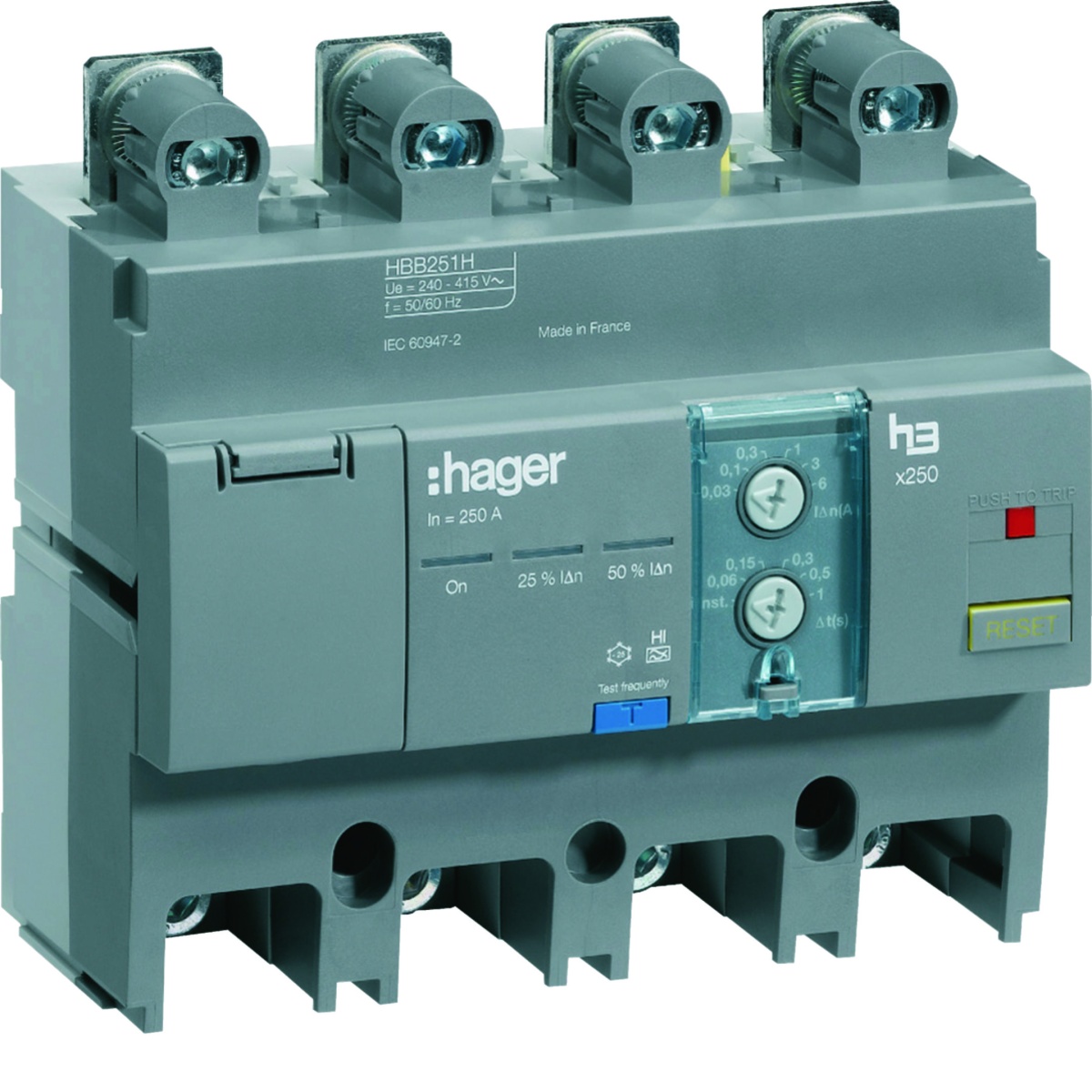

Bloco x250 4P 250A reg. 0,03-6A
Cutting and Protection Devices
Bloco x250 4P 250A reg. 0,03-6A
Nortécnica Ref:
71HBB251H
EAN:
3250613121143
Description
Technical Information
Attributes
Nominal current
250
Rated insulation voltage Ui
500
Number of poles
4
Delay adjustable
Yes
Max. delay time
1000
Leakage current type
Other
Surge current capacity
5
Pollution degree
3
Rated fault current
0.03
6
Nominal voltage
220
415
Power loss
15
Frequency
50/60 Hz
Degree of protection IP
IP40
Connectable conductor cross section solid-core
35
185
Connectable conductor cross section multi-wired
35
150
With interlocking device
Yes
Ambient temperature during operating
-25
70
Rated fault current adjustable
Yes
Anti-nuisance tripping version
Yes
Rated impulse withstand voltage Uimp
6
Brands
Hager
Descrição Longa
Bloco x250 4P 250A reg. 0,03-6A
