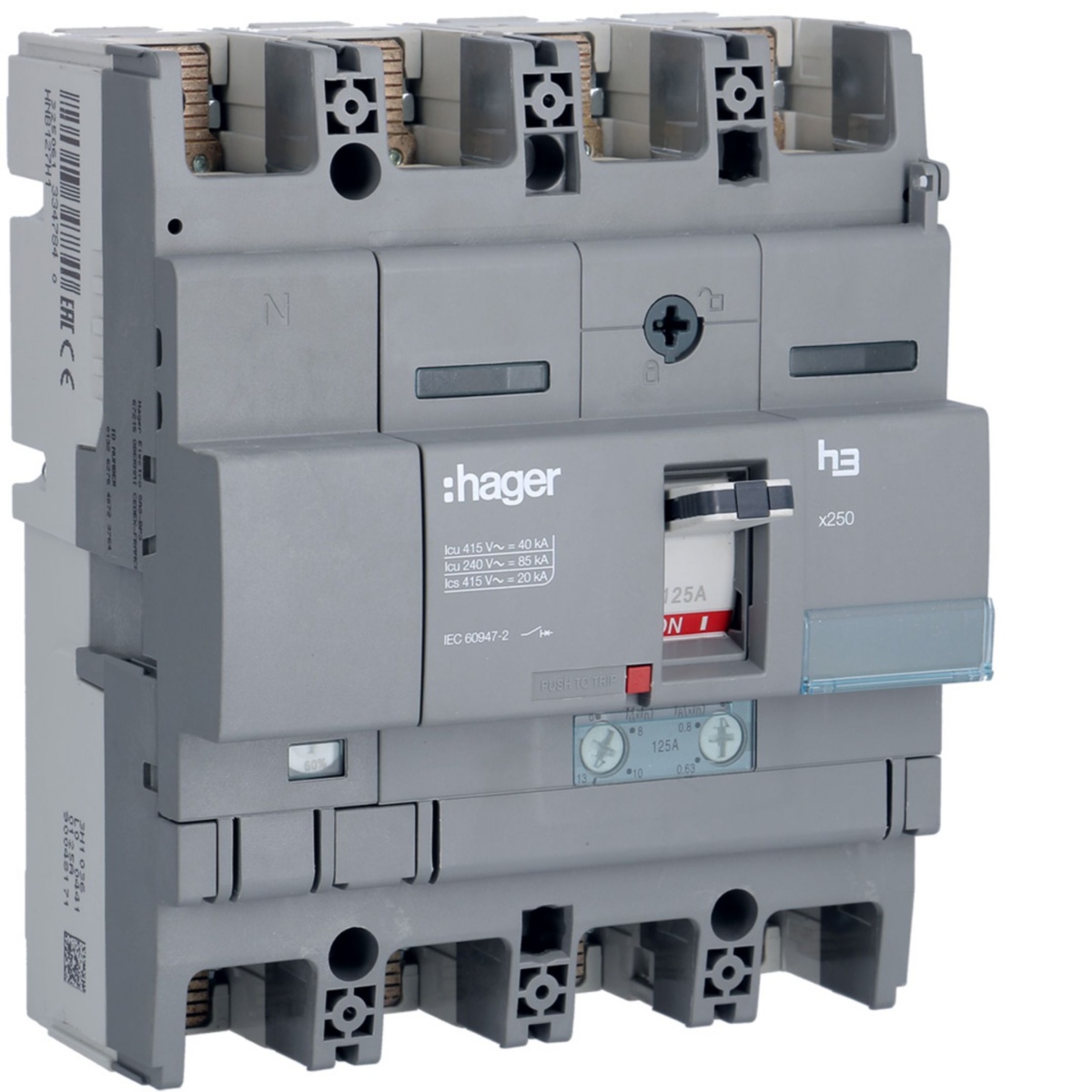

Disj. geral x250 4P3D-3D+N/2 125A 40kA
Cutting and Protection Devices
Disj. geral x250 4P3D-3DN2 125A 40kA
Nortécnica Ref:
71HNB127H
EAN:
3250613347840
Description
Technical Information
Attributes
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
125
With integrated under voltage release
No
Number of poles
4
Overload release current setting
80
125
Número de contatos auxiliares como contato de comutação
0
Rated voltage
220
415
Power loss
27.7
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
No
Corrente nominal de comutação de curto-circuito Icu a 400 V, 50 Hz
40
Adjustment range short-term delayed short-circuit release
0
0
Adjustment range undelayed short-circuit release
750
1625
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
Yes
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
Yes
Complete device with protection unit
Yes
Brands
Hager
Descrição Longa
Disj. geral x250 4P3D-3D+N/2 125A 40kA
