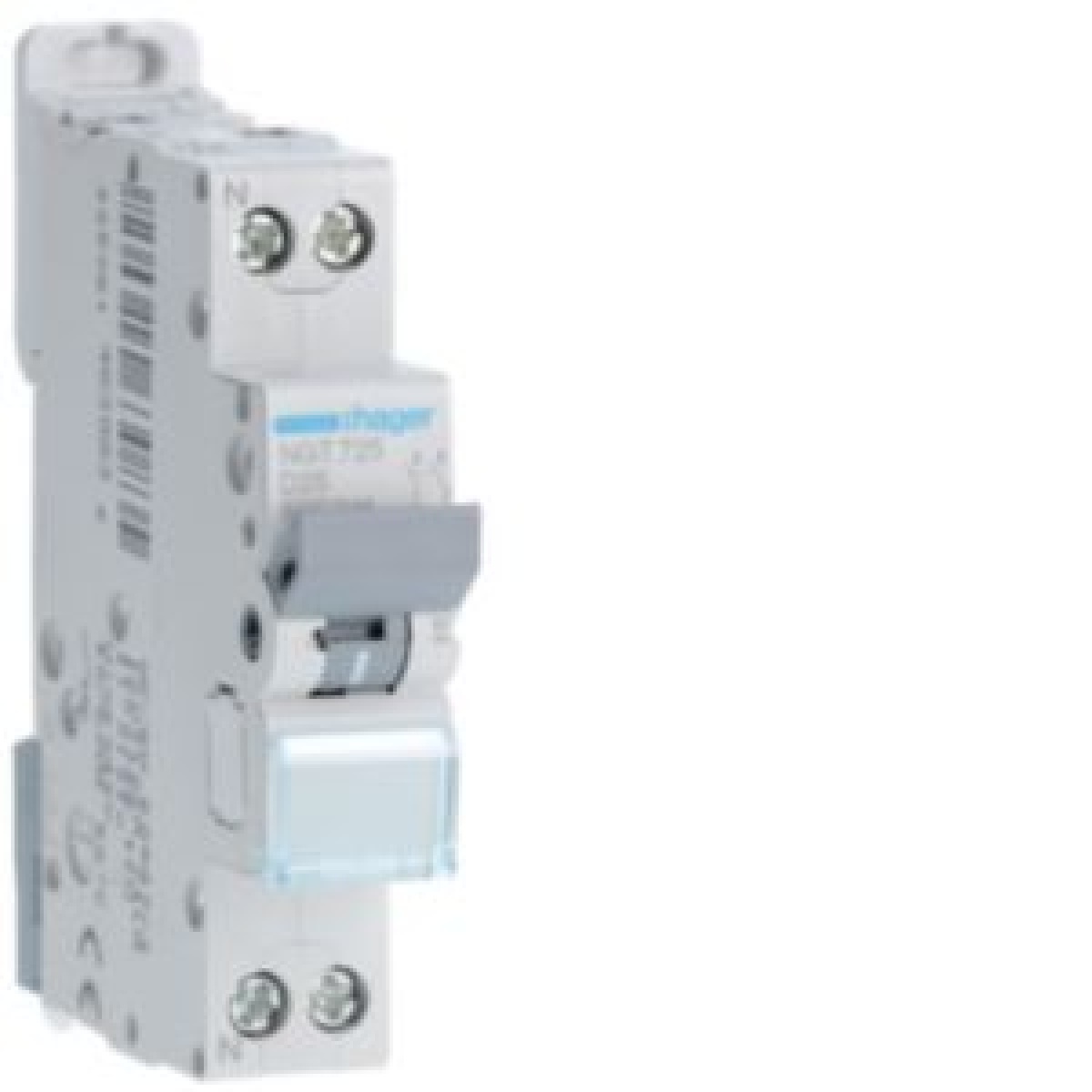

Disjuntor 1P+N 25A D 6/10kA 1M
Cutting and Protection Devices
Disjuntor 1PN 25A D 610kA 1M
Nortécnica Ref:
71NGT725
EAN:
3250614630835
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
70
Rated current
25
EF000228
240
Frequency
50
60
Release characteristic
D
Rated insulation voltage Ui
500
Current limiting class
3
Overvoltage category
3
Pollution degree
3
Width in number of modular spacings
1
Explosion-proof
No
Power loss
4.10
Degree of protection IP
IP20
Number of protected poles
1
Concurrently switching neutral conductor
Yes
Connectable conductor cross section solid-core
0.75
16
Connectable conductor cross section multi-wired
0.75
10
Ambient temperature during operating
-25
60
Flush-mounted installation
Yes
Additional equipment possible
Yes
Number of poles total
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-
Rated impulse withstand voltage Uimp
4
Brands
Hager
Descrição Longa
Disjuntor 1P+N 25A D 6/10kA 1M
