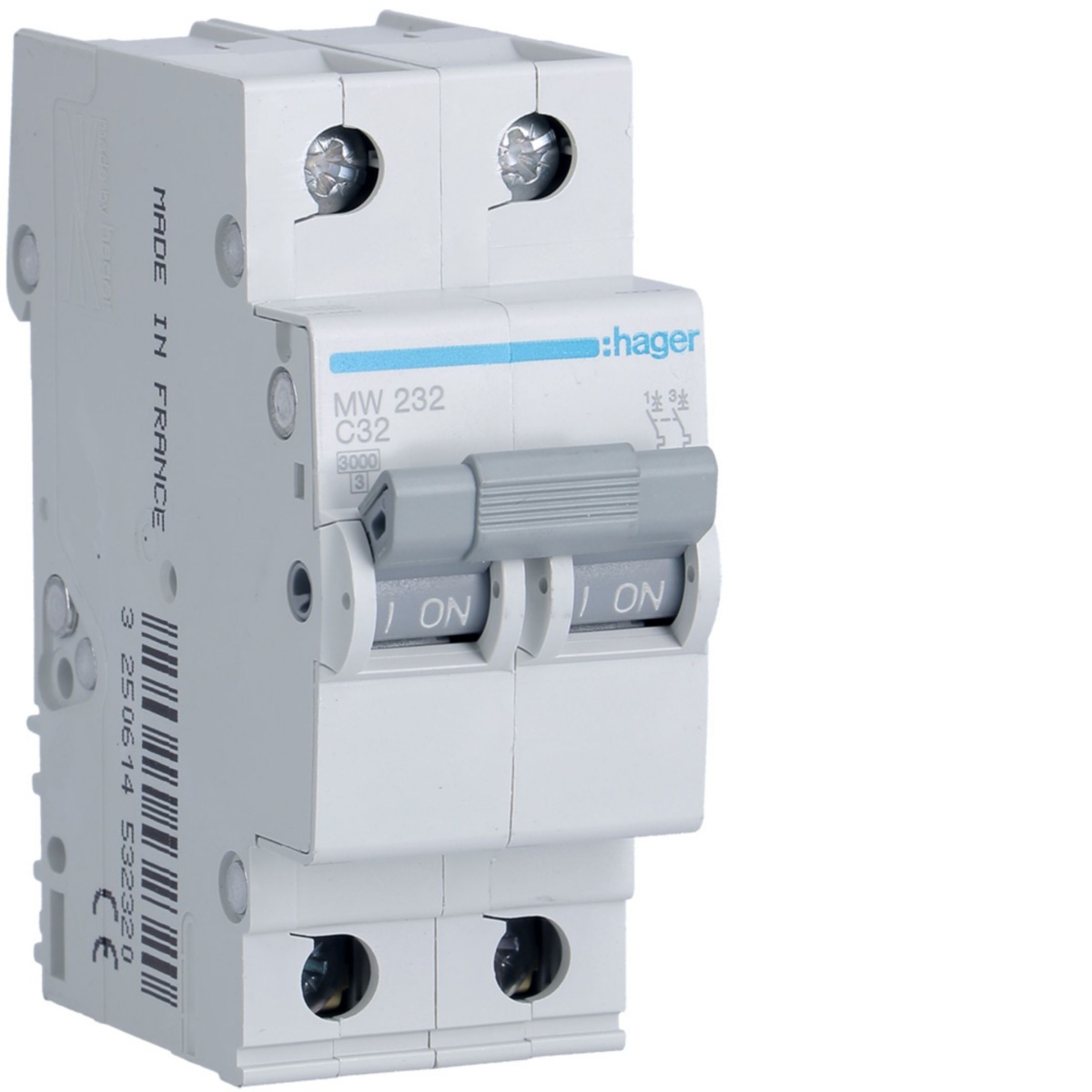

Disjuntor 2P 32A Curva C 3kA 2 Módulos
Cutting and Protection Devices
Disjuntor 2P 32A C 3kA 2M
Nortécnica Ref:
71MW232
EAN:
3250614532320
Description
Technical Information
Attributes
Voltage type
-
Built-in depth
70
Rated current
32
EF000228
400
Frequency
50
60
Release characteristic
C
Rated insulation voltage Ui
500
Current limiting class
3
Overvoltage category
-
Pollution degree
2
Width in number of modular spacings
2
Explosion-proof
No
Power loss
7.30
Degree of protection IP
IP20
Number of protected poles
2
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
1
35
Connectable conductor cross section multi-wired
1
25
Ambient temperature during operating
-25
70
Flush-mounted installation
-
Additional equipment possible
-
Number of poles total
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-
Rated impulse withstand voltage Uimp
4
Brands
Hager
Descrição Longa
Disjuntor 2P 32A Curva C 3kA 2 Módulos
