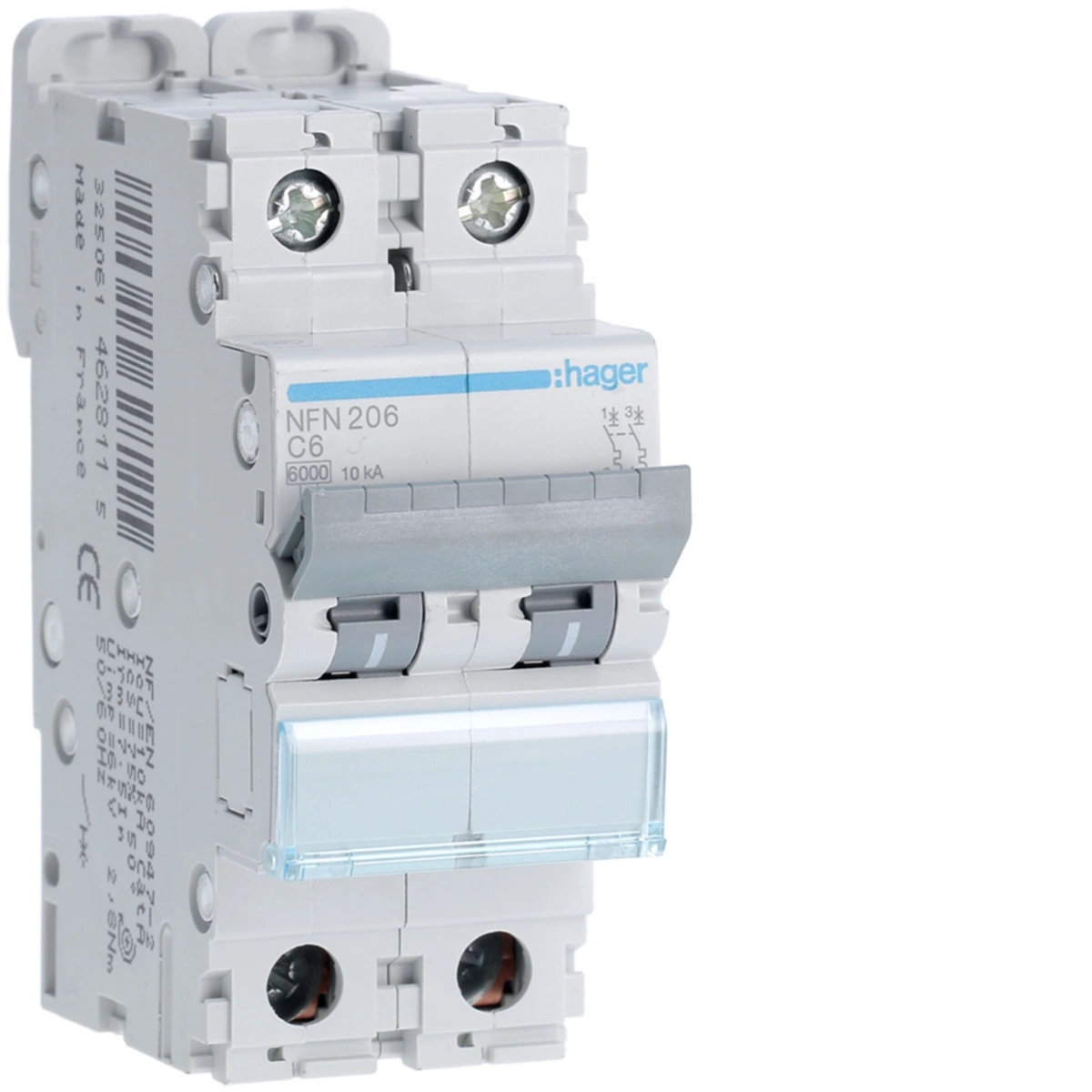

Disjuntor 2 Pólos 6A Curva C 6/10kA 2 Módulos
Cutting and Protection Devices
Disjuntor 2P 6A C 610kA 2M
Nortécnica Ref:
71NFN206
EAN:
3250614628115
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
70
Rated current
6
Rated voltage
400
Frequency
50
60
Release characteristic
C
Rated insulation voltage Ui
500
Current limiting class
3
Overvoltage category
3
Pollution degree
2
Width in number of modular spacings
2
Explosion-proof
No
Power loss
2.68
Degree of protection IP
EV006405
Number of protected poles
2
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
1
35
Connectable conductor cross section multi-wired
1
25
Ambient temperature during operating
-25
70
Flush-mounted installation
Yes
Additional equipment possible
Yes
Number of poles total
2
EF009555
6
EF009556
10
EF009557
20
EF009558
10
Rated impulse withstand voltage Uimp
6
Brands
Hager
