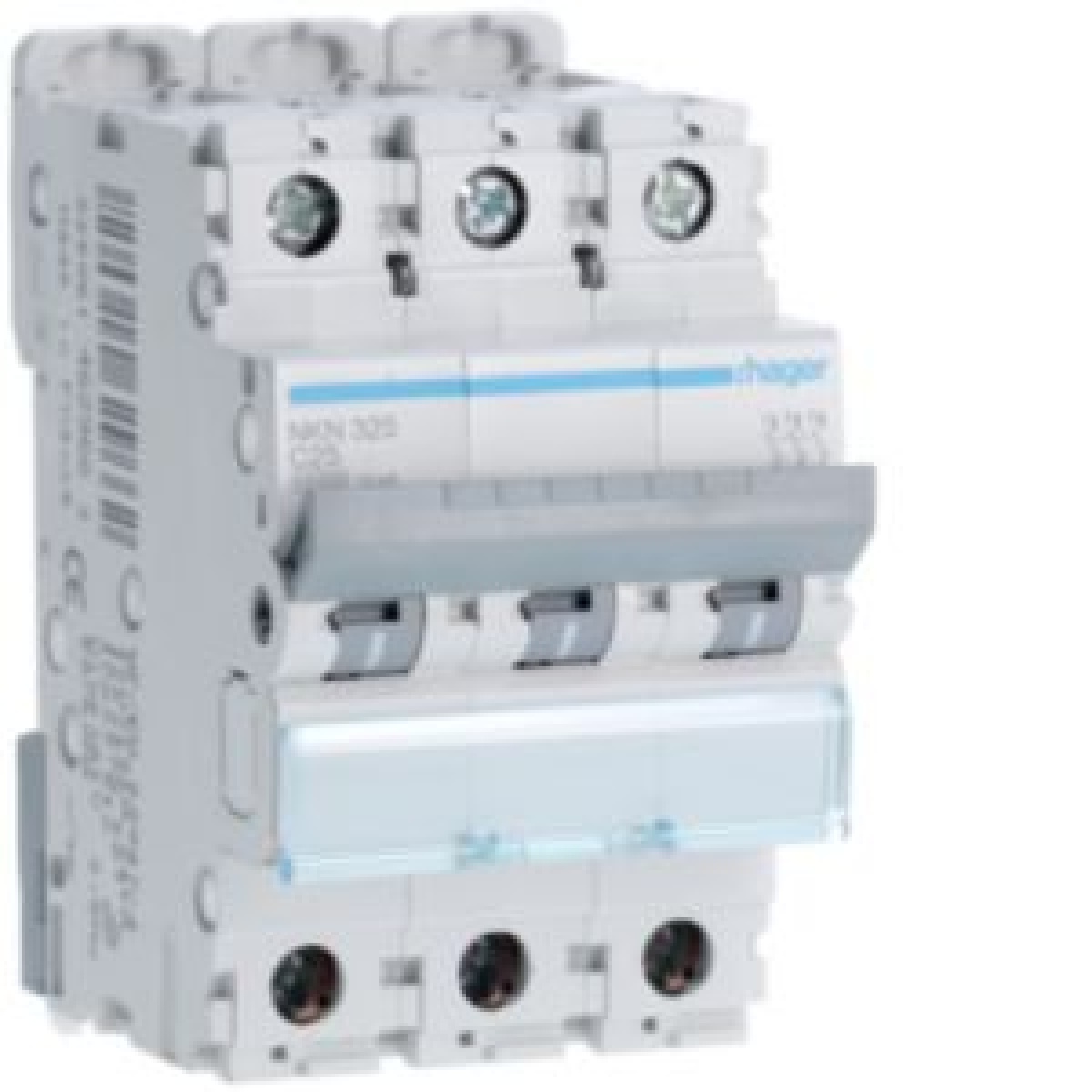

Disjuntor 3 Pólos 25A Curva C 10/15kA 3 Módulos
Cutting and Protection Devices
Disjuntor 3P 25A C 1015kA 3M
Nortécnica Ref:
71NKN325
EAN:
3250614629662
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
70
Rated current
25
EF000228
400
Frequency
50
60
Release characteristic
C
Rated insulation voltage Ui
500
Current limiting class
3
Overvoltage category
3
Pollution degree
2
Width in number of modular spacings
3
Explosion-proof
No
Power loss
11
Degree of protection IP
IP20
Number of protected poles
3
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
1
35
Connectable conductor cross section multi-wired
1
25
Ambient temperature during operating
-25
70
Flush-mounted installation
Yes
Additional equipment possible
Yes
Number of poles total
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
30
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15
Rated impulse withstand voltage Uimp
6
Brands
Hager
Descrição Longa
Disjuntor 3 Pólos 25A Curva C 10/15kA 3 Módulos
