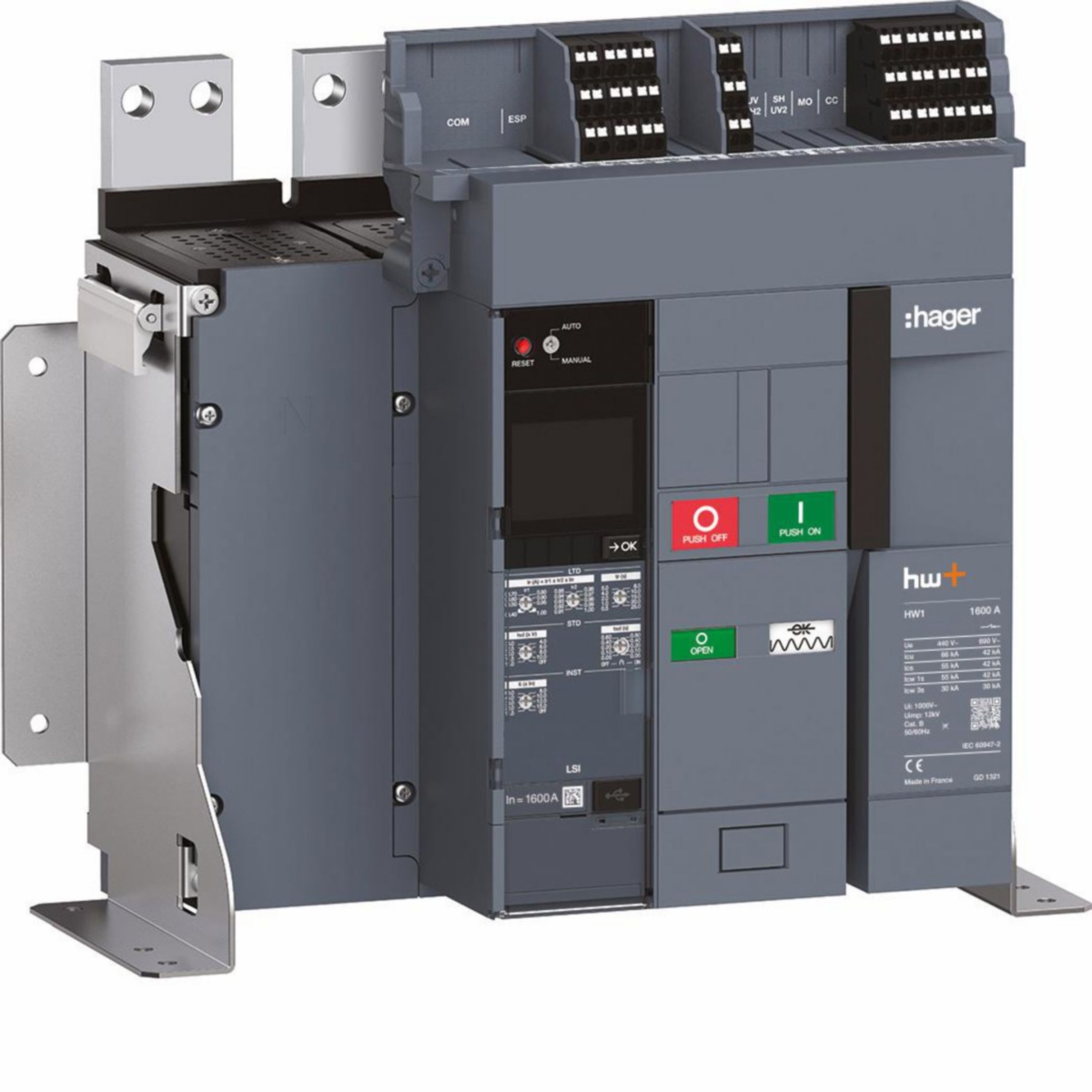

Disjuntor HW1 1600A 4P 55kA LSI FC/FC
Cutting and Protection Devices
Disjuntor HW1 1600A 4P 55kA LSI FCFC
Nortécnica Ref:
EAN:
3250610031537
Description
Technical Information
Attributes
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
1600
With integrated under voltage release
No
Number of poles
4
Overload release current setting
-
Número de contatos auxiliares como contato de comutação
4
Rated voltage
440
690
Power loss
129.60
Degree of protection IP
IP2X
Position of connection for main current circuit
Other
Motor drive integrated
No
Type of electrical connection of main circuit
Rail connection
Type of control element
Push button
With switched-off indicator
Yes
Corrente nominal de comutação de curto-circuito Icu a 400 V, 50 Hz
55
Adjustment range short-term delayed short-circuit release
-
Adjustment range undelayed short-circuit release
-
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
Yes
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
No
Brands
Hager
Descrição Longa
Disjuntor HW1 1600A 4P 55kA LSI FC/FC
