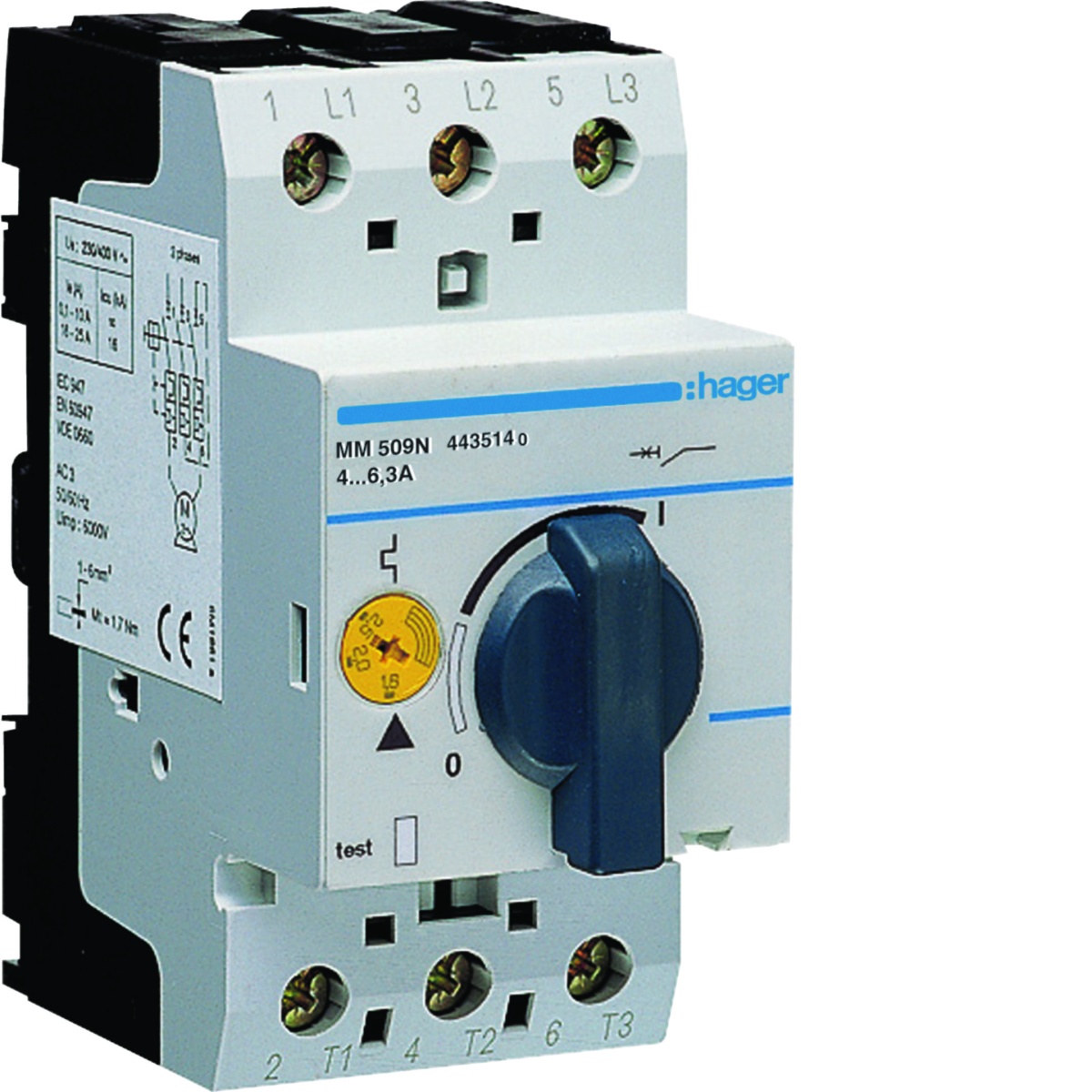

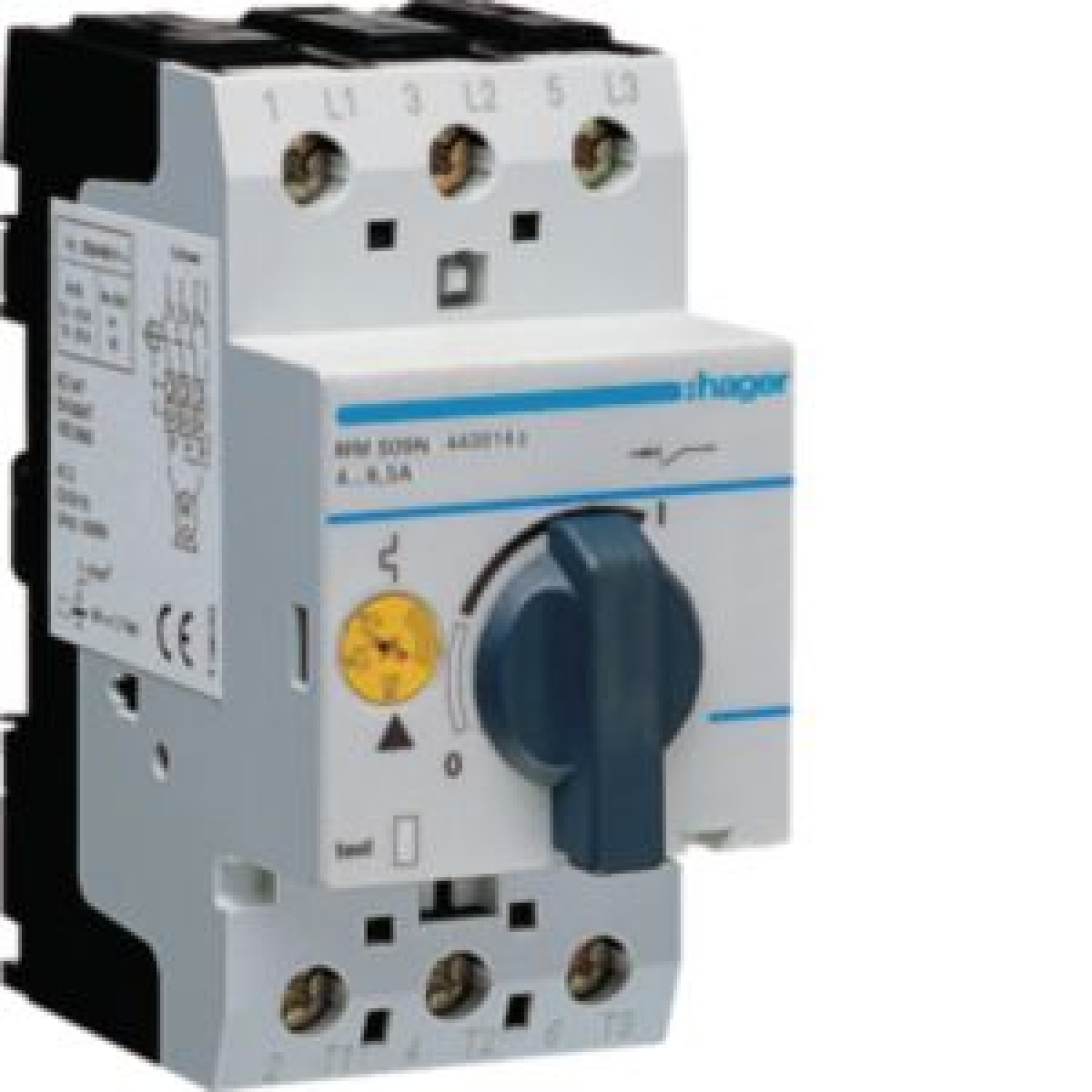

Disjuntor motor 4-6A 2,5M
Cutting and Protection Devices
Disjuntor motor 4-6A 2,5M
Nortécnica Ref:
71MM509N
EAN:
3250614435225
Description
Technical Information
Attributes
Width
45
Height
140
Depth
75
Rated operation power at AC-3, 400 V
2.2
With integrated auxiliary switch
No
Corrente permanente nominal Iu
6.3
With integrated under voltage release
No
Number of poles
3
Rated operating voltage
690
690
Overload release current setting
4
6.3
Power loss
5.68
Degree of protection IP
IP20
With thermal overload protection
Yes
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
Switch off technique
Thermomagnetic
Rated operation power at AC-3, 230 V
1.1
Rated short-circuit breaking capacity Icu at 400 V, AC
150
Adjustment range undelayed short-circuit release
78.1
117.2
Phase failure sensitive
Yes
Device construction
Built-in device fixed built-in technique
Brands
Hager
Descrição Longa
Disjuntor motor 4-6A 2,5M
