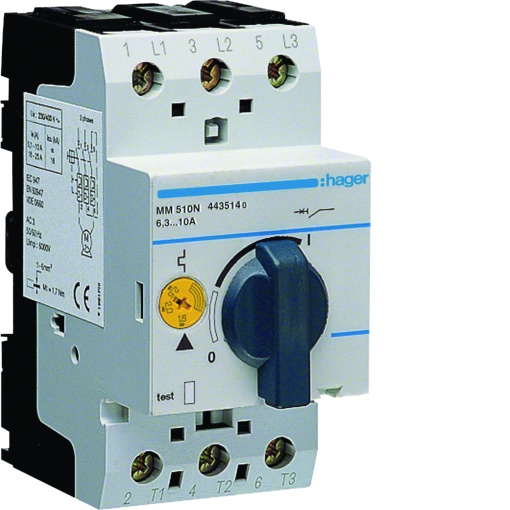

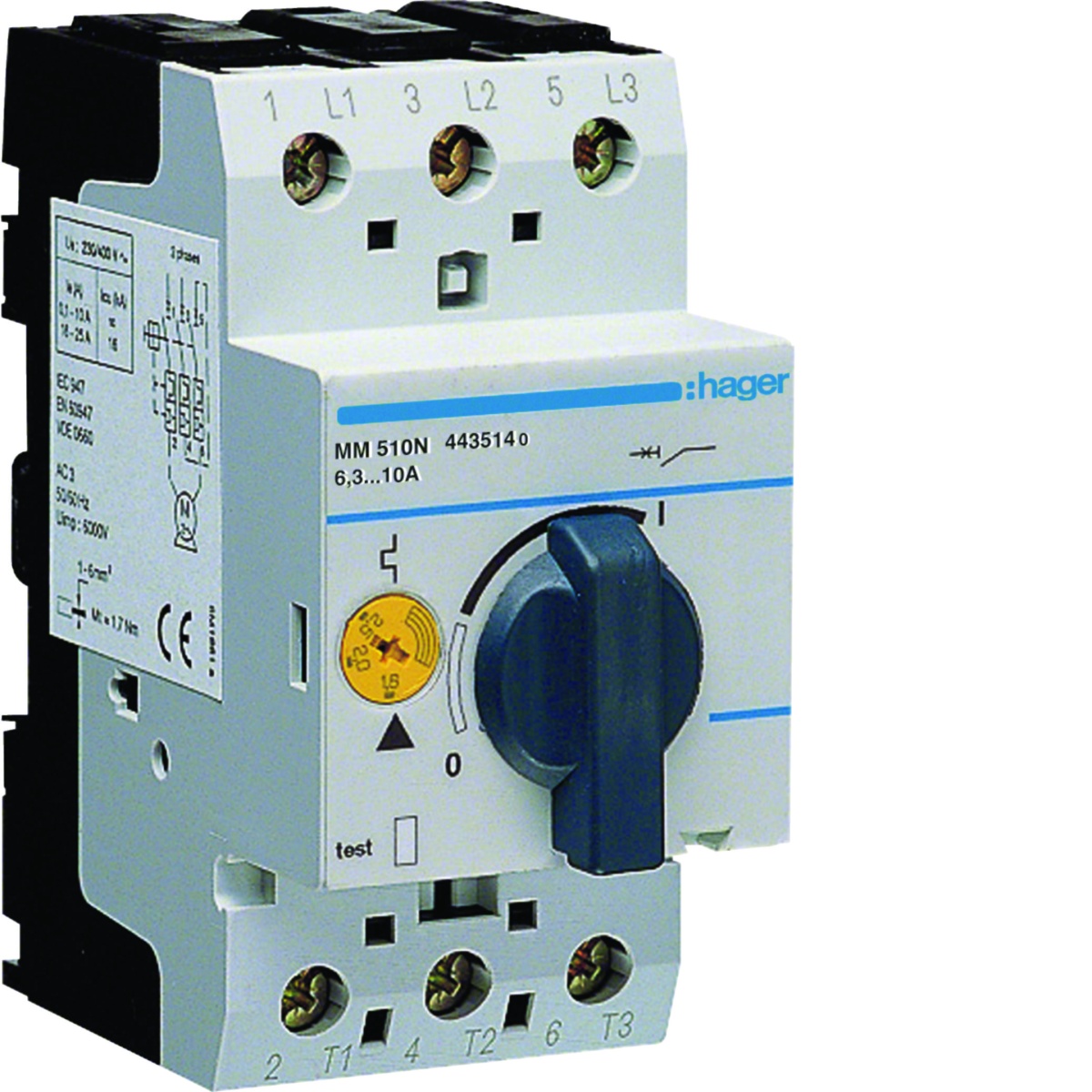

Disjuntor motor 6-10A 2,5M
Cutting and Protection Devices
Disjuntor motor 6-10A 2,5M
Nortécnica Ref:
71MM510N
EAN:
3250614435232
Description
Technical Information
Attributes
Largura
45
Altura
140
Profundidade
75
Rated operation power at AC-3, 400 V
4
With integrated auxiliary switch
No
Corrente permanente nominal Iu
10
With integrated under voltage release
No
Número de polos
3
Rated operating voltage
690
690
Overload release current setting
6.3
10
Potência dissipada
6.48
Degree of protection IP
IP20
With thermal overload protection
Yes
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
Switch off technique
Thermomagnetic
Rated operation power at AC-3, 230 V
2.2
Rated short-circuit breaking capacity Icu at 400 V, AC
150
Adjustment range undelayed short-circuit release
124
186
Phase failure sensitive
Yes
Device construction
Built-in device fixed built-in technique
Brands
Hager
Descrição Longa
Disjuntor motor 6-10A 2,5M
