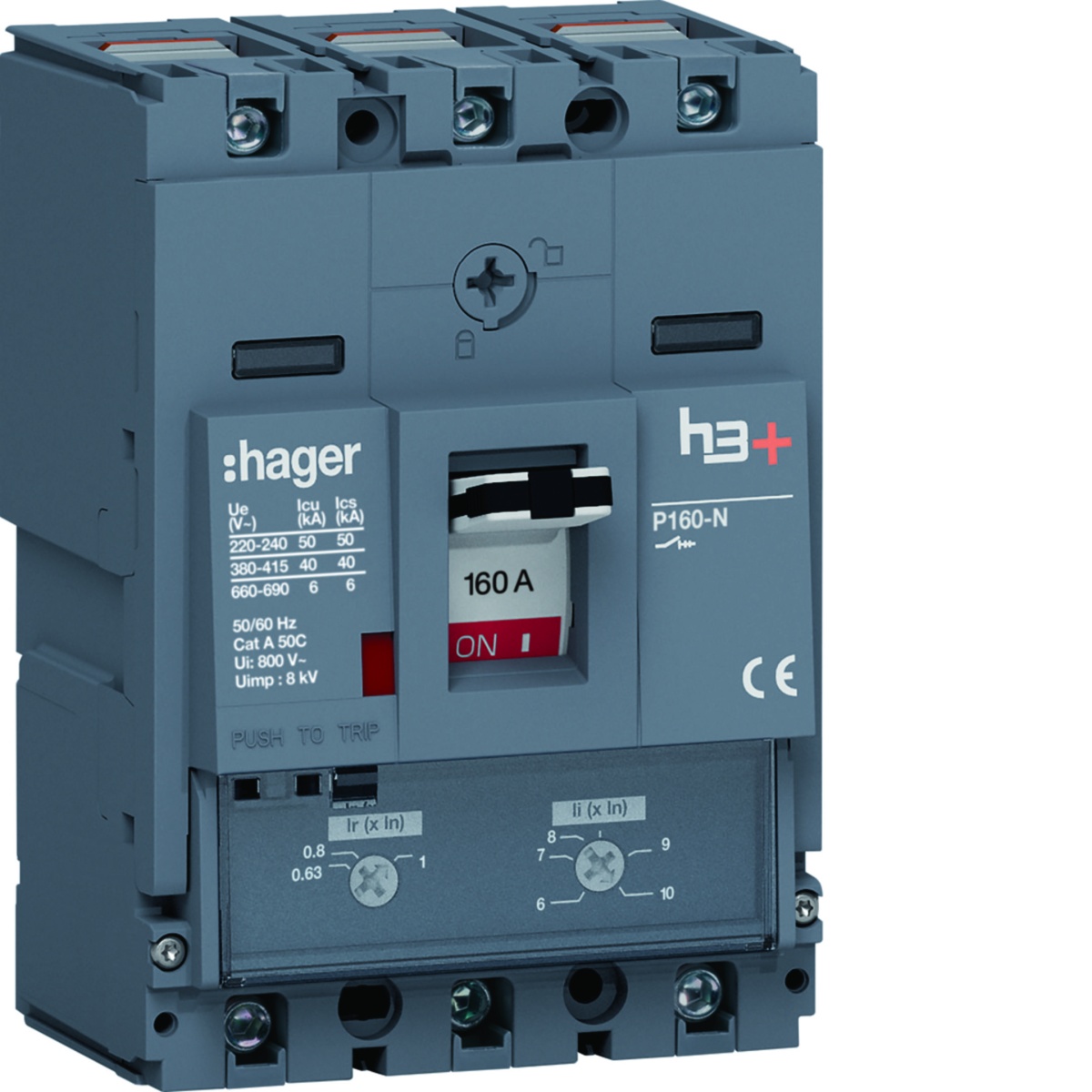

Disjuntor P160 TM 3P-3D 160A 40kA
Cutting and Protection Devices
Disjuntor P160 TM 3P-3D 160A 40kA
Nortécnica Ref:
71HNS160DC
EAN:
3250613177867
Description
Technical Information
Attributes
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
160
With integrated under voltage release
No
Número de polos
3
Overload release current setting
100
160
Número de contatos auxiliares como contato de comutação
0
Rated voltage
220
690
Potência dissipada
42.3
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Corrente nominal de comutação de curto-circuito Icu a 400 V, 50 Hz
40
Adjustment range short-term delayed short-circuit release
-
Adjustment range undelayed short-circuit release
960
1600
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
No
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
Yes
Complete device with protection unit
Yes
Brands
Hager
Descrição Longa
Disjuntor P160 TM 3P-3D 160A 40kA
