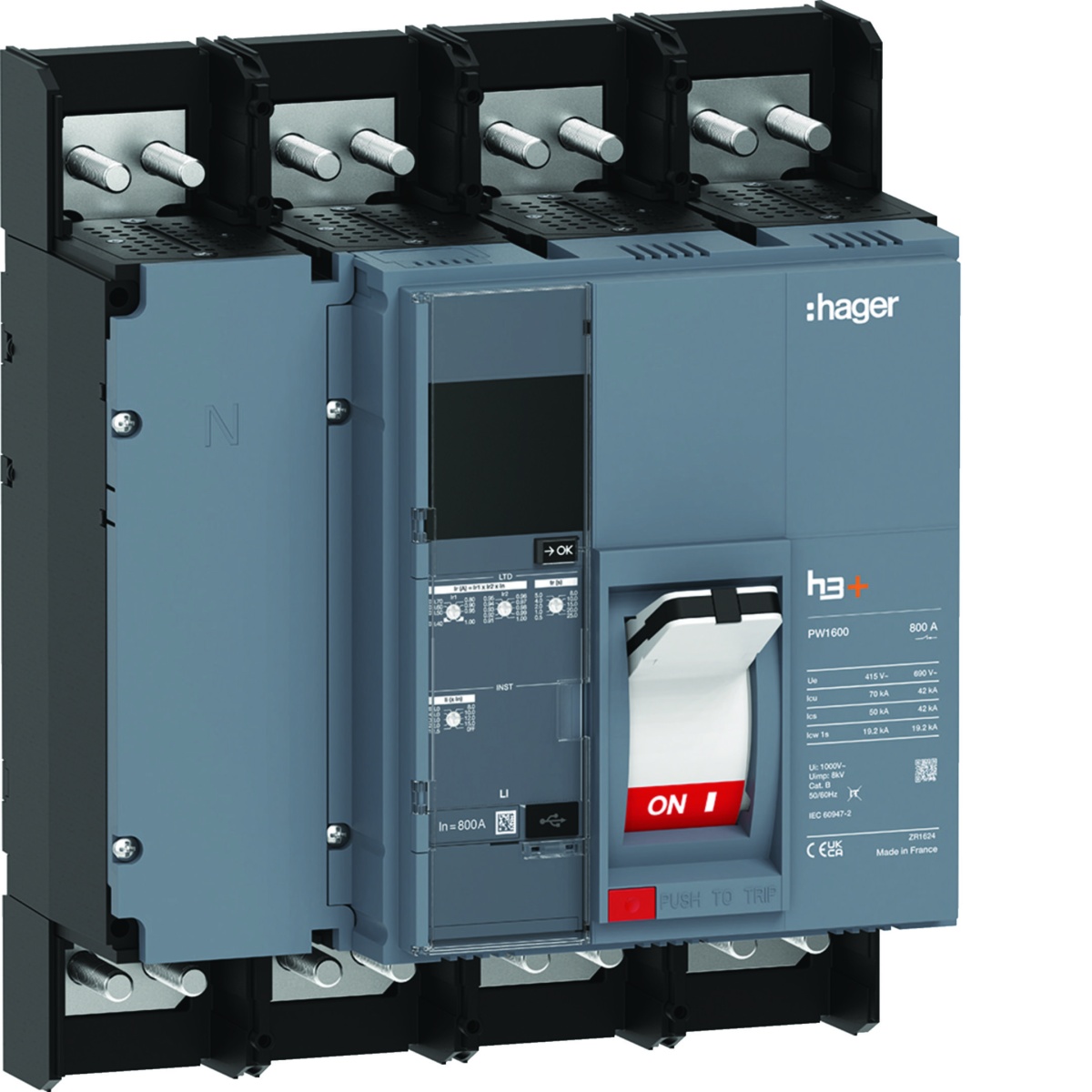

Disjuntor PW1600 LI 4P-4D 800A 70kA
Cutting and Protection Devices
Disjuntor PW1600 LI 4P-4D 800A 70kA
Nortécnica Ref:
EAN:
3250613250744
Description
Technical Information
Attributes
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
800
With integrated under voltage release
No
Number of poles
4
Overload release current setting
-
Número de contatos auxiliares como contato de comutação
0
Rated voltage
220
690
Power loss
23.6
Degree of protection IP
IP20
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Bolt connection
Type of control element
Wing knob
With switched-off indicator
Yes
Corrente nominal de comutação de curto-circuito Icu a 400 V, 50 Hz
70
Adjustment range short-term delayed short-circuit release
-
Adjustment range undelayed short-circuit release
-
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
No
Device construction
Complete device in housing
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
Hager
Long Description
Disjuntor PW1600 LI 4P-4D 800A 70kA
