Disjuntor x160 TM 4 Pólos - 4 Disparadores 125A 18kA referência HDA126L. Os disjuntores e interruptores Hager podem ser facilmente integrados e utilizados nas instalações elétricas dos edifícios, a sua oferta abrangente responde às necessidades em termos de proteção em edifícios comerciais.
Cutting and Protection Devices

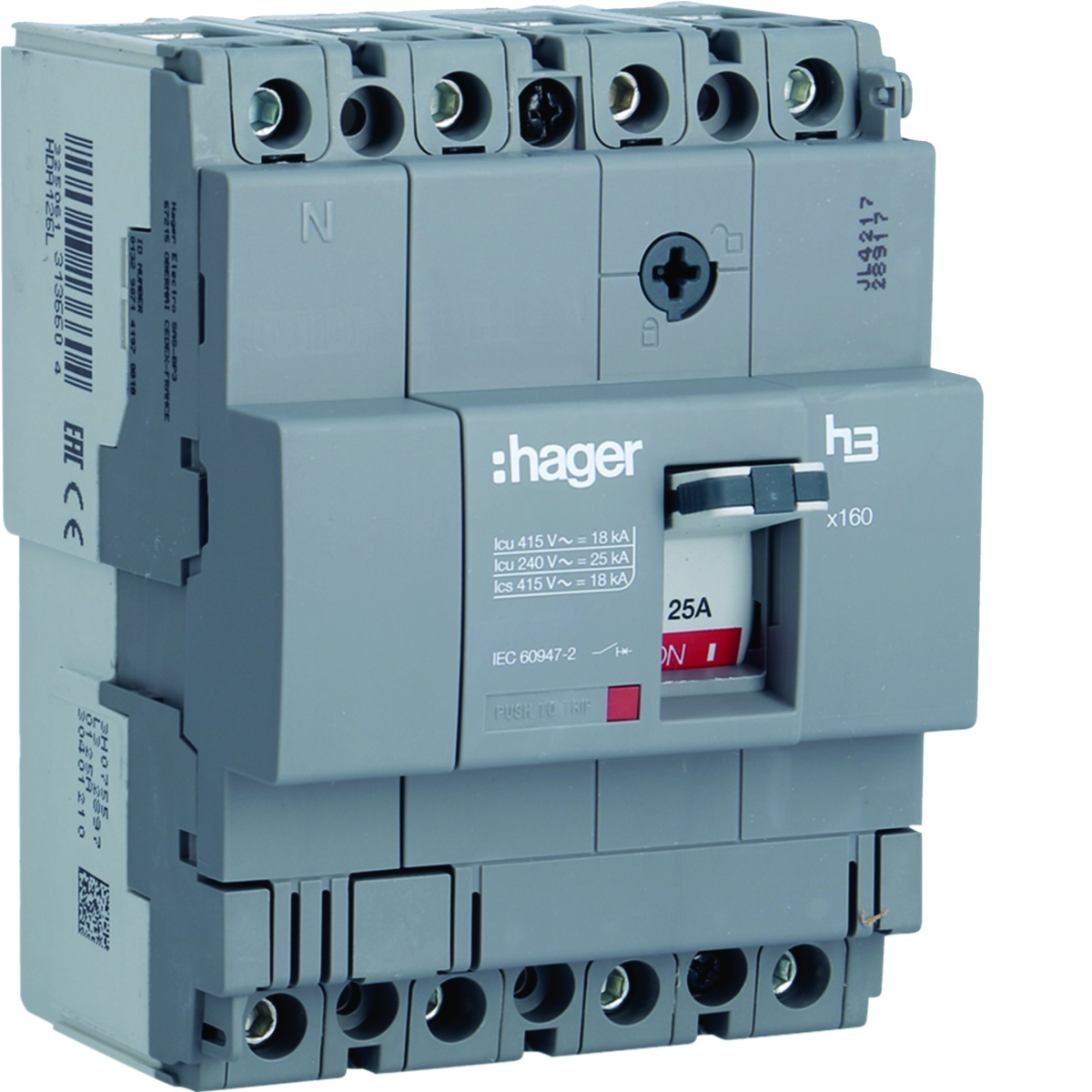

Disjuntor x160 TM 4 Pólos - 4 Disparadores 125A 18kA
Nortécnica Ref:
71HDA126L
EAN:
3250613136604
Description
Technical Information
Attributes
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
125
With integrated under voltage release
No
Number of poles
4
Overload release current setting
125
125
Number of auxiliary contacts as change-over contact
0
Rated voltage
220
415
Potência dissipada
33
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
18
Adjustment range short-term delayed short-circuit release
-
Adjustment range undelayed short-circuit release
1500
1500
Suitable for DIN rail top hat rail mounting
Yes
Integrated earth fault protection
No
Motor drive optional
No
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
Hager
