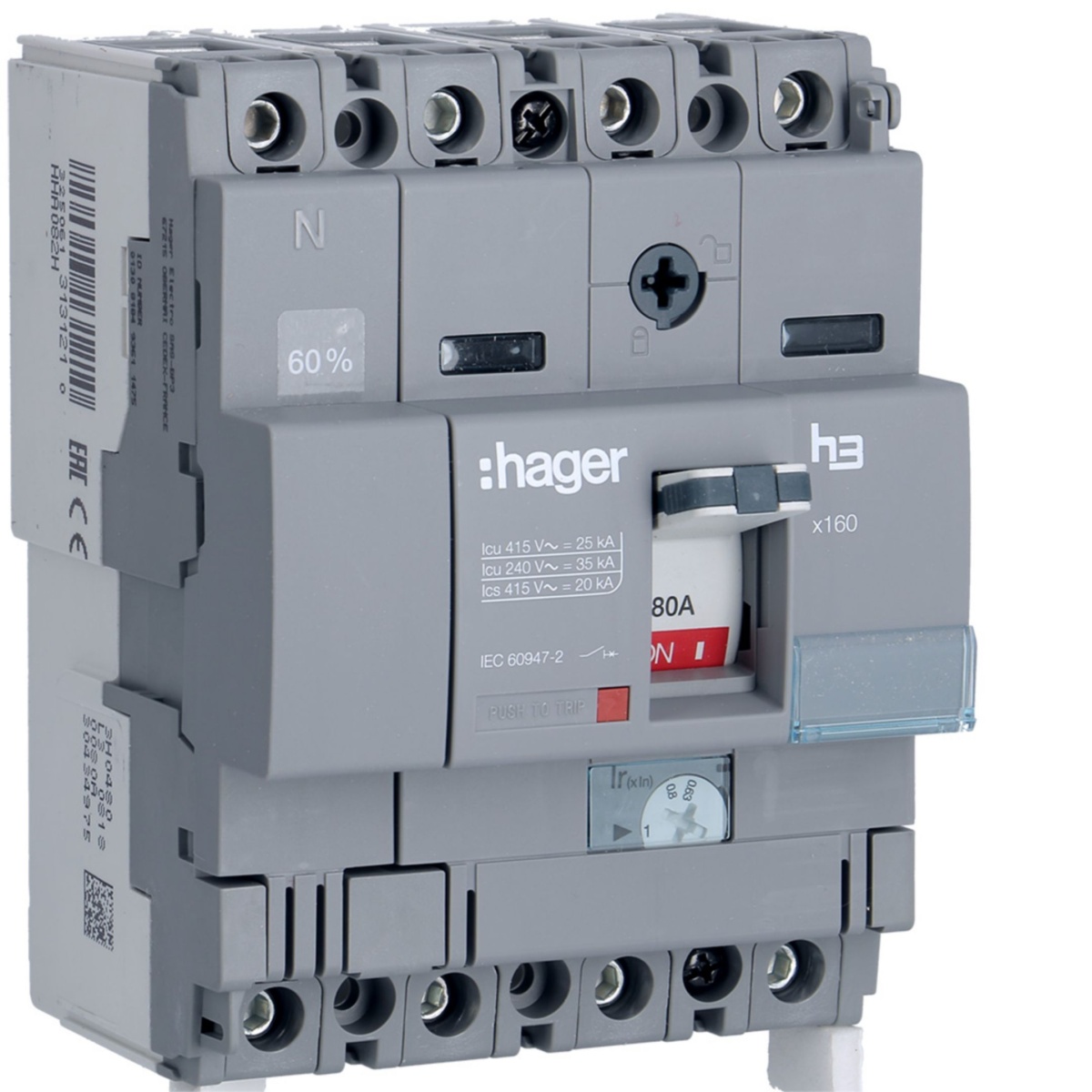

Disjuntor x160 TM 4P-3D+N/2 80A 25kA
Cutting and Protection Devices
Disjuntor x160 TM 4P-3DN2 80A 25kA
Nortécnica Ref:
71HHA082H
EAN:
3250613131210
Description
Technical Information
Attributes
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
80
With integrated under voltage release
No
Number of poles
4
Overload release current setting
50
80
Número de contatos auxiliares como contato de comutação
0
Rated voltage
220
415
Power loss
32.1
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Corrente nominal de comutação de curto-circuito Icu a 400 V, 50 Hz
25
Adjustment range short-term delayed short-circuit release
-
Adjustment range undelayed short-circuit release
1000
1000
Suitable for DIN rail top hat rail mounting
Yes
Integrated earth fault protection
No
Motor drive optional
No
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
Hager
Descrição Longa
Disjuntor x160 TM 4P-3D+N/2 80A 25kA
