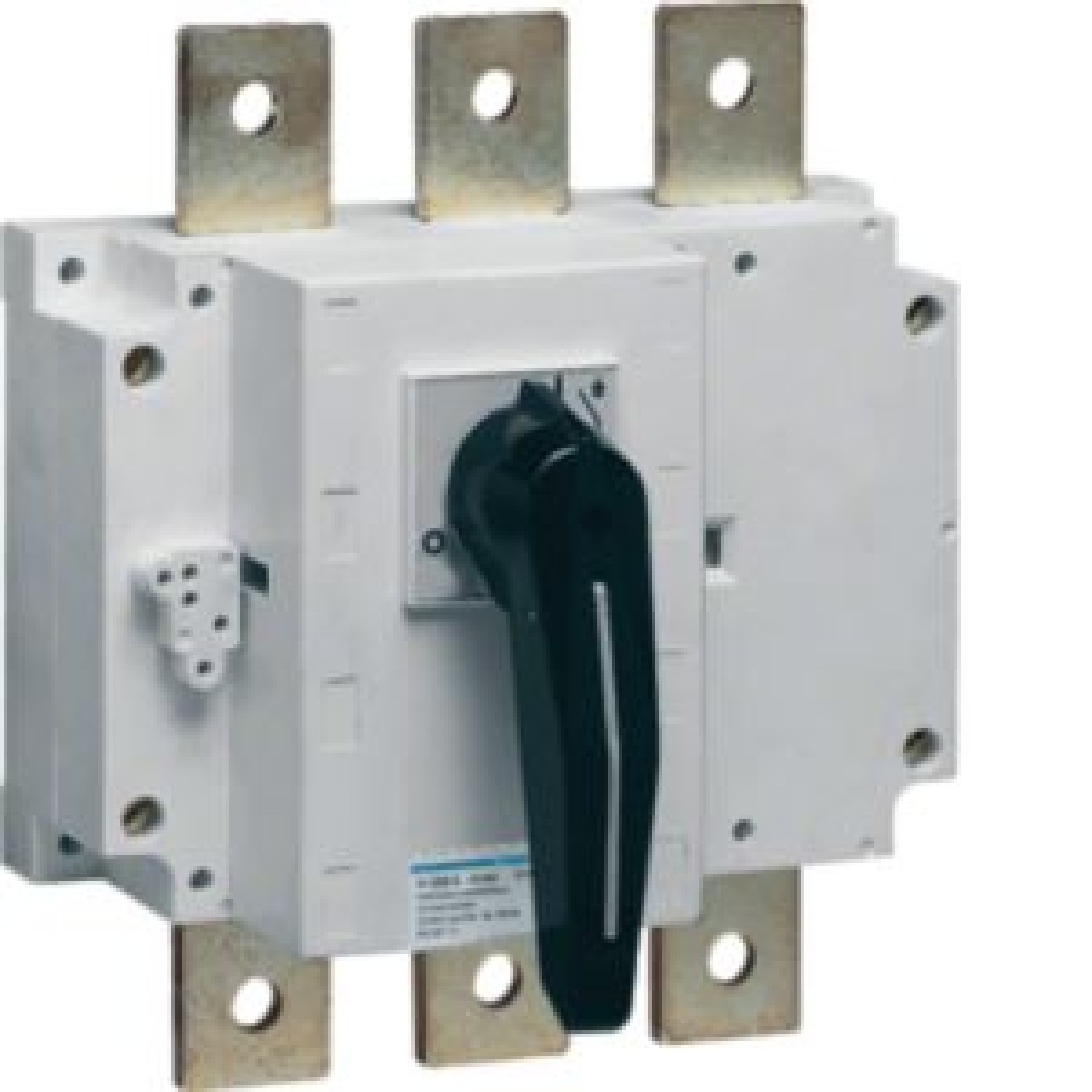

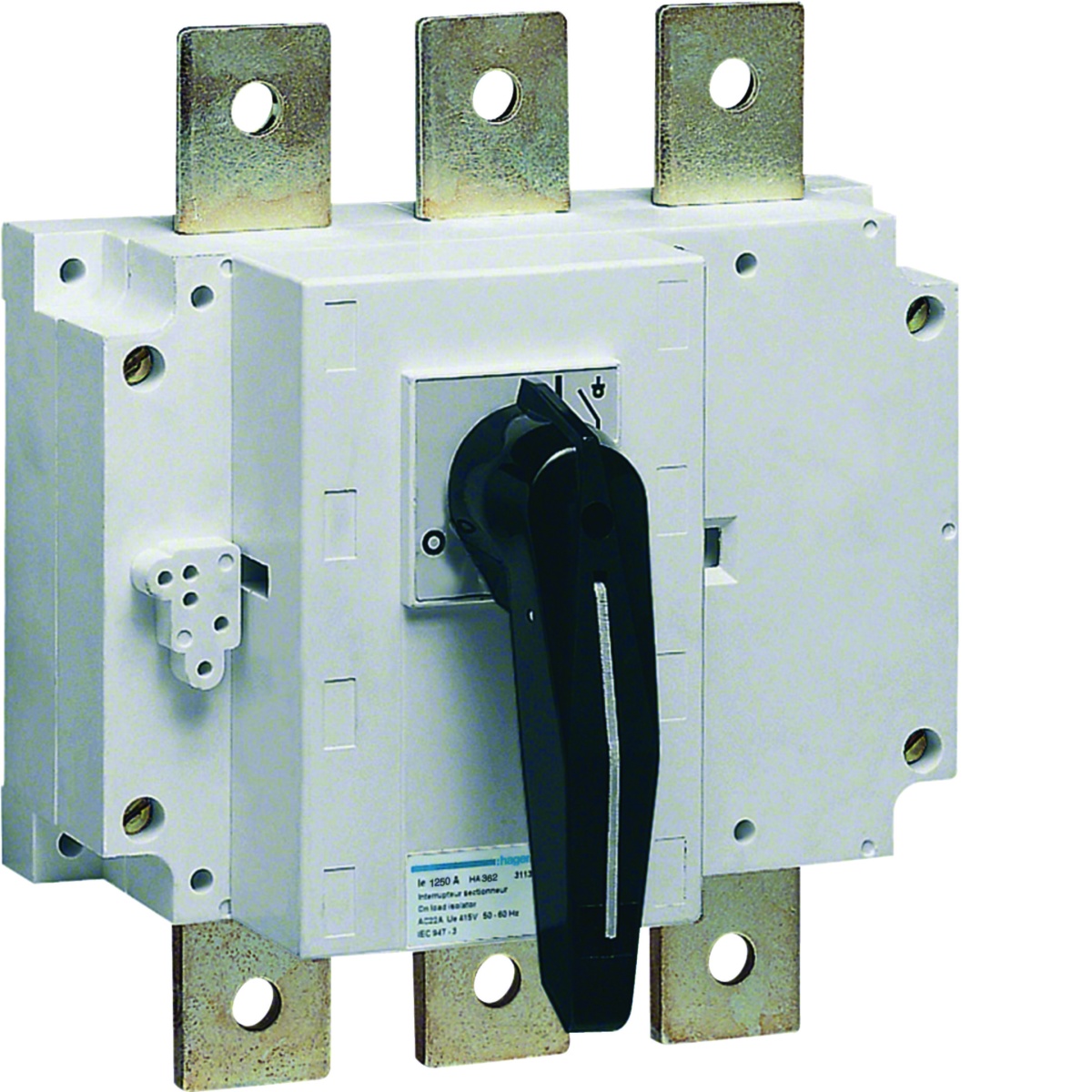

Inter. corte aparente 3P 1250A
Cutting and Protection Devices
Inter. corte aparente 3P 1250A
Nortécnica Ref:
71HA362
EAN:
3250613119683
Description
Technical Information
Attributes
Width
-
Height
-
Depth
-
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
1250
Number of poles
3
Rated operating voltage
380
415
Corrente condicional nominal de curto-circuito Iq
50
Width in number of modular spacings
-
Degree of protection IP, front side
IP00
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Cable clamp
Version as emergency stop installation
No
Type of control element
Long rotary handle
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
562
Corrente nominal suportável lcw atual
50
Colour control element
Black
EF007243
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
415
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
1250
Switching power at 400 V
822
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
1000
Degree of protection NEMA
Other
With pre-assembled cabling
No
Brands
Hager
Descrição Longa
Inter. corte aparente 3P 1250A
